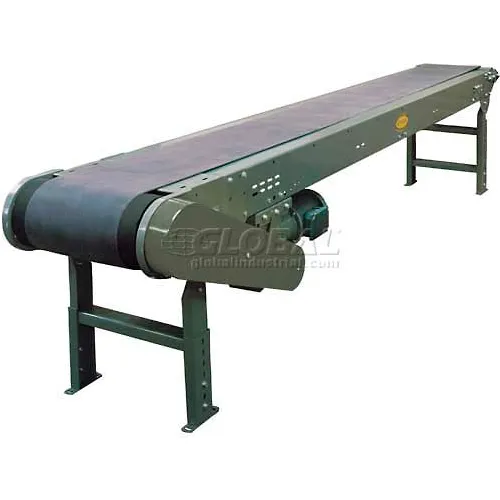

Hytrol® Model TL 17'1"L Heavy Duty Slider Bed Conveyor 17-1-TL42 - 36"W Belt

Hytrol . 17-1-TL42

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHytrol
CategoryL1Material Handling
CategoryL2Conveyors
CategoryL3Belt Conveyors
KnownMan, Extra Product NameHytrol® Model TL 17'1"L Heavy Duty Slider Bed Conveyor 17-1-TL42 - 36"W Belt
extendedLead24
extendedQty-2
jsonUrlData30918684
moq, multiple, tierMinQty11
MPN17-1-TL42
qtyInStockShips in 14 Business Days
SKUWBB918684
snippetStandard specifications include:<br><br> BED - 6-5/8" deep x 12 ga. formed steel Slider Bed is powder coat painted. Reinforced with 3/4" pipe which forms sockets for guard rails.<br><br> BELT - Ultimate 140BBS - Nitrile Belt<br><br> END DRIVE - Located on discharge end of conveyor, chain guard on left hand side.<br><br> DRIVE PULLEY - 8" dia. with 1-3/16" dia. shaft at bearings, machine crowned and fully lagged.<br><br> TAIL PULLEY - 6" dia. with 1-3/16" dia. shaft at bearings, machine crowned.<br><br> SNUB IDLER - Adjustable 2-1/8" dia. for tail end; 2-1/2" dia. for drive end. Pre-lubricated ball bearings. Guards included.<br><br> RETURN IDLER - Adjustable 1.9" dia. pre-lubricated ball bearings.<br><br> TAKE-UP - Take-ups at tail pulley. Provides 4" of belt take-up.<br><br> BEARINGS - Sealed, pre-lubricated, self-aligning, ball bearings on drive and tail pulleys.<br><br> MOTOR - 1 HP 115 - 1 Phase - 60 Hz. Premium Energy Efficient C-Face.<br><br> SPEED REDUCTION - Sealed worm gear C-Face speed reducer. No. 50 roller chain to drive pulley.<br><br> BELT SPEED - Constant 65 FPM.<br><br> CAPACITY - Maximum Load per Linear Foot of conveyor is 100 lbs.<br><br> <b>Note:</b> Floor supports are not included; please order separately.<br><br><b>This product is non-cancelable and non-returnable.</b><br><br>
tierPrice17409

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Global IndustrialWBB9186841Ships in 14 Business Days11 @ $7409.00
National Supply NetworkB9186841-211 @ $8149.90
ZoroG7057369731111 @ $12882.98
