PoE splitter.48VDC 802.3af PoE input, 9VDC @ 1.3A output, 12W, 5.5x2.1 connector
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G4583156 | 1 | 1 | 1 | 1 @ $43.75 |
| 17047364 | 1 | 44 | 1 | 1 @ $42.85 | |
 Zoro | G403918527 | 1 | 1 | 1 @ $666.42 | |
 unbeatablesale.com | TYCN168 | 1 | -2 | 1 | 1 @ $40.46 |
 PCNation | 7521AY | 1 | In Stock | 1 | 1 @ $40.42 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

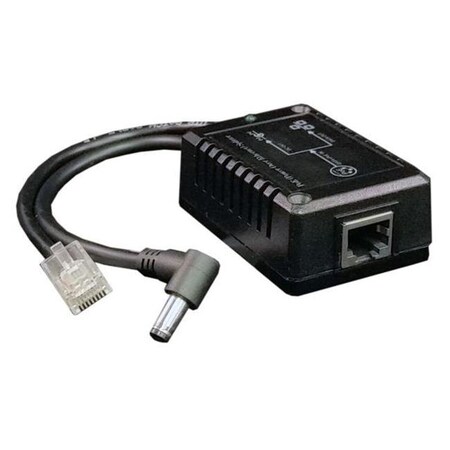

Tycon Systems POE-MSPLT-4809 POE Splitter - 9V DC 12W
Brand: Tycon Power
POE-MSPLT-4809 is a 10/100Mb splitter to power a non PoE device using PoE. It has an 802.3af/at or 48VDC Passive PoE input. The 12W DC output is via a standard 5.5mm/2.1mm barrel connector on a 6in cable. Data output is thru a 6in CAT5 cable terminated with an RJ45 connector. These PoE splitters are the perfect solution for running 9VDC devices like switches and sensors from a 802.3af or 802.3at or 48VDC Passive PoE source. Wide -25 to +50C temperature range enables outdoor applications when mounted in weatherproof enclosures. Inputs and outputs are isolated. They have protections for short circuit and over-current. Product Type: PoE Splitter Product Type: PoE Splitter Input Voltage: 48 V DC Manufacturer Part Number: POE-MSPLT-4809 Limited Warranty: 1 Year Weight (Approximate): 2.19 oz Certifications & Standards: IEEE 802.3af IEEE 802.3at FCC Class B NE55022 Class B Length: 2.6 Manufacturer: Tycon Power Systems Product Name: 802.3af PoE Splitter, 9VDC 12W Output Protection Type: Over Current Protection Type: Short Circuit Brand Name: Tycon Power Output Ports: 1 x 10/100Base-T Product Series: POE-MSPLT Brand Name: Tycon Power Input Ports: 1 x PoE Output Ports: 1 x 10/100Base-T Height: 1 Width: 1.8 Maximum Output Current: 1.30 A Maximum Output Power: 12 W Maximum Output Voltage: 9 V DC
Details
- Converts an Active PoE Input to a DC output
- Various Output Voltages and USB Available
- Output Power Up To 15W
- Short Circuit, Over Current Protection
Listing
| Binding | Electronics |
|---|---|
| Product group | CE |
| Product type | NETWORK_SWITCH |
| Model | POE-MSPLT-4809 |
| Part number | POE-MSPLT-4809 |
| Items per pack | 1 |
| Label | Tycon Power Systems |
| Manufacturer | Tycon Power Systems |
TYCON SYSTEMS, INC POE Splitter.48VDC 802.3AF POE Input, 9V
Brand: TYCON SYSTEMS, INC
POE-MSPLT-4809 is a 10/100Mb splitter to power a non-POE device using POE. It has an 802.3af/at or 48VDC Passive PoE input. The 12W DC output is via a standard 5.5mm/2.1mm barrel connector on a 6in cable. Data output is thru a 6in CAT5 cable terminated with an RJ45 connector. These POE splitters are the perfect solution for running 9VDC devices like switches and sensors from a 802.3af or 802.3at or 48VDC Passive POE source. Wide -25 to +50C temperature range enables outdoor applications when mounted in weatherproof enclosures. Inputs and outputs are isolated. They have protections for short circuit and over-current.
Details
- Converts an Active PoE Input to a DC output
- Various Output Voltages and USB Available
- Output Power Up To 15W
Listing
| Product group | CE |
|---|---|
| Product type | NETWORK_SWITCH |
| Part number | POE-MSPLT-4809 |
| Label | TYCON SYSTEMS, INC |
| Manufacturer | TYCON SYSTEMS, INC |
POE-MSPLT-4809 - PoE Splitter, 48V 802.3at or Passive PoE Input, 9V and Data Output, 12W
Brand: Tycon Power
PoE Splitter provides 12W 9VDC from any standard PoE source. Compatible with 802.3af/at and 48VDC passive PoE sources. Compact Size.
Details
- 802.3af/at PoE Input
- 9VDC 12W out
- 10/100MB
- Compact Size
- Low Cost
Listing
| Product group | CE |
|---|---|
| Product type | NETWORK_INTERFACE_CONTROLLER_ADAPTER |
| Model | POE-MSPLT-4809 |
| Part number | POE-MSPLT-4809 |
| Items per pack | 1 |
| Label | Tycon Systems Inc. |
| Manufacturer | Tycon Systems Inc. |
