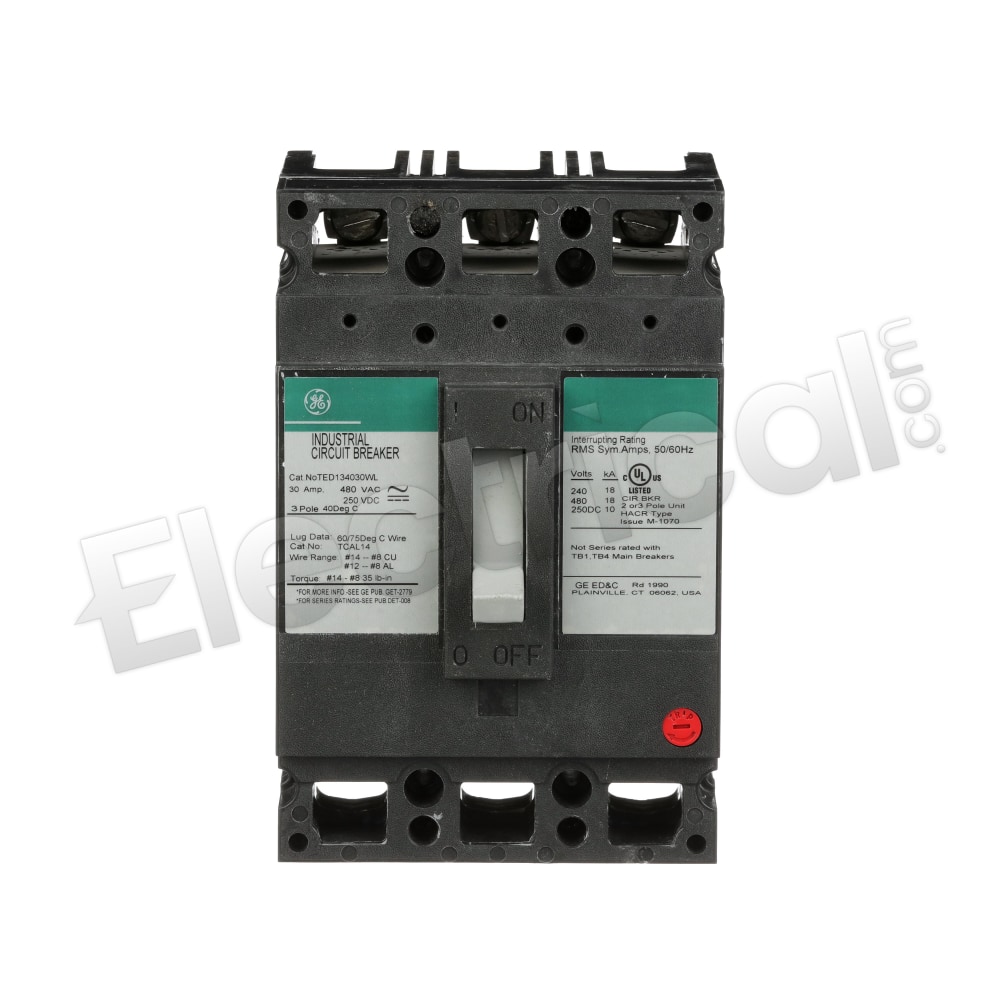

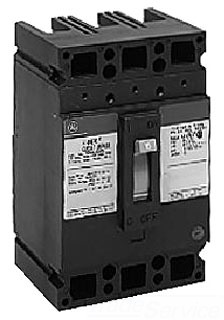

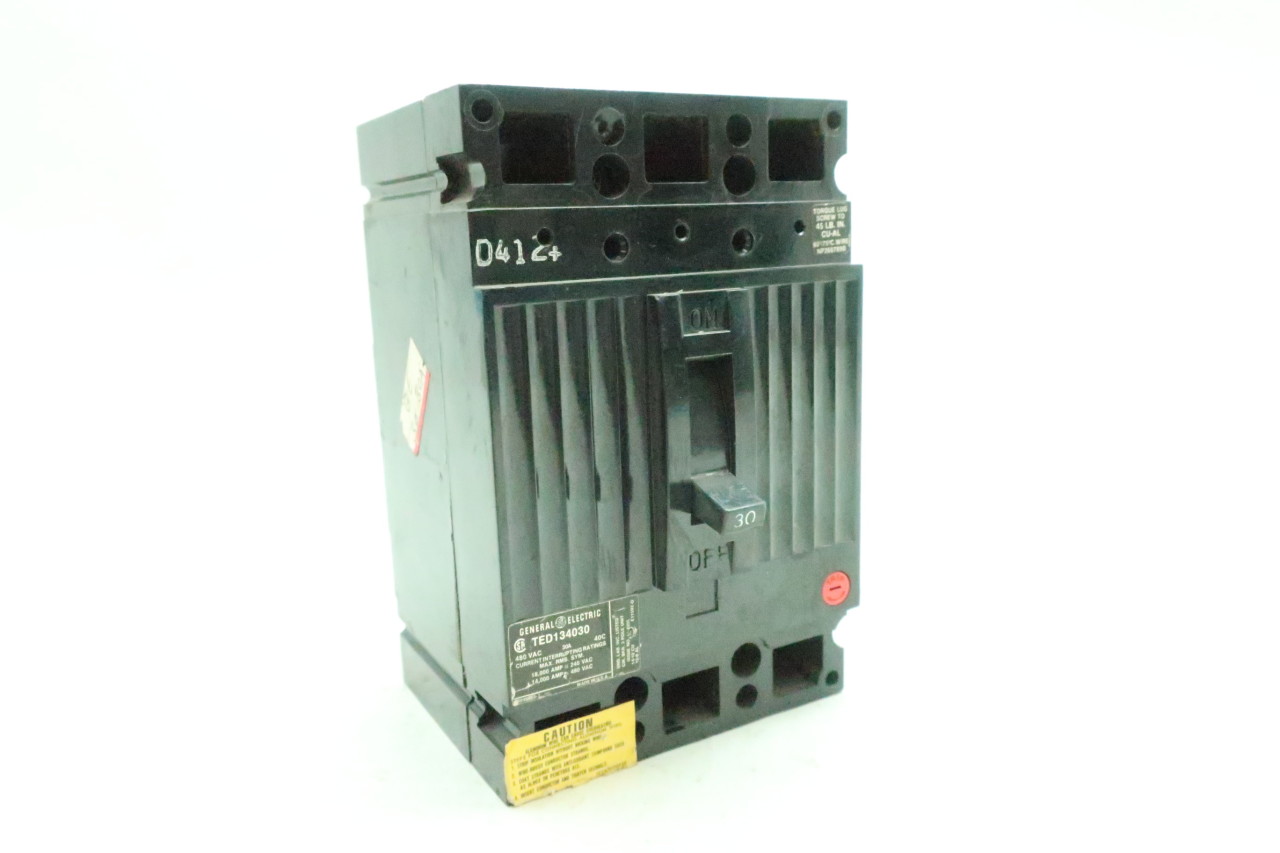

Ge 3 Pole 480Vac 30A Breaker - TED134030

PN: TED134030 <br /><br />General Electric <br /><br /> Circuit Breaker <br /> 30Amp <br /> 3 Pole <br /> 480Vac 250Vdc <br /> 40&deg;C <br /><br /> Interrupting Rating Rmy Sym Amps. 50/60Hz <br /><br /> Volts kA <br /> 240 18 <br /> 480 14 <br /> 250Dc 10 <br /><br /><br /><br />

TED134030 MOLDED CASE, THERMAL MAGNETIC TYPE; 4 1/8 INCH W X 3 3/8 INCH D X 6 5/16 INCH H SIZE; 480 V MAX. AC VOLTAGE RATING; 500 V MAX. DC VOLTAGE RATING; 240/480 VAC, 500 VDC VOLTAGE RATING; 18 KILOAMPERE AT 240/480 VAC, 10 KILOAMPERE AT 500 VDC INTERRUPTING RATING; 30 AMPERE CURRENT RATING; 3 POLE(S); ALUMINUM/COPPER LOAD LUG TERMINAL TYPE; E FRAME TYPE; TED MODEL

The Circuit Breaker type is a TED The Manufacturer is General Electric The Cat. No. is TED134030 or TED134030WL It is also called TED-330 The maximum voltage is 480 Volt The Amperage is 30 Amps This is a 3 Pole Circuit Breaker The TED circuit Breaker is used for Power Distribution The model type is TED It is a Thermal Magnetic Circuit Breaker The ITE TED Circuit Breakers are made from 15 to 150 Amp. They are very high quality as you would expect from General Electric . These are Bolt on type, 480 Volt and have an interrupting capacity of 14,000 @ 480 Volt
