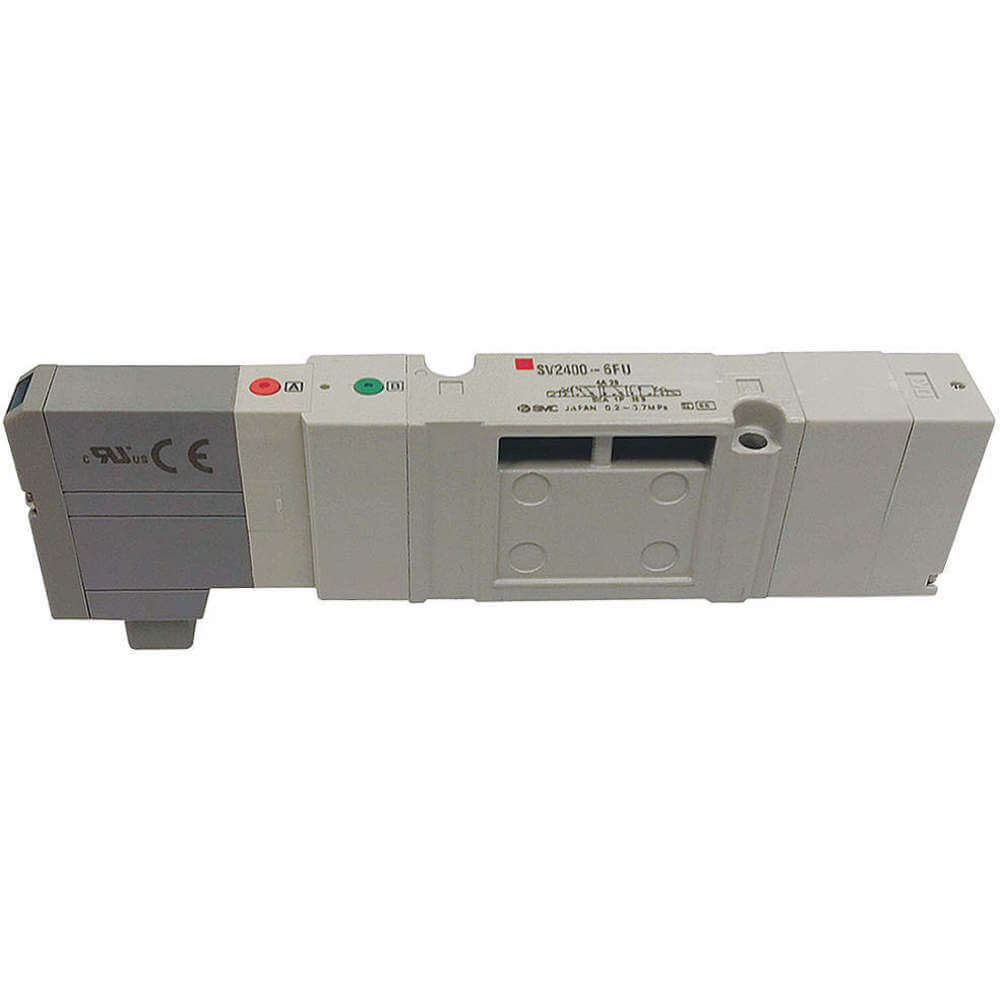

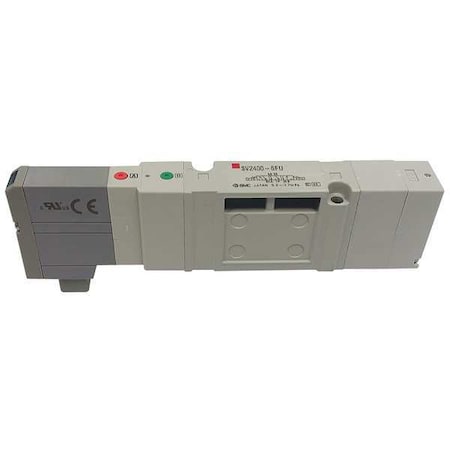

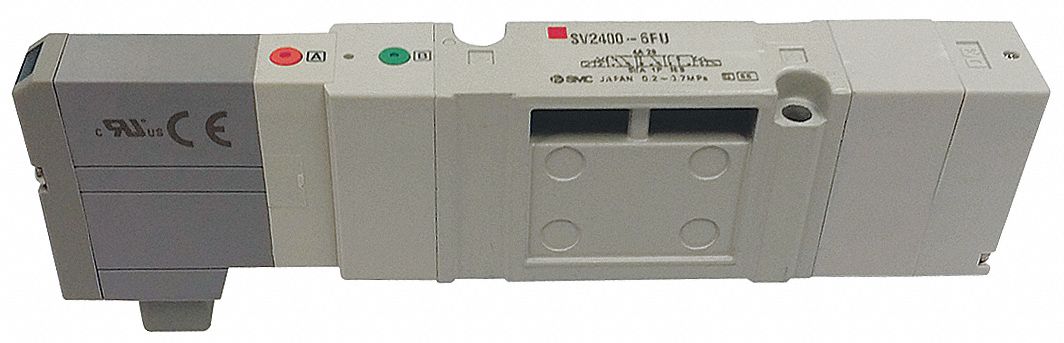

SV2400-6FU SMC | SMC SV2400-6FU- CBT Company Industrial Parts & Solutions. CBT Company

Technical Specification Item Solenoid Air Control Valve Valve Ways and Positions 5-Way/3-Position Voltage 12VDC Center Position Open Valve Actuator / Return Solenoid / Solenoid Max. CFM - Valves 12.88 Operational Pressure Range 15 to 105 psi Normally Open / Normally Closed Normally Open/Normally Closed Body Style Base Mounted Pilot Pressure 15 Coefficient of Volume 0.46 Electrical Connections Plug-In Shifting Technology Solenoid Power Consumption 0.6W Ambient Temp. Range 14 Degrees to 122 Degrees F Override Non-Locking Push Overall Height 1-45/64 Overall Length 3-5/8 Overall Width 5/8 Standards CE, UL Pneumatic Valves Product Group Solenoid Air Control Valve This listing is for each. Operational Pressure Range : 15 to 105 psi Shifting Technology : Solenoid Overall Height : 1 45/64 in Voltage : 12V DC Overall Width : 5/8 in Overall Length : 3 5/8 in Valve Actuator / Return : Solenoid / Solenoid Normally Open / Normally Closed : Normally Open/Normally Closed Body Style : Base Mounted Override : Non-Locking Push Ambient Temp. Range : 14 Degrees to 122 Degrees F Item : Solenoid Air Control Valve Actuator/Return : Solenoid/Solenoid Coefficient of Volume : 0.46 Pilot Pressure : 15 Standards : CE, UL Air Valve Type : 5-Way, 3-Position Power Consumption : 0.6 W Center Position : Open Valve Ways and Positions : 5-Way/3-Position Pressure Range : 15 to 105 psi Electrical Connections : Plug-In Max. CFM - Valves : 12.88 CFM : 12.88 Number of Stations : Function : Length (In.) : Valve Port Size : Height (In.) : Pipe Size : Valve Configuration : Width (In.) : Series : ISO Class : Vacuum Range : Inlet Pressure : Valve Vacuum Range : Max. Operating Pressure Differential : For Use With : Center Line Pipe Center Size : Pilot Port Size : Seat Material : Cv : Gasket Material : Max. Fluid Temp. : NPT Port (In.) : NEMA Classification : Min. Operating Pressure Differential : Air Inlet : Includes : Valve Design : Body Material : Orifice Dia. : Number of Valve Stations
