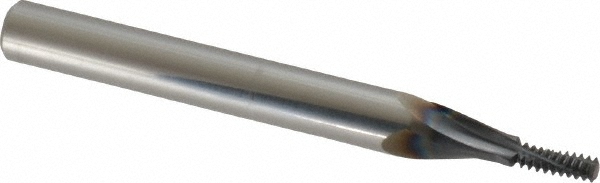

Scientific Cutting Tools TMI120-32HA

The TiAlN coating on these helical-flute thread mills withstands high temperatures and protects the thread mills from wear when milling hard materials. The TiAlN coating allows the thread mills to be used at faster speeds than thread mills with a bright finish. These thread mills are made from carbide, which offers excellent wear resistance, heat resistance, and hardness. Helical-flute thread mills have spiral flutes that distribute the chip load as the thread mill removes material to cut threads into an existing hole or onto the external surface of a part. They provide a smoother cut than straight-flute or single-profile thread mills and are used to create threads on tough or thin-walled materials. Helical-flute thread mills can create internal threads of the same pitch in a range of hole diameters, eliminating the need to change tools when threading multiple holes of different sizes. Thread mills are only usable in CNC machines that have helical interpolation capability. This listing is for each. Technical Specification Item Thread Mill Flute Type Helical Material - Machining Carbide Finish - Machining TiAlN Thread Standard UN Thread Size #10-32 Cutter Dia. 0.1200 in Length of Cut 0.3260 in Overall Length 2-1/2 in Shank Dia. 1/4 in Shank Length 2.1740 in Number of Flutes 3 Pitch 32 TPI List Number TMI Nomenclature TMI Measurement System Fractional Inch Material Applications Composite, Steel Primary Material Application All Materials Series SPTM
