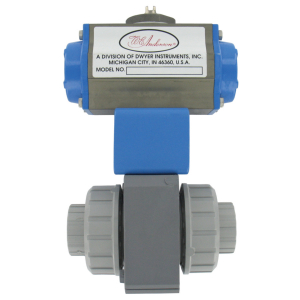

Order PBVCU1103 by W.E. Anderson Automated Ball Valve - Two-Way Plastic - US Mega Store

W.E. Anderson . PBVCU1103

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute18Compatible liquids or gases
Attribute01, Attribute192-way
Attribute02, Attribute203/4"
Attribute03, Attribute21Female NPT or Socket
Attribute04, Attribute22232 psi @ 73°F. Vacuum: 29" Hg
Attribute05, Attribute23Body & End Connections: CPVC; Ball & Stem: CPVC; Seat: TFE; Stem Seal: EPDM
Attribute06, Attribute2432 to 140°F
Attribute07, Attribute25Electric Two Position
Attribute08, Attribute26120 VAC, 50/60 Hz, single phase
Attribute09, Attribute270.55A
Attribute10, Attribute282.5 sec
Attribute11, Attribute290.75
Attribute12, Attribute30NEMA 4
Attribute13, Attribute31Aluminum with thermal bonding polyester powder finish
Attribute14, Attribute320 to 150°F
Attribute15, Attribute331/2" female NPT
Attribute16, Attribute344 to 20 mA
Attribute17, Attribute35Manual override and visual position indicator except modulating units
AttributeKey00, AttributeKey18Service
AttributeKey01, AttributeKey19Body
AttributeKey02, AttributeKey20Line Size
AttributeKey03, AttributeKey21End Connections
AttributeKey04, AttributeKey22Pressure Limit
AttributeKey05, AttributeKey23Wetted Materials
AttributeKey06, AttributeKey14, AttributeKey24, AttributeKey32Temperature Limit
AttributeKey07, AttributeKey25Type
AttributeKey08, AttributeKey26Power Requirements
AttributeKey09, AttributeKey27Power Consumption (Locked Rotor Current)
AttributeKey10, AttributeKey28Cycle Time (per 90°)
AttributeKey11, AttributeKey29Duty Cycle
AttributeKey12, AttributeKey30Enclosure Rating
AttributeKey13, AttributeKey31Housing Material
AttributeKey15, AttributeKey33Conduit Connection
AttributeKey16, AttributeKey34Modulating Input
AttributeKey17, AttributeKey35Standard Features
CategoryL1Process Control & Automation
CategoryL2Valves
CategoryL3Electric
CategoryL4W.E. Anderson PBVCU1103
ConditionNEW
Extra Product NameOrder PBVCU1103 by W.E. Anderson Automated Ball Valve - Two-Way Plastic - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUPBVCU1103
qtyInStockContact Us
snippet<p><strong>Series PBV Automated Ball Valve - Two-Way Plastic, Connection Size 3/4", Electric Two Position 120 VAC Size 100, Plastic Material CPVC </strong> </p> <p><strong>The Series PBV </strong> is ideal for services in industrial, chemical, turf and irrigation, and pool and spa applications, as well as for use with potable water. The valve features shear-proof stem designed to prevent leakage in the event of damage, reinforced TFE seats and EPDM seals for longer life, and an all-plastic construction for heavyweight durability at a lightweight cost. </p> <p>Electrically actuated model are weatherproof, NEMA 4, powered by standard 115 VAC supply. </p> <p> Two-position actuator use the 115 VAC input to drive each of the valve ports open or closed </p>
tierPrice1732

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comPBVCU11031Contact Us11 @ $732.00
heavydutydepot.comPBVCU1103111 @ $727.00
MegadepotPBVCU110311
