V1E045ABN

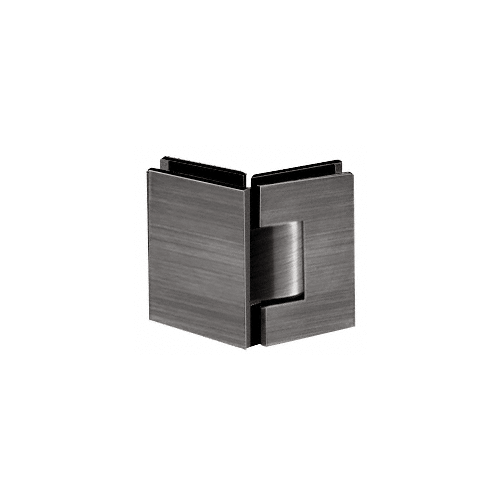

The <em><b>CRL Vienna Series</B></EM> of professional hinges is designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. Available in both Wall Mount and Glass-to-Glass styles, it provides design flexibility. Vienna Series Hinges are constructed of solid brass with all moving parts (pins and springs) in stainless steel. Two strategically placed pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. It allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out, or in some cases fit competitive "mouse-ear" cut-outs. On the other hand, to enable increased adjustability, the two pins can be removed which allows the Vienna Hinge to fit it's own CRL rectangular shape, square cornered cut-out, or in some cases, fit competitive rectangular shaped, square cornered cut-outs. Using two hinges with 3/8 and 1/2 inch glass (10 and 12 millimeters) the hinge will hold up to 110 pounds (50 kilograms) with a maximum width of 36 inches (914 millimeters). Using three hinges with 3/8 and 1/2 inch glass (10 and 12 millimeters) the hinge will hold up to 140 pounds (63 kilograms) with a maximum width of 36 inches (914 millimeters). <b>Specifications:</b> <li>Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) <li>Tempered Safety Glass <li>Construction: Solid Brass <li>Fabrication Requirements: Optional Square or "Mouse Ears" Cut-out <li>Includes: One Hinge, Gaskets, Screws and Template
