Service Caster

Service Caster . SCC-35S520-TPRBF-BSL-2-SLB-2

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name, Brand, Label, Publisher, StudioService Caster
Attribute005
Attribute012
Attribute026-1/2"
Attribute03Top Plate
Attribute04, Model, ModelNumber, Model_numberSeries#35
Attribute0575A
Attribute064-1/2" x 6-1/4"
Attribute07(2) Swivel casters w/bolt on swivel locks & (2) swivel casters w/side lock brakes
Attribute081400
Attribute09Thermoplastic Rubber on Polyolefin
Attribute102-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Attribute112 Bolt On Swivel Locks & 2 Top Lock Brakes
Attribute12-20 degrees F to 180 degrees F
Attribute13Bright Zinc Plated Finish
Attribute14, countryOfOriginUnited States
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02, height_AttribMounting Height
AttributeKey03Caster Mounting Type
AttributeKey04Series
AttributeKey05Durometer
AttributeKey06Plate Size
AttributeKey07Type
AttributeKey08Capacity (Lb.)
AttributeKey09Material
AttributeKey10Plate Caster Bolt Hole Pattern
AttributeKey11Caster Swivel Lock Type
AttributeKey12Caster Temp. Range
AttributeKey13Finish
AttributeKey14Country of Origin (subject to change)
DimensionUnitinch
WeightUnitlbs
diameter, length5.0
extendedLead26
extendedQty-2
height6.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, PackageQuantity1
MPN, PartNumber, Part_numberSCC-35S520-TPRBF-BSL-2-SLB-2
qtyInStock0
tierPrice1312.45
urlhttps://www.zoro.com/service-caster-5-inch-thermoplastic-rubber-swivel-caster-swivel-locks-2-brakes-scc-2pk-scc-35s520-tprbf-bsl-2-slb-2/i/G105436985/
width2.0
ASINB08WGXJWSX B08Y2G2DL3
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08WGXJWSX
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #35 Thermoplastic Rubber Flat Tread casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on. Weight capacity ranges from 300 lbs on the 4” caster, 350 lbs on the 5”, 500 lbs on the 6” and 600 lbs. on the 8”.
ClassificationId383663011 511228
Color4 Swivel w/2 Brakes & 2 Swivel Locks
Compatible_with_vehicle_typeTruck
Currency, CurrencyCodeUSD
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0011586599673 011586599673
FetchTime1697396046 1704527956
Height, Width1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameHeavy Duty Large Top Plate Thermo Rubber Flat Tread Swivel Caster w/Main. Free Bearings Set of 4 w/5" x 2" Gray Wheels-Includes 2 Swivel with Bolt on Swvl Lcks&2 Swvl with Brakes- Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-35S420-TPRBF-BSL
Linkhttps://m.media-amazon.com/images/I/41IeDxf4yML._SL75_.jpg https://m.media-amazon.com/images/I/41IeDxf4yML.jpg https://m.media-amazon.com/images/I/41bBpUOuNIL._SL75_.jpg https://m.media-amazon.com/images/I/41bBpUOuNIL.jpg https://m.media-amazon.com/images/I/41rqlgloRbL._SL75_.jpg https://m.media-amazon.com/images/I/41rqlgloRbL.jpg https://m.media-amazon.com/images/I/51-+aA2ZcoL._SL75_.jpg https://m.media-amazon.com/images/I/51-+aA2ZcoL.jpg https://m.media-amazon.com/images/I/5118zQPHYRL._SL75_.jpg https://m.media-amazon.com/images/I/5118zQPHYRL.jpg https://m.media-amazon.com/images/I/51GdYBJhVeL.jpg https://m.media-amazon.com/images/I/51ZH4PN7gEL._SL75_.jpg https://m.media-amazon.com/images/I/51ZH4PN7gEL.jpg https://m.media-amazon.com/images/I/51jAkIWa-0L.jpg https://m.media-amazon.com/images/I/61aDru-U6VL.jpg https://m.media-amazon.com/images/I/61gpANmb9yL.jpg https://m.media-amazon.com/images/I/61woLu-VDRL.jpg https://m.media-amazon.com/images/I/713SeoOWumL.jpg https://www.amazon.com/gp/bestsellers/hi/511228 https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383663011
List_price0.0
Load_capacity350.0
Marketplace_idATVPDKIKX0DER
Material, MaterialTypeThermoplastic Rubber Tread on Polyolefin Core
Name, ThemeSIZE_NAME/COLOR_NAME
NumberOfItems, Number_of_items4
ParentAsinsB08Y2G2DL3
ProductCategoryId383663011 511228 biss_display_on_website
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for a set of four (4) Service Caster Series #35 casters, two (2) swivel casters with bolt on swivel locks and two (2) swivel casters with side lock brakes, with 5" diameter by 2" wide thermoplastic rubber flat tread wheels and maintenance free precision ball wheel bearings. Capable of supporting a total weight of 1,400 lbs. (350 lbs./caster). When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 35 thermoplastic rubber flat tread on polyolefin core casters. The soft flat tread is made of thermoplastic rubber that is non-marking and non-marring, and on the polyolefin core provides a long lasting, high capacity wheel that is capable of easy rolling under heavy loads. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.
Product_site_launch_date2021-03-03T15:19:27.843Z
Rank1392937 1430039 547122 571840 6477 6711
Size5" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TitleHardware Heavy Duty Large Top Plate Thermo Rubber Flat Tread Swivel Caster w/Main. Free Bearings Set of 4 w/5" x 2" Gray Wheels-Includes 2 Swivel with Bolt on Swvl Lcks&2 Swvl with Brakes- Service Caster Brand Industrial & Scientific Plate Casters
TypeVARIATION ean upc
URLhttps://m.media-amazon.com/images/I/41bBpUOuNIL._SL75_.jpg
Unitpounds
Unit_count4.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04 PT05
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website biss_display_on_website
Website_shipping_weight26.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG105436985111 @ $312.45

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

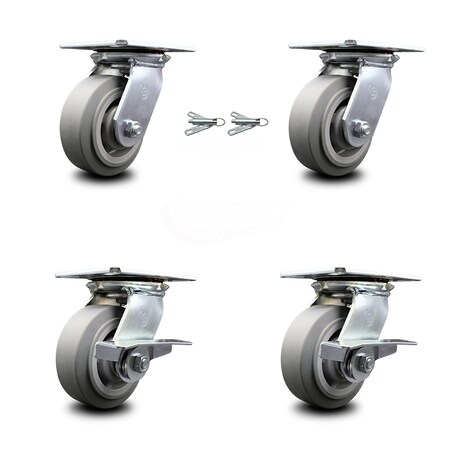

Heavy Duty Large Top Plate Thermo Rubber Flat Tread Swivel Caster w/Main. Free Bearings Set of 4 w/5" x 2" Gray Wheels-Includes 2 Swivel with Bolt on Swvl Lcks&2 Swvl with Brakes- Service Caster Brand
Brand: Service Caster
Listing is for a set of four (4) Service Caster Series #35 casters, two (2) swivel casters with bolt on swivel locks and two (2) swivel casters with side lock brakes, with 5" diameter by 2" wide thermoplastic rubber flat tread wheels and maintenance free precision ball wheel bearings. Capable of supporting a total weight of 1,400 lbs. (350 lbs./caster). When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 35 thermoplastic rubber flat tread on polyolefin core casters. The soft flat tread is made of thermoplastic rubber that is non-marking and non-marring, and on the polyolefin core provides a long lasting, high capacity wheel that is capable of easy rolling under heavy loads. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.
Details
  • These Service Caster Series #35 Thermoplastic Rubber Flat Tread casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 300 lbs on the 4” caster, 350 lbs on the 5”, 500 lbs on the 6” and 600 lbs. on the 8”.
  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#35
Part numberSCC-35S520-TPRBF-BSL-2-SLB-2
Items per pack4
LabelService Caster
ManufacturerService Caster
