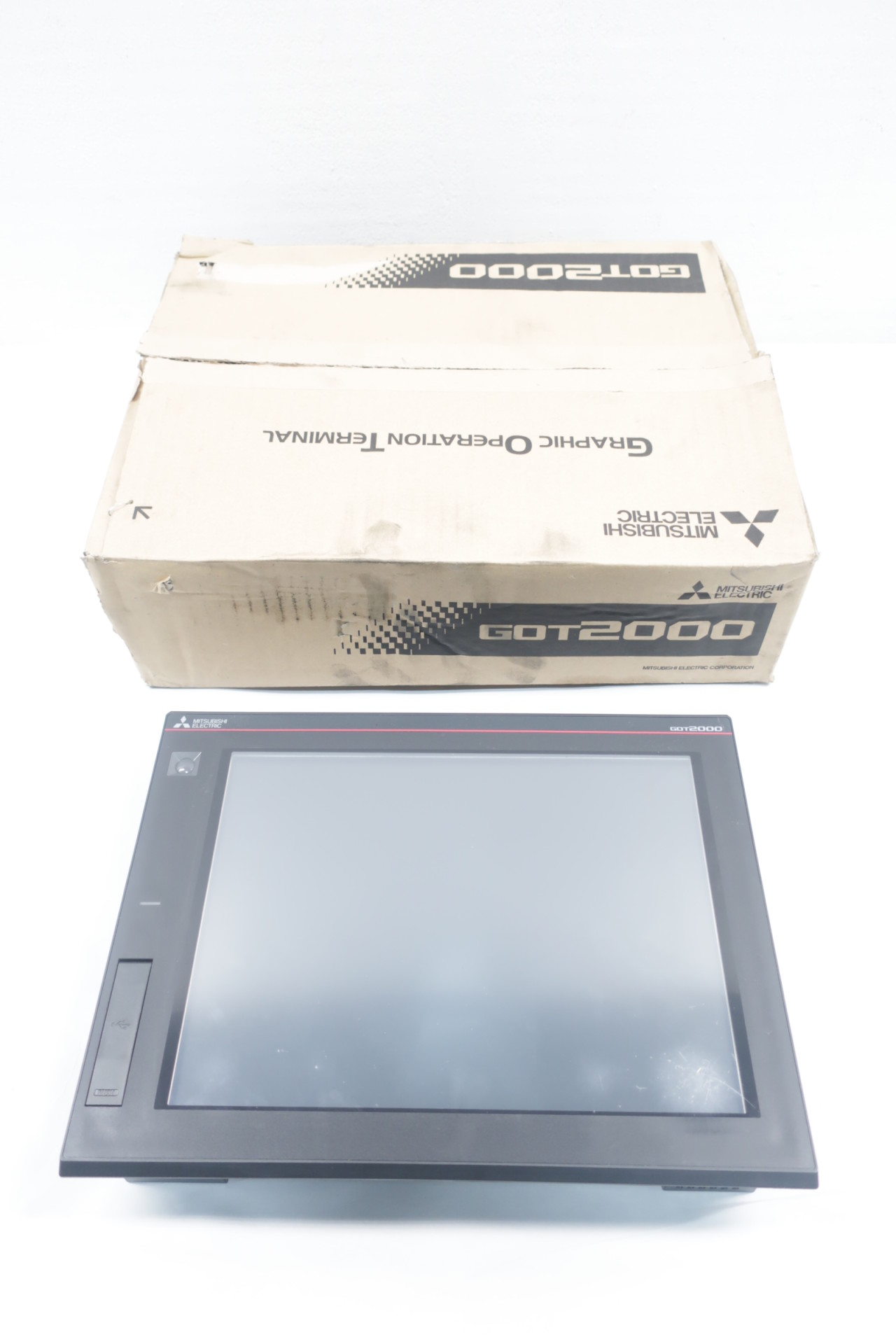

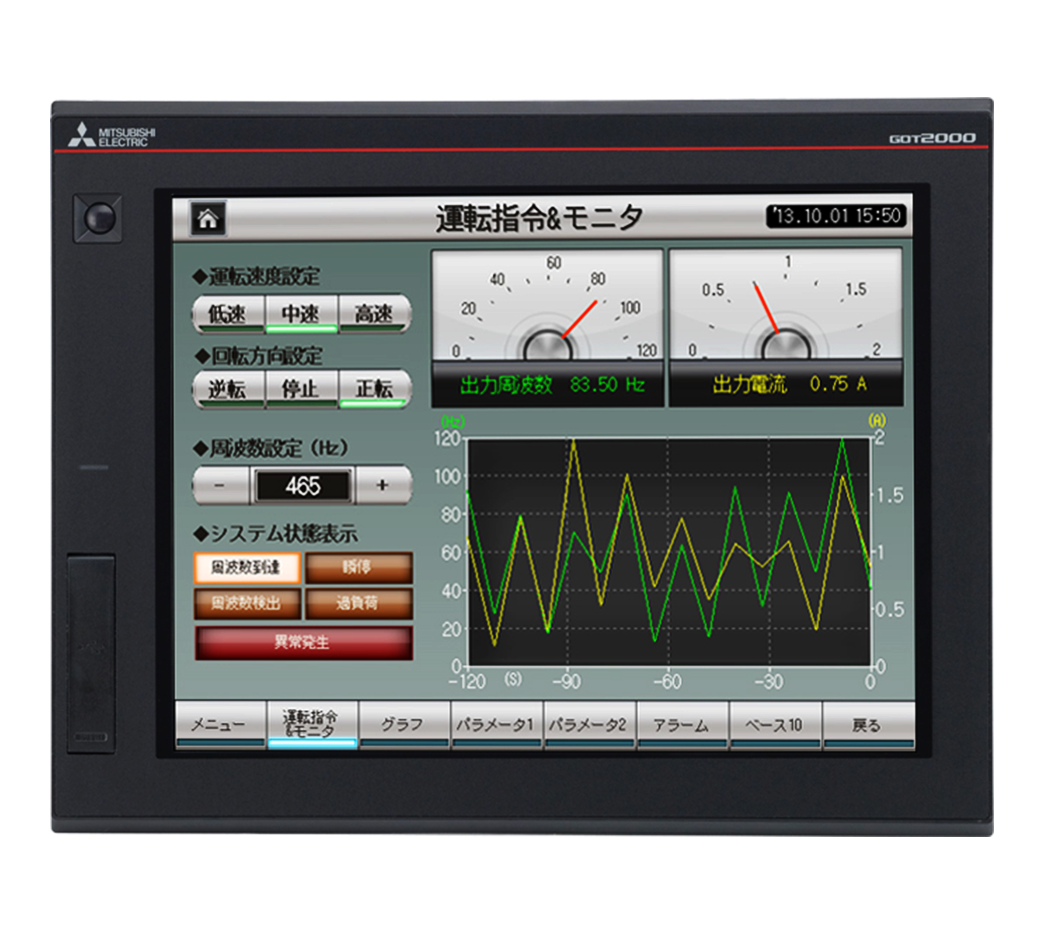

MITSUBISHI . GT2712-STBA

Power Supply Specifications <br>[Input Power Supply Voltage]100 to 240VAC(+10%,-15%) <br>[Input Power Supply Frequency]50/60Hz +/-5% <br>[Power Consumption] <br> Maximum Load 44W or less <br> Stand Alone 19W <br> Stand Alone w/ Backlight Off 10W <br>[Inrush Current]60A or less(2ms,ambient temperature 25 deg.(C),maximum load) <br>[Permissible Instantaneous Failure Time]Within 20ms(100VAC or more) <br>[Applicable Wire Size]0.75 to 2 [mm^2] <br>[Clamp Terminal]Clamp terminals for M3 screw RAV1.25-3,V2-S3.3,V2-N3A,FV2-N3A <br>[Tightening Torque(Terminal Block's Terminal Screws)]0.5 to 0.8 [N*m] <br>Performance Specifications <br>[Display Section] <br> Type TFT color LCD <br> Screen Size 12.1" <br> Resolution(Dots)800 x 600 SVGA <br> Display size(W x H)mm 246.0 x 184.5 <br> Number of Characters 16-dot standard font:50 chars. x 37 lines(2-byte)12-dot standard font:66 chars. x 50 lines(2-byte) <br> Display Colors 65536 colors <br> Intensity Adjustment 32-level adjustment <br> Frame Color Brack <br>[Backlight] <br> Type LED(not replaceable) <br>[Touch Panel] <br> Type Analog resistive film <br> Key Size(dots)Minimum 2 x 2 dots(per key) <br> Simultaneous Press Maximum 2 points <br> Life 1 million times or more(operating force 0.98N or less) <br>[Memory] <br> User Memory Capacity Memory for storage(ROM):57MB,Memory for operation(RAM):128MB <br>[Battery] <br> Type GT11-50BAT lithium battery <br> Life Approx. 5 years(ambient temperature 25 deg.(C)) <br>[Buzzer Output]Single tone(tone,tone length adjustable) <br>[Power LED]Emission color:2 colors(blue,orange) <br>[External Dimensions(W x H x D)mm]316 x 246 x 52 <br>[Panel Cutout(W x H)mm]302 x 228 <br>[Weight(kg)(Excluding Mounting Brackets)]2.4 <br>[Applicable Software Package]GT Works3 Version 1.113T or Later <br><br><br><br>(1)
