Dwyer Pressure Transmitter, Diff, 125Pa - MSXP-W10-PA
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 82AK4798 | 1 | 1 | 1 @ $177.85, 5 @ $168.96, 10 @ $160.07 | |
| globaltestsupply.com | MSXP-W10-PA | 1 | 1 | ||
| MSXP-W10-PA-DWYR | 1 | 1 | 1 @ $163.46 | ||
| G707143687 | 1 | 1 | 1 @ $153.99 | ||
| 4119546 | 1 | 1 | 1 @ $0.00 | ||
 blackhawksupply.com | MSXP-W10-PA | 1 | -2 | 1 | 1 @ $176.62 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

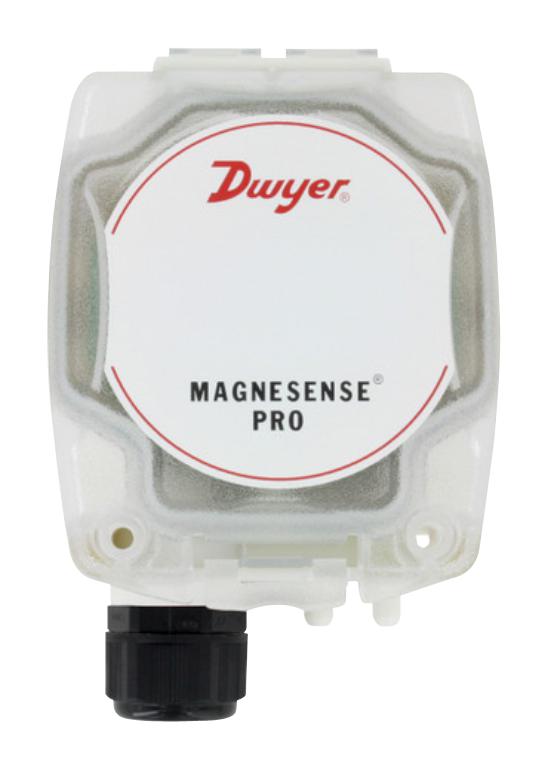

Dwyer MSX Pro Magnesense Differential Pressure Transmitter, MSXP-W10-PA, Wall Mount, Universal Current/Voltage Outputs, Uni-Directional, Range 60, 75, 100, 125 PA
Brand: Dwyer
The Series MSX Pro Magnesense Differential Pressure Transmitter is the professional differential pressure transmitter meeting stringent industry standards with innovative global product design. The device has exceptional stability for use in critical building performance applications with the popular versatility of our original Series MS2 Magnesense II transmitter. The MSX Pro simplifies the ordering process to deliver the desired configuration, which reduces product setup time. Pressure ranges of Pa, mm w.c., and in w.c. are available per device. All pressure ranges can be configured in unidirectional or bidirectional modes providing a total of 32 ranges. The MSX Pro transmitter can provide a linear pressure output or a linear velocity output with the square root extraction from the transmitter. Additional parameters have been included to expand the square root capability to calculate flow. Dual voltage and milliamp output signals can be used to provide control and equipment output signal verification. Additional Specs: Loop Resistance: Current output: 0-1250 Ω max; Voltage output: min. load resistance 1 kΩ. Current Consumption: 21 mA max continuous. Electrical Connections: 4-wire removable European style terminal block for 16 to 26 AWG. Electrical Entry: 1/2" NPS thread. Cable gland included. Display (optional): 4 digit LCD. Process Connections: 1/8", 3/16", 1/4", 5 mm, and 6 mm ID flexible tubing. Enclosure Rating: NEMA 4X (IP66), UL 2043 (Plenum), UL94 V-0. Mounting Orientation: Pressure sensor measurement unaffected by orientation. Agency Approvals: CE.
Details
- Applications: High performance bldg applications for critical environments; Filter monitoring in air handler units; Building pressure in pharmaceutical/semiconductor clean rooms; Duct static pressure in commercial and specialized buildings; Air velocity/flow in VAV systems
- Benefits/Features: Flip-lid provides easy access to the unit’s wiring; Electronics shielded from installation eliminating accidental damage to the unit; Tamper resistant cover for added security and protection; Includes liquid tight cable gland fitting for when there are liquids or moisture near the cable egress point
- Includes a toolless terminal block that allows for quick and easy wiring, reducing installation time; UL94 V-0 and plenum ratings that add safety to a variety of applications needing to meet municipal and building code standards
- Service: Air and non-combustible, compatible gases; Wetted Materials: Consult factory; Accuracy: ±.5% FSO for all ranges except unidirectional .5 in. @ ±1% FSO; Stability: ±1% FSO/year; Temperature Limits: -4 to 158°F (-20 to 70°C).
- Power Requirements: 10-36 VDC (2-wire), 17-36 VDC or isolated 21.6-33 VAC (3-wire); Output Signals: 4-20 mA (2-wire); 0-10 V or 0-5 V selectable (3-wire); Resp Time: Instantaneous (default) or 3 s (selectable); Zero and Span Adjustments: Digital push-button.
Listing
| Product group | BISS Basic |
|---|---|
| Product type | MECHANICAL_COMPONENTS |
| Part number | MSXP-W10-PA |
| Items per pack | 1 |
| Label | Dwyer Instruments, Inc. |
| Manufacturer | Dwyer Instruments, Inc. |
