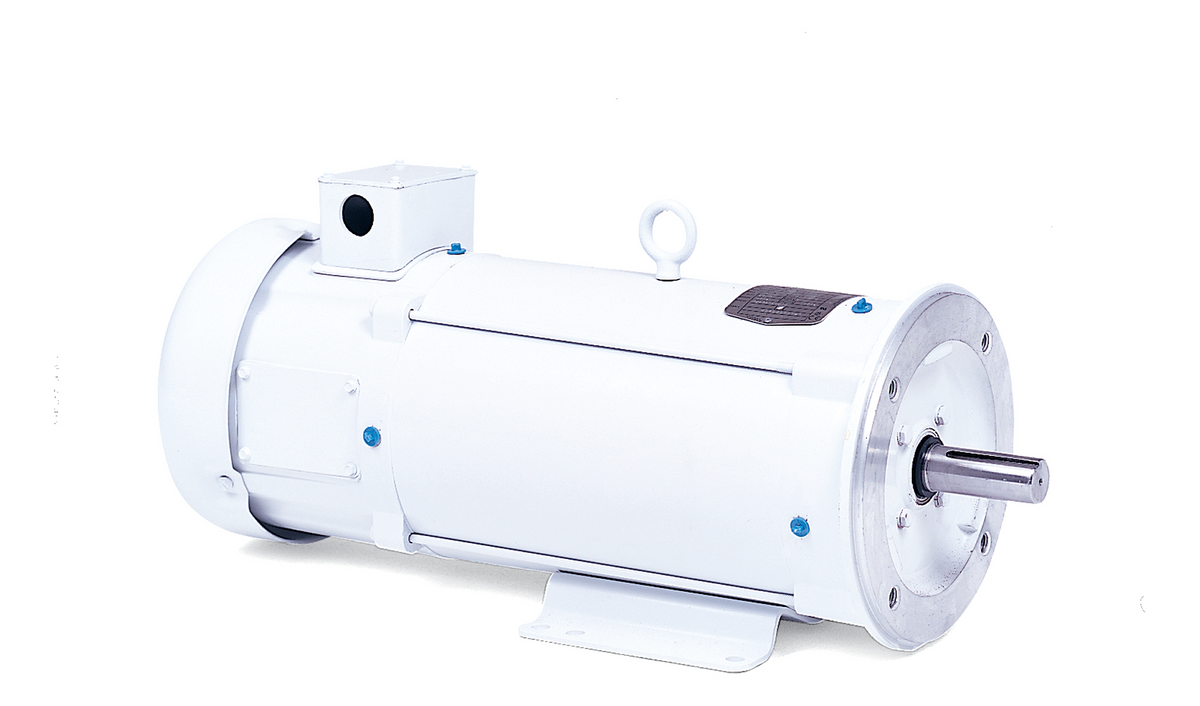

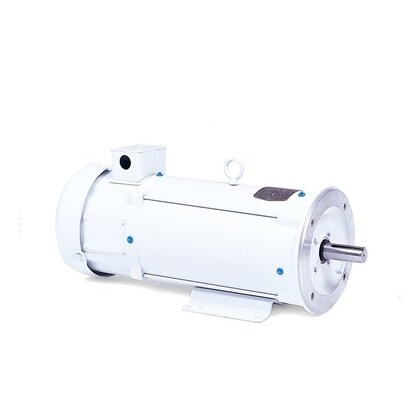

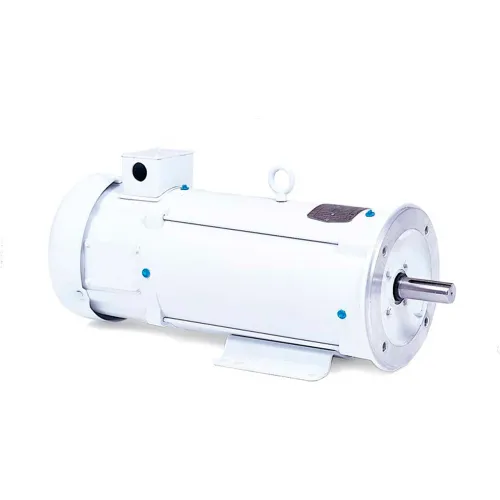

Baldor CDPWD3326, DC General Purpose Permanent Magnet Motor, 1/2 HP, 180 Volts, 2.5 Amps1750 RPM, TENV Enclosure, 56C Frame, 3336P Motor Type, Steel Frame

Baldor Electric, CDPWD3326, .5HP, 1750RPM, 180V, 56C Frame, C-Face Flange, Foot Mount, TENV, Washdown Duty Motor

Baldor CDPWD3326.5HP 1750RPM DC 56C 3336P TENV F1

<p><ul><li>NEMA C-face with removable base</li><li>Tach adaptable</li><li>Class F insulation</li><li>Double sealed ball bearings</li><li>20:1 constant torque speed range</li><li>UL and CSA recognized</li><li>No dual mounting base holes on 1/4 - 1/2 hp</li><li>Applications: Conveyors, Mixers, packaging machinery and other applications requiring variable speed and constant torque Washdown Duty</li><li>Moisture sealant on bolt heads between frame and endplates, neoprene gasketed conduit box</li><li>Double sealed ball bearings</li><li>Forsheda running contact v-ring slinger</li><li>Stainless steel shaft</li><li>Electrostatic epoxy paint coating</li><li>Class F insulation</li><li>20:1 constant torque speed range</li><li>Tach adaptable</li><li>Applications: Food processing conveyors and feeders exposed to high pressure wash down</li><li>1/4 to 1/2 hp motors are TENV, all others are TEFC</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Family:-Permanent Magnet </li><li> Motor Type:-Brushed </li><li> Horsepower:-1/2 hp </li><li> DC Armature Voltage:-180 V </li><li> Base RPM:-1750 rpm </li><li> Enclosure Type:-TENV (Totally Enclosed Non-Ventilated) </li><li> NEMA / IEC Frame Size:-56C </li><li> Armature Full Load Current:-2.5 A </li><li> Overall Length (C-Dimension):-14.97 in </li><li> Insulation Class:-F </li><li> Standards Met:-NEMA </li><li> Drive End Bearing:-6203 </li><li> Weight:-32 lbs </li><li> Opposite Drive End Bearing:-6203 </li><li> Recommended Control:-Bcwd140 </li><li> Typical Application:-Food Processing Conveyors and Feeders Where The Motor is Exposed to High Pressure Wash Down </li><li> Wattage:-373.0 W </li></ul></p>
