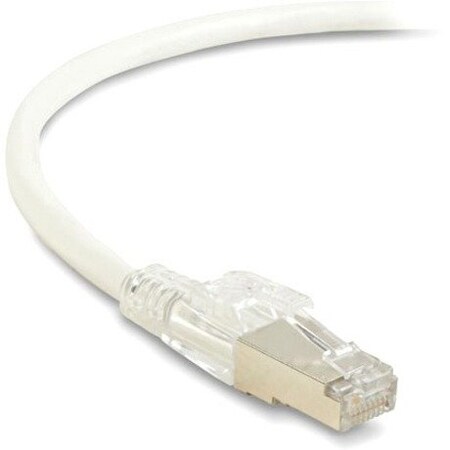

Black Box Cat6 250-Mhz Locking Snagless Patch Cable S/ftp Cm Pvc Wh 20Ft - C6PC70S-WH-20

CAT6 250-MHz Locking Snagless Patch Cable S/FTP CM PVC WH 20FT

Features. Poe Plus 10100 1000 Medium Converter. Lockport technology boots provide inexpensive security without having to buy new cables . Lock boots to prevent accidental disconnects particularly in factories industrial settings mining even aerospace applications . Use in for noisy data centers manufacturing and other industrial settings . Supports 1000BASET and broadband video . Electrical PerformanceSpecifications. Size Medium. ACR 244 dB at 100 MHz. ACRF 233 dB at 100 MHz 153 dB at 250 MHz. Insertion Loss Maximum 213 dB at 100 MHz 35 dB at 250 MHz. Next 399 dB at 100 MHz 331 dB at 250 MHz. Propagation Delay 250 MHz 546 ns100 m maximum. PSACRF 203 dB at 100 MHz 123 at 250 MHz. PSNext 371 dB at 100 MHz 302 dB at 250 MHz. Approval ANSITIA568C2 Category 6 ISOIEC 11801 Class E IEC 6033212 EN 5028852 UL E196163Y. Jacket PVC CM. Shielding 022 57 mm. Weight 057 lbs

<p><strong>BlackBox, C6PC70S-WH-20, GigaTrue 3 CAT6 250-MHz Lockable, Shielded, Stranded, PVC Cable</strong></p><p>Black Box GigaTrue 3 Premium CAT6 Shielded Patch Cables exceed ANSI/TIA industry standards and protect against EMI/RFI interference that can distort or destroy your data. Tested to 250-MHz and 1-Gbps performance, these cables ensure the transmission of your voice, data, audio/video, and PoE signals. They feature plugs with 50-micron gold-plated contacts for superior conductivity. These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. The rugged, hard-polymer LockPORT boot and plug are integrated to provide increased strength in comparison to standard connectors. These cables allow you to lock down critical network ports when required - without buying new patch cords. Secure your network ports by inserting a locking pin (sold separately) into the built-in locking tab on the patented snagless boot. To unplug the cable, release it with the removal key (sold separately).</p><p><strong>Locked: Red Pin</strong> Prevent unauthorized access to mission-critical and publicly accessible ports in government offices, lobbies, retail establishments, and more. To lock a port, insert the red locking pin into the patented LockPORT boot on the cable. Unlock the port with the LockPORT Locking Pin Removal Tool. </p><p><strong>Secured: Green Pin</strong> Prevent accidental disconnects in the office, manufacturing and industrial applications, and more. To secure a port, insert the green locking pin into the cable's LockPORT boot. To release the pin, squeeze its butterfly tabs and pull - no removal tool required.</p>
