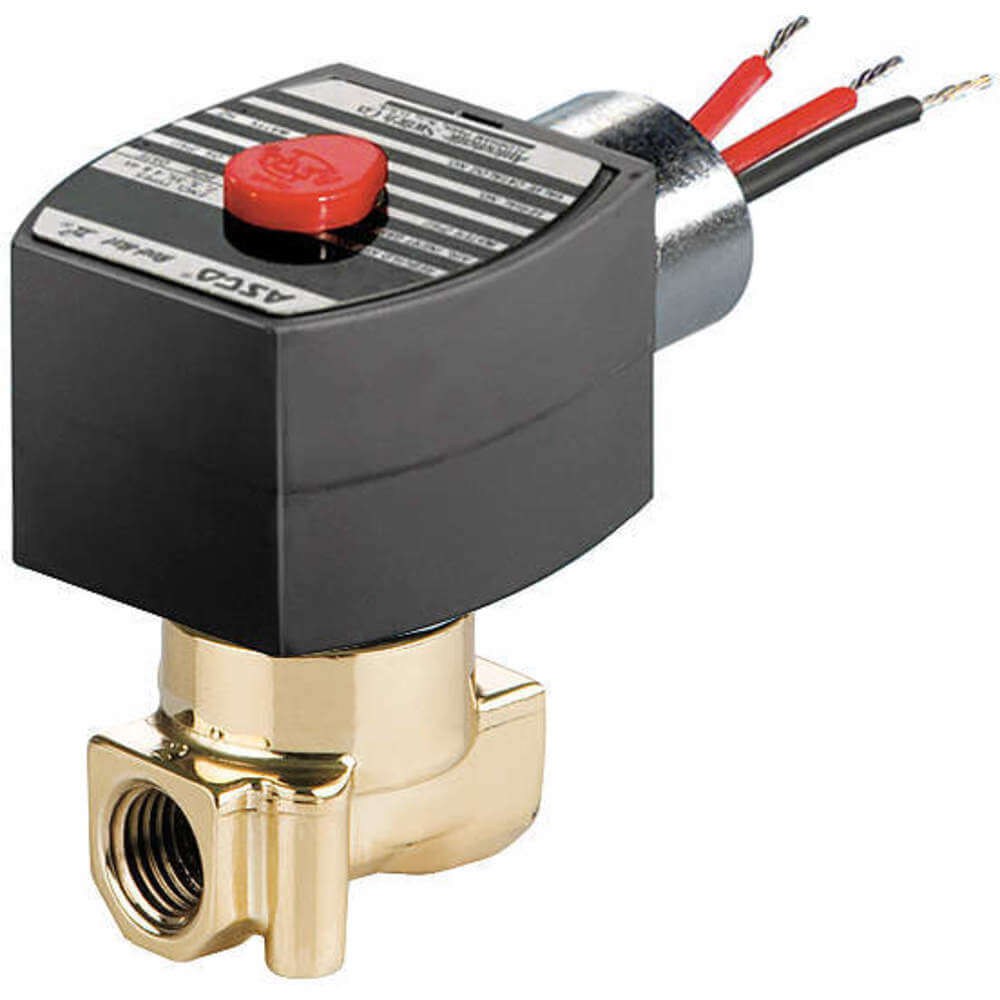

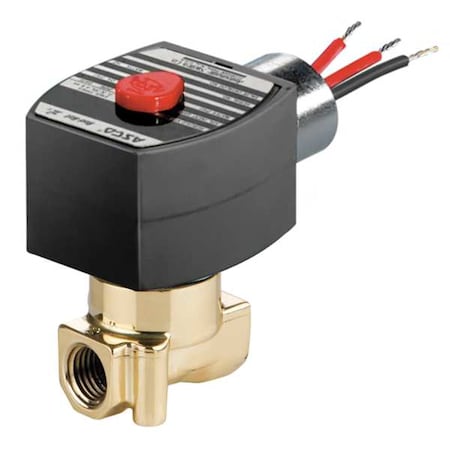

Red Hat EF8262H014 | Solenoid Valve 2/2 1/8 Inch Nc 120v Brass | 6WTU1 | Raptor Supplies Worldwide

This general service, normally closed RED HAT solenoid valve opens when energized and closes when de-energized. Provides a high-flow level 1 inlet port and 1 outlet port This listing is for each. Technical Specification Item Solenoid Valve Solenoid Valve Product Group Solenoid Valve Valve Ways and Positions 2-Way/2-Position Valve Configuration Normally Closed Media - Valves Air, Inert Gases, Light Oil, Water Pipe Size - Valves 1/8 in Min. Operating Pressure Differential 0 psi Max. Operating Pressure Differential Air/Inert Gas 370 psi Max. Operating Pressure Differential Light Oil 190 psi Max. Operating Pressure Differential Water 330 psi Environmental Rating - Valves Indoor, Outdoor Voltage 120V AC Coefficient of Volume 0.21 Body Material - Valves Brass Coil Insulation Class F Seal Material - Valves NBR Orifice Dia. 3/32 in NEMA Rating 3, 3S, 4, 4X, 6, 6P, 7, 9 Max. Fluid Temp. 180 Degrees F Hz 60 Watts 6.1 W Coil Enclosure Explosionproof and Watertight Electrical Connections 1/2 in Conduit w/18 in Leads Overall Length 1 3/16 in Overall Width 1 11/16 in Overall Height 2 7/8 in Center Line Pipe Center Size 2 1/2 in
