Diamond Series

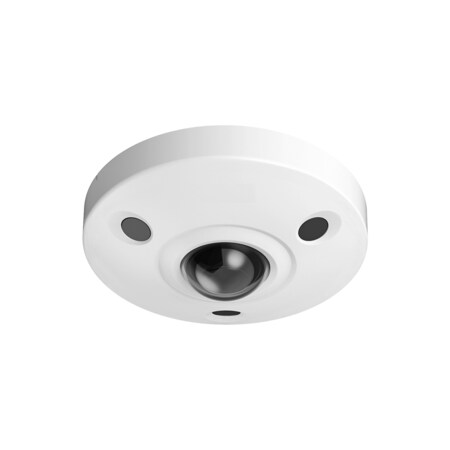

<p><b>Diamond HCC7482-IR 4K HDCVI Fisheye Camera, 1/2" 8MP Progressive-scan CMOS Sensor, 180° Panoramic Lens, 2.5mm Focal Length, HD and SD Dual-output, True WDR (120 dB), 2D/3D DNR, IP67</b></p> <b>Key Features</b><ul> <li>1/2" 8MP Progressive-scan CMOS Sensor</li> <li>3840x2160 at 15 fps Maximum Resolution</li> <li>180° Panoramic Lens</li> <li>True WDR (120 dB), 2D/3D DNR</li> <li>Maximum IR Distance 15m (49 ft) with Smart IR</li> <li>On-device Lens Distortion Correction</li> <li>HD and SD Dual-output</li> <li>IP67 Ingress Protection and IK10 Vandal Resistance</li> <li>Brand Dahua OEM and Comes with No Logo</li></ul></br> <b>Specifications</b><ul> <li>Image Sensor: 1/2" CMOS Sensor</li> <li>Image Size: 3840x2160 (8 MP)</li> <li>Electronic Shutter: 1/3s to 1/100,000s</li> <li>Minimum Illumination: Color: 0.01 Lux at F2.0 (30 IRE), 0 Lux (IR On)</li> <li>S/N Ratio: More than 65 dB</li> <li>IR LEDs: 3</li> <li>IR On/Off Control: Auto, Manual</li> <li>Focal Length: 2.5mm</li> <li>Angle of View: No LDC Correction Horizontal: 180° Vertical: 100° LDC Vertical Mode Horizontal: 176° Vertical: 73° LDC Vertical/Horizontal Mode Horizontal: 170° Vertical: 88°</li> <li>Max. Aperture: F2.0</li> <li>Close Focus Distance: 600mm (23.62")</li> <li>Video Resolution: 8MP (3840x2160), 4MP (2560x1440)</li> <li>Video Frame Rate: 3840x2160 at 15fps or 2560x1440 at 30fps</li> <li>Day/Night: Auto (ICR), Manual</li> <li>BLC Mode: BLC, HLC, WDR</li> <li>White Balance: Auto, Manual</li> <li>Gain Control: AGC</li> <li>Digital Noise Reduction: 2D/3D</li> <li>Audio Interface: Input: Built-in Microphone</li> <li>Alarm In: 2</li> <li>Alarm Out: 1</li> <li>Power Supply: 12 VDC ± 25%</li> <li>Power Consumption: 7.4W, with IR on</li> <li>Operating Temperature: -30°C to +60°C, Less than 90% RH</li> <li>Storage Temperature: -30°C to +60°C, Less than 90% RH</li> <li>Ingress Protection: IP67</li> <li>Dimensions: 5.90"x1.88"</li> <li>Weight: 1.23 lb</li></ul>
