Amp Te Connectivity Industrial Relays Jmgacdd-26Pw = M39016/19-042P - 3-1617146-2
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 36AC3077 | 50 | 50 | 25 @ $90.12 | |
 Zoro | G400975929 | 50 | 50 | 1 @ $7108.00 | |
| Digi-Key | 14704493 | 1 | 1 | 1 @ $104.43, 3 @ $96.55, 6 @ $89.77, 12 @ $83.89 | |
| Hotenda | H3848455 | 1 | 1 | ||
| E5179805 | 10 | 10 | 10 @ $131.31 | ||
| Onlinecomponents.com | 3-1617146-2 | 1 | 1 | 1 @ $91.32, 2 @ $80.08, 6 @ $73.32 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

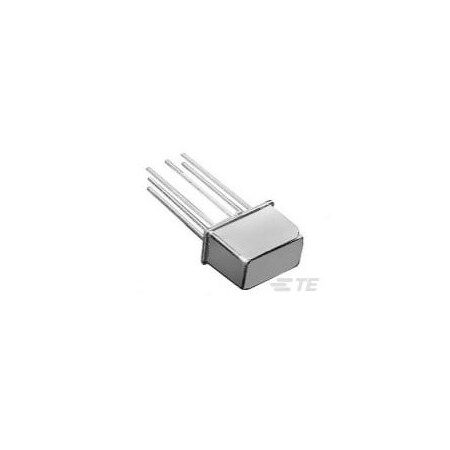

Signal Relay 26.5VDC 1A DPDT(9.4x9.4x7.11) mm THT
Brand: TE Connectivity
EU RoHS: Compliant ECCN (US): EAR99 Part Status: Active HTS: 8536.41.00.50 Contact Arrangement: DPDT Contact Form: 2 Form C DC Coil Voltage (V): 26.5 Coil Current (mA): 16.99 Coil Resistance (Ohm): 1.56K Maximum Pick-Up Voltage: 15.2VDC Minimum Dropout Voltage: 1.8VDC Maximum AC Switching Voltage (V): 115 Maximum DC Switching Voltage (V): 28 Maximum Switching Current (A): 1 Operate Time (ms): 2 Release Time (ms): 4 Relay Construction: Non-Latching Contact Material: Gold/Palladium/Platinum/Silver/Gold Plated Mounting: Through Hole Termination Style: PC Pin Number of Terminals: 8 Seal: Hermetic Seal Minimum Operating Temperature (°C): -65 Maximum Operating Temperature (°C): 125 Package Type: DIP Product Length (mm): 9.4 Product Depth (mm): 9.4 Product Height (mm): 7.11
