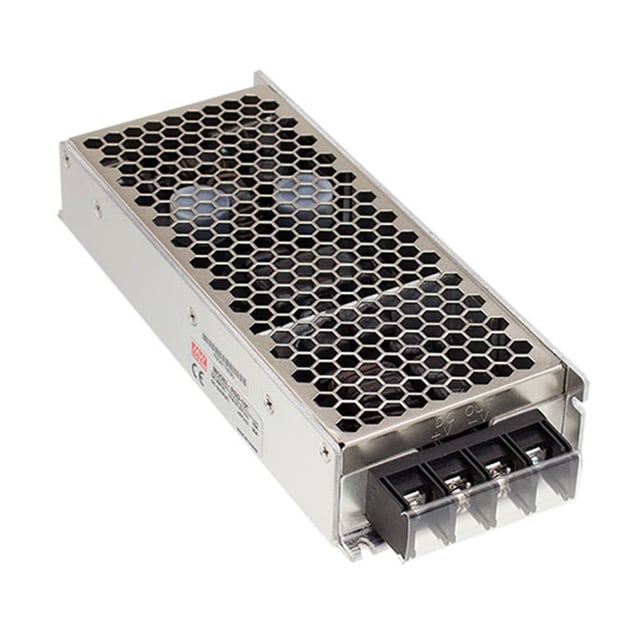

Mean Well Dc-Dc Converter, 12V, 12.5A - RSD-150D-12

<p><b>Features:</b></p> <p>Compliance to EN50155 and EN45545-2 railway standard</p> <p>2:1 wide input range</p> <p>Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity</p> <p>4000VDC I/O isolation</p> <p>Cooling by free air convection</p> <p>Half encapsulated</p> <p>Built-in constant current limiting circuit</p> <p>1U low profile 36mm</p> <p>All using 105ºC long life electrolytic capacitors</p> <p>LED indicator for power on</p> <p>100% full load burn-in test</p> <p>3 years warranty</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:B:Continuous: 16.8~31.2VDC; 1 SEC:14.4~33.6VDC; C:Continuous: 33.6~62.4VDC; 1 SEC:28.8~67.2VDC; D:Continuous: 67.2~143VDC; 1 SEC:57.6~154VDC</p> <p>AC inrush current (Typ.): B: 45A~24VDC; C: 45A~48VDC ;D: 45A~110VDC</p> <p>AC adjustment range: 5V: 0~30A, 12V: 0~12.5A, 24V: 0~6.3A</p> <p>Over voltage protection: 5V: 5.75~7V ,12V: 13.8~16.2V, 24V: 27.6~32.4V, ,Protection type :Shut down o/p voltage , re-power on to recover</p> <p>Overload protection: 105~135% rated output power , Protection type: Constant current limiting, recovers automatically after fault condition removed</p> <p>Over temperature protection: Shut down o/p voltage, recovers automatically after temperature goes down</p> <p>Withstand voltage:I/P-O/P: 4KVDC ,I/P-F/G: 2.5KVDC ,O/P-F/G: 2.5KVDC</p> <p>Working temperature: -40 ~ +55ºC(no derating) ; +70ºC@ 60% load by free air convection ; +70ºC no derating with external base plate , TX class compliance</p> <p>Safety standards:IEC60950-1 (LVD), EAC TP TC 004 approved</p> <p>EMC standards: Compliance to EN55032(CISPR32) Conduction Emission : Class A, Radiation Emission :Class B ,Compliance to EN61000-4-2,3,4,5,6,8,light industry level ,criteria A,EAC TP TC 020</p> <p>Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25ºC/70% RH</p> <p>Dimension (LxWxH) (mm):189x 77x 36</p>

Mingweft power suppliers worldwide (DC output) ranked the third and the top 2 power plants mostly use ODM/OEM as the main source of revenue, while 99% of the proceeds come from standard power supply, is a power supply manufacturer with its own brand - MEAN WELL as the main operating strategy. The product is highly efficient and high quality and is generally covered by 3 years warranty

<b>Features</b><br>Compliance to EN50155 and EN45545-2 railway standard<br>2:1 wide input range<br>4000VDC I/O isolation<br>Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.(RSD-150/200/300)<br>Cooling by free air convection<br>Built-in constant current limiting circuit<br>1U low profile<br>All using 105℃ long life electrolytic capacitors<br>Half encapsulated<br>100% full load burn-in test<br>3 years warranty

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!
