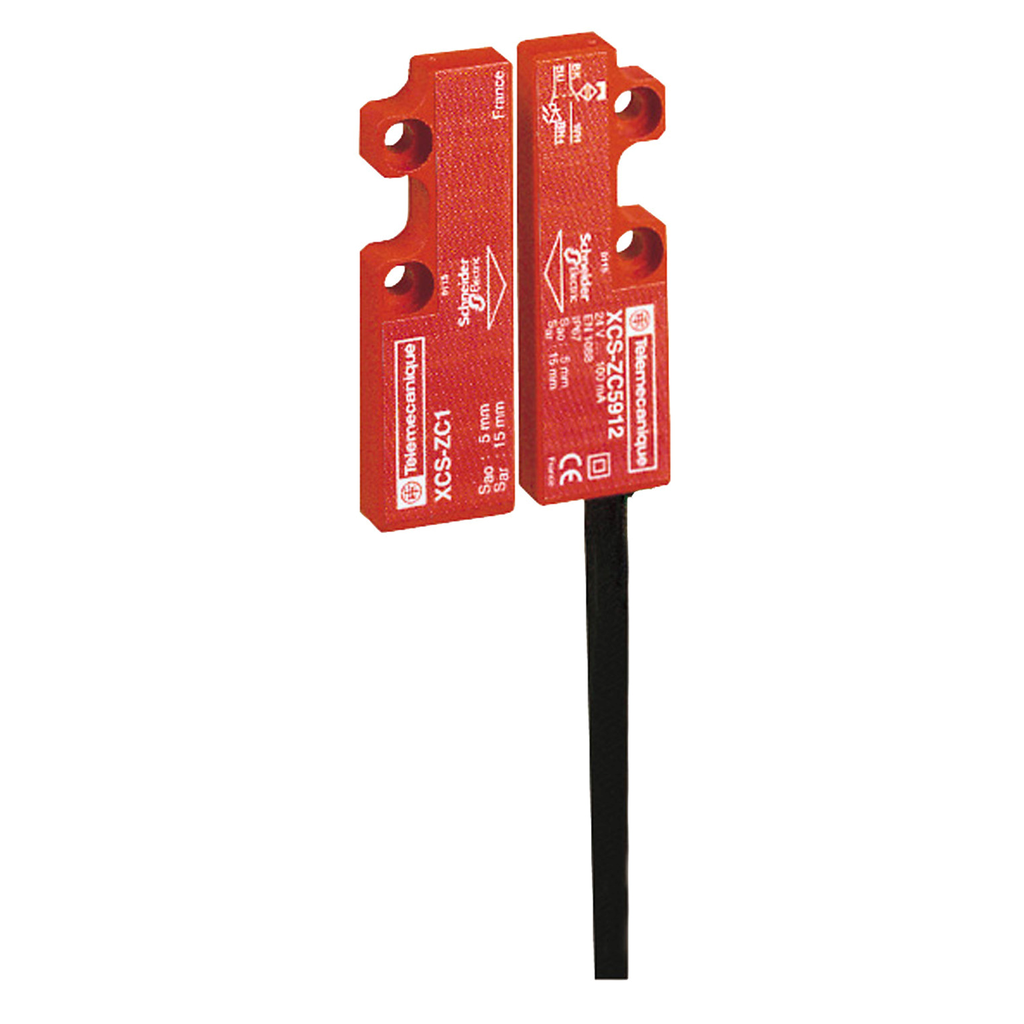

Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMC, 2 NC, staggered, 5 m | Mayer Electric

SQUARE D . SQDXCSDMC7905

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00Telemecanique Safety switches XCS
Attribute0124 V DC
Attribute025 m
Attribute03coded magnetic switch
Attribute04XCSDMC
Attribute05rectangular, compact
Attribute06plastic
Attribute0751 x 16 x 7 mm
Attribute082 NC
Attribute09staggered
Attribute10pre-cabled
Attribute114 x 0.25 mm?
Attribute123 directions
Attribute13, Attribute27100 V DC
Attribute142
Attribute1518 months
Attribute16100 mA
Attribute1751 mm
Attribute18150 Hz
Attribute19500 mA external cartridge fuse gG (gl)
Attribute200.1...100 mA
Attribute2115 mm
Attribute22rhodium
Attribute231000 MOhm
Attribute2410 Ohm
Attribute250.101 kg
Attribute262.5 kV EN/IEC 60947-5-1
Attribute285 mm
Attribute29PVC
Attribute3010 VA
Attribute31B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Attribute32thermoplastic PBT
Attribute3316 mm
Attribute347 mm
Attribute351200000 cycles
Attribute36can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Attribute37, Attribute38, Attribute39, Attribute42Yes
Attribute40Free of Substances of Very High Concern above the threshold
Attribute41Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute43Pro-active compliance (Product out of EU RoHS legal scope)
Attribute44UL || CSA
Attribute45-25-85 ?C
Attribute46CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/ISO 12100 || EN/IEC 60204-1 || UL 508 || ISO 14119
Attribute4730 gn 11 ms IEC 60068-2-27
Attribute4810 gn 10-150 Hz)IEC 60068-2-6
Attribute49IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529
Attribute50-40-85 ?C
Attribute51class II EN/IEC 61140
Attribute520.3 mT
Attribute53TH
AttributeKey00Range Of Product
AttributeKey01[Ue] Rated Operational Voltage
AttributeKey02Cable Length
AttributeKey03Product Or Component Type
AttributeKey04Component Name
AttributeKey05Design
AttributeKey06Material
AttributeKey07Size
AttributeKey08Contacts Type And Composition
AttributeKey09Contact Operation
AttributeKey10Electrical Connection
AttributeKey11Cable Composition
AttributeKey12Approach Directions
AttributeKey13[Ui] Rated Insulation Voltage
AttributeKey14Number Of Poles
AttributeKey15Warranty
AttributeKey16Maximum [Ie] Rated Operational Current
AttributeKey17, height_AttribHeight
AttributeKey18Switching Frequency
AttributeKey19Short-Circuit Protection
AttributeKey20Switching Capacity In Ma
AttributeKey21[Sar] Assured Tripping Distance
AttributeKey22Contacts Material
AttributeKey23Insulation Resistance
AttributeKey24Resistance Across Terminals
AttributeKey25, Weight_AttribNet Weight
AttributeKey26[Uimp] Rated Impulse Withstand Voltage
AttributeKey27Maximum Switching Voltage
AttributeKey28[Sa] Assured Operating Distance
AttributeKey29Cable Material
AttributeKey30Breaking Capacity
AttributeKey31Safety Reliability Data
AttributeKey32Enclosure Material
AttributeKey33, width_AttribWidth
AttributeKey34, length_AttribDepth
AttributeKey35Electrical Durability
AttributeKey36Safety Level
AttributeKey37Rohs Exemption Information
AttributeKey38Mercury Free
AttributeKey39Toxic Heavy Metal Free
AttributeKey40Reach Regulation
AttributeKey41California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey42Reach Free Of Svhc
AttributeKey43Eu Rohs Directive
AttributeKey44Product Certifications
AttributeKey45Ambient Air Temperature For Operation
AttributeKey46Standards
AttributeKey47Shock Resistance
AttributeKey48Vibration Resistance
AttributeKey49Ip Degree Of Protection
AttributeKey50Ambient Air Temperature For Storage
AttributeKey51Electrical Shock Protection Class
AttributeKey52Maximum Sensitivity To Magnetic Fields
AttributeKey53Protective Treatment
DimensionUnitmm
Extra Product NameCoded magnetic switch, Telemecanique Safety switches XCS, XCSDMC, 2 NC, staggered, 5 m | Mayer Electric
UPC3389110971736
Weight0.101
WeightUnitkg
depth, length7.0
height51.0
jsonUrlData/Product/SQUARE-D-Coded-magnetic-switch-Telemecanique-Safety-switches-XCS-XCSDMC-2-NC-staggered-5-m-3389110971736
jsonUrlData2524c7e94-4c50-4374-aa0a-aeea00584d50
moq, multiple, tierMinQty11
MPN, SKUSQDXCSDMC7905
qtyInStock0
tierPrice1125.79
width16.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXCSDMC7905111 @ $125.79
