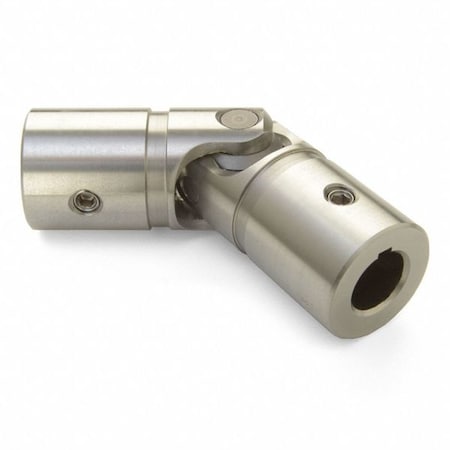

Universal Joint, Coupling Size USSK28, Overall Length 5 in, Maximum Bore Diameter 1 in, Maximum Operating Angle 45 Degrees , Yoke Length 2 1/2 in, Boot Material Nitrile, Bore Diameter 1 in, Number of Joints Single, Joint Diameter 1 3/4 in, Maximum Torque 2,100 in-lb, Maximum Speed 1,000 RPM, U-Joint Material Stainless Steel, Joint Type Pin & Block, Booted No, Outside Diameter 1 3/4 in, Keyway Depth 3/16 in, Keyway Width 1/4 in, Length through Bore 1 5/8 in, Break Torque 10,500 in-lb

Belden . USSK28-16-10-SS

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBelden
Attribute002 1/2 in
Attribute015/8 in
Attribute021/4 in
Attribute03, Attribute041 in
Attribute055/16"-18
Attribute063/16 in
Attribute071 5/8 in
Attribute08, Attribute091 3/4 in
Attribute10USSK28
Attribute11+0.0010/-0.0000 in
Attribute12, Attribute19Stainless Steel
Attribute13Dust/Water, Self Lubricate
Attribute1410,500 in-lb
Attribute15Pin & Block
Attribute16Corrosion Resistant
Attribute172,100 in-lb
Attribute18Machinable
Attribute20Single
Attribute21416
Attribute22Inch
Attribute2345 Degrees
AttributeKey00Yoke Length
AttributeKey01Minimum Bore Diameter
AttributeKey02Keyway Width
AttributeKey03Maximum Bore Diameter
AttributeKey04Bore Diameter
AttributeKey05Screw Thread Size
AttributeKey06Keyway Depth
AttributeKey07Length through Bore
AttributeKey08Joint Diameter
AttributeKey09Outside Diameter
AttributeKey10Coupling Size
AttributeKey11Bore Tolerance
AttributeKey12Screw Material
AttributeKey13For Environment
AttributeKey14Break Torque
AttributeKey15Joint Type
AttributeKey16Resistance Properties
AttributeKey17Maximum Torque
AttributeKey18Bore Type
AttributeKey19U-Joint Material
AttributeKey20Number of Joints
AttributeKey21U-Joint Material Grade
AttributeKey22System of Measurement
AttributeKey23Maximum Operating Angle
CategoryId, CategoryIdL36026
CategoryIdL131
CategoryIdL24596
CategoryL1Power Transmission
CategoryL2Bearings, V-belts & Power Transmission Equipment
CategoryL3Couplings, Collars, & Adapters
CategoryL4Universal Joints
DimensionUnitinch
GTIN, UPCNone
GraingerSku808D49
UnitOfMeasureEA
Weight2.39
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height, width1.7
jsonUrlData924526ffbdad25e5923b
length5
moq, multiple, qtyInStock, qtyInStockOverride, tierMinQty11
MPNUSSK28-16-10-SS
qtySourceqtyInStockOverride
SKUG809253840
snippetUniversal Joint, Coupling Size USSK28, Overall Length 5 in, Maximum Bore Diameter 1 in, Maximum Operating Angle 45 Degrees , Yoke Length 2 1/2 in, Boot Material Nitrile, Bore Diameter 1 in, Number of Joints Single, Joint Diameter 1 3/4 in, Maximum Torque 2,100 in-lb, Maximum Speed 1,000 RPM, U-Joint Material Stainless Steel, Joint Type Pin & Block, Booted No, Outside Diameter 1 3/4 in, Keyway Depth 3/16 in, Keyway Width 1/4 in, Length through Bore 1 5/8 in, Break Torque 10,500 in-lb
tierPrice1558.99
urlhttps://www.zoro.com/belden-universal-joint-ussk28-1-bore-dia-ussk28-16-10-ss/i/G809253840/

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG8092538401111 @ $558.99
Digi-Key136007321211 @ $711.43
