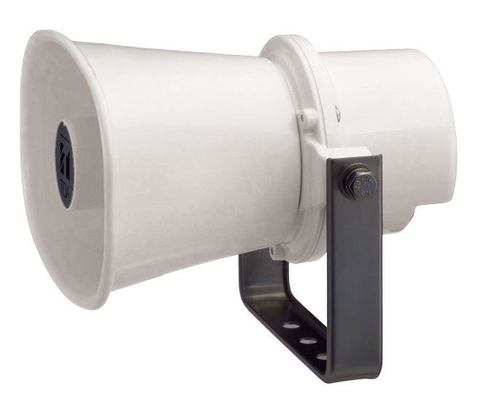

TOA Electronics Q-SC-P620 | Powered Horn Speaker, 20W-101027

TOA Q-SC-P620 Compact Powered Horn Speaker, Integrated 20W Power Amplifier which Utilises Latest Class D Technology, Internal Volume Control to Allow On-site Tuning, Weatherproof to IP65 Rating<br><br> The Q-SC-P620 is a highly intelligible and compact horn speaker with a built-in 20W digital power amplifier, that provides public address announcement and remote paging for network video surveillance applications. This powered horn speaker can operate at extreme temperature. It comes with powder-coated finish and stainless steel screws to ensure its weatherproof capability. Ideal choice for indoor and outdoor applications in train stations, airports and many more.<br><br> Key Features<br> - Integrated 20W power amplifier which utilises latest Class D technology<br> - Switchable Gain: 8dB, 16dB, 24dB and 32dB<br> - Internal volume control to allow on-site tuning<br> - Integration to CCTV systems possible with the majority of IP CCTV systems equipped with an audio line output<br> - Weatherproof to IP65 rating<br><br> Specifications<br> - Power Source: 12V DC, 2A (DC Socket "+" Type A: 5.5 x 2.1mm)<br> - Power Consumption: 15W (1.25A) at Rated output/25W (2.10A) at Maximum output<br> - Input: 0dB, 10kΩ, Unbalanced (RCA plug)<br> - Signal Gain: 8, 16, 24 or 32 dB (Factory pre-set to 16dB)<br> - Volume Adjustment: Internal volume control (Factory pre-set to maximum position)<br> - Sound Pressure Level: 113dB (1W, 1m at 500 Hz to 2.5 kHz peak level) Max. SPL (above 120dB)<br> - Frequency Response: 250 - 10,000 Hz<br> - Operating Temperature: -20°C to +55°C<br> - Dust/Water Protection: IP 65<br> - Finish: Horn Flare: HIPS resin, white (RAL9010 equivalent)/Reflector horn and case: ABS resin, white (RAL9010 equivalent)/Bracket, screws & bolts: Stainless steel<br> - Cable Cord: Length: 2m Flying Lead (RCA plug) & DC socket ("+")<br> - Dimensions: 292 (W) x 230 (H) x 280 (D) mm<br> - Weight: Approx. 1.8 kg<br><br>
