120003.00 1Hp 1740Rpm 143 Dp 115/208-230V 1Ph 60Hz Cont 40C 1.15Sf Rigid M143 C17Db2K General

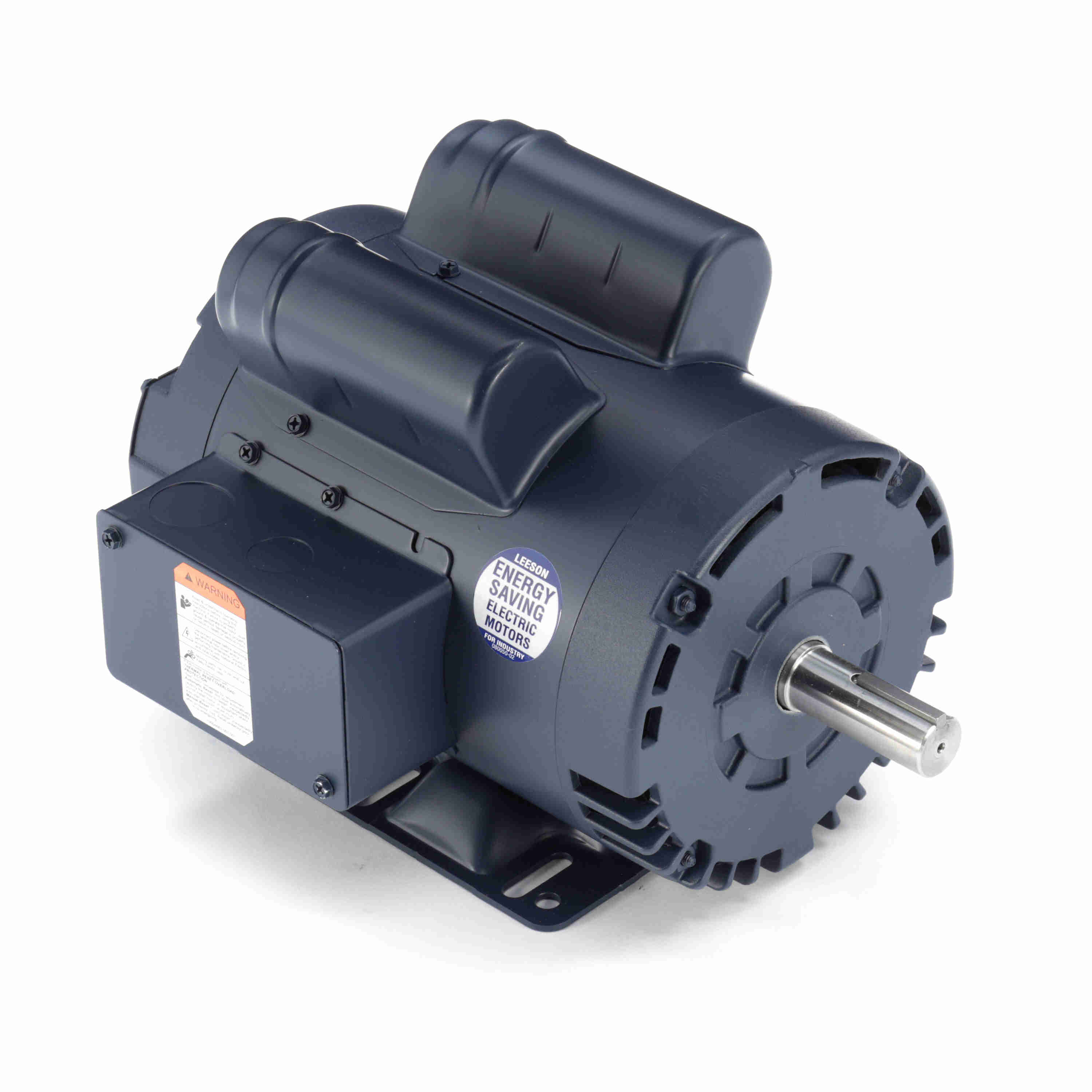

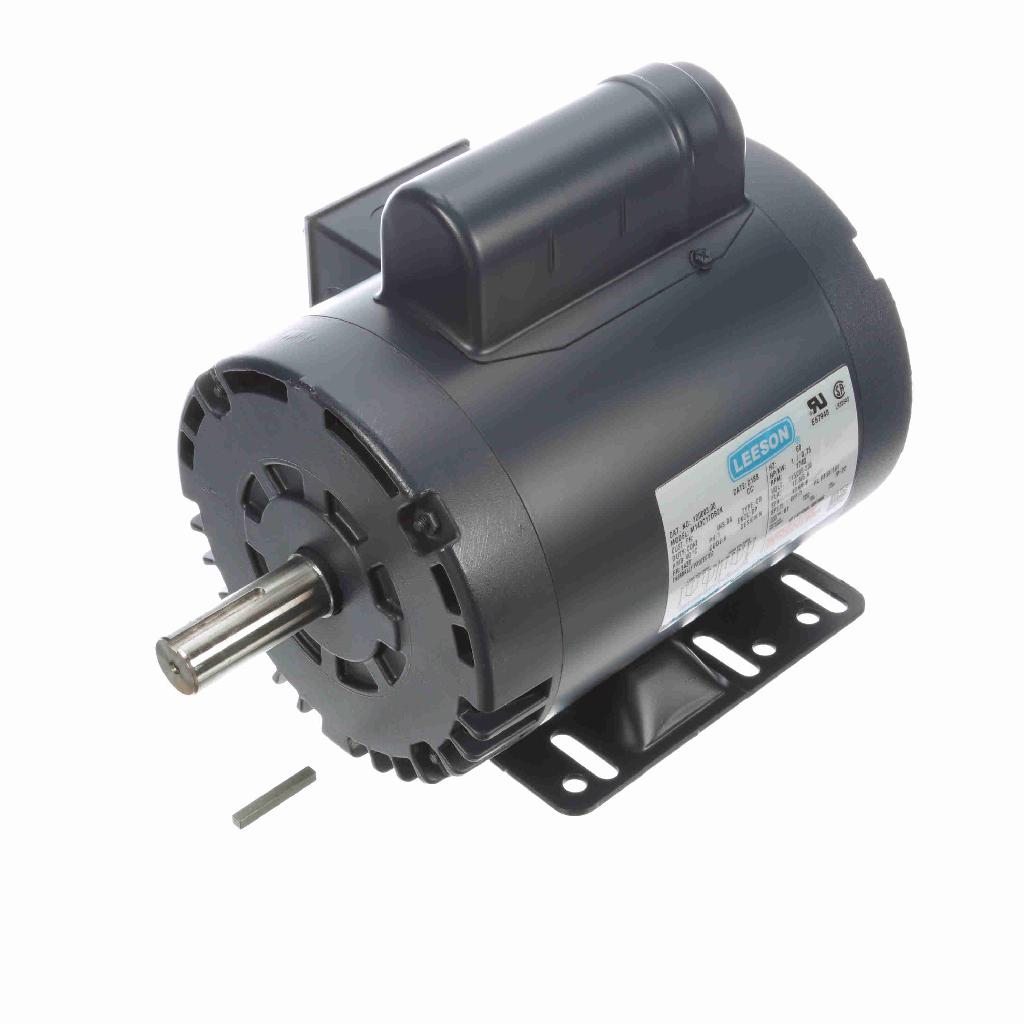

The 1 HP Leeson Compressor Duty Electric Motor is a dependable and powerful single-phase motor designed especially for compressors requiring high breakdown torque and rugged mechanical construction. UL listed. CSA certified. Manual Overload Protection Yes, HP 1, Shank Diameter in. 7/8, Hertz 60, Rated RPM 1,800, Frame Type 143T, Amps 6.4, CSA Yes, UL Yes, Volts 115/208-230. Prelubricated, double-shielded, amply-sized ball bearings accommodate varying belt loads and tension High-efficiency designs deliver energy savings High starting and breakdown torque Reversible rotation direction adds versatility Capacitor start offers increased motor starting torque, allowing the motor to be cycled on and off quickly Continuous duty operation Service factor of 1.15 Rigid base allows for mounting on equipment Open drip proof ODP housing allows for venting and prevents drops of liquid from falling into the motor Manual reset overload protects against motor overload and automatic resets Model Number: 120003.00. Size: 1. Age Group: Adult.
