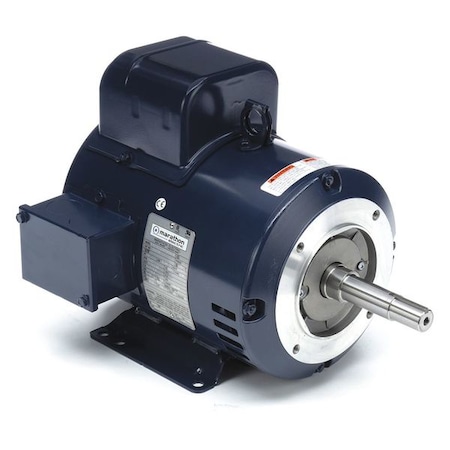

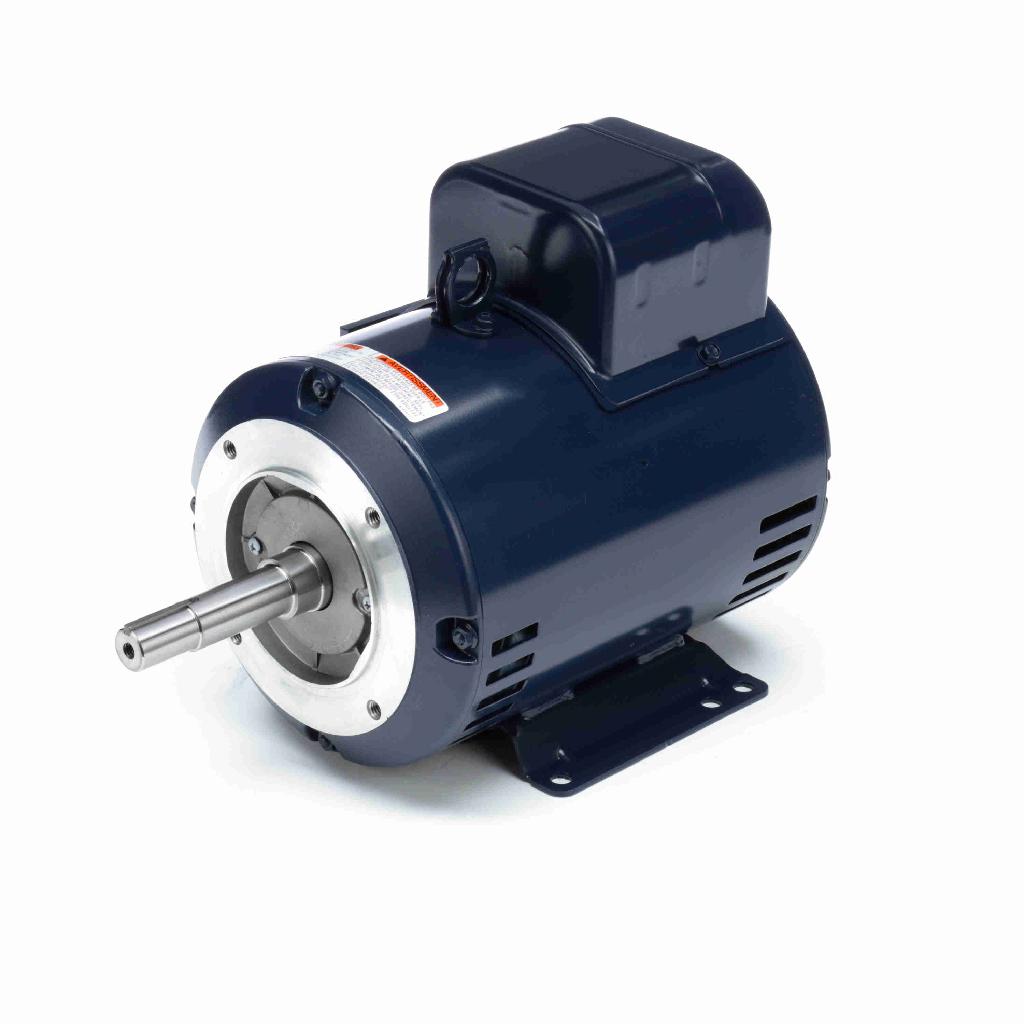

Close-Coupled Pump Motor, Bolt Circle Dia. 5 7/8 in, Conduit Box Position F1, Duty Cycle Continuous, Frame 184JM, Hz 60, Full Load Amps 33.5/16.8, Height 11 3/16 in, HP 3, Ins. Class F, Inverter Rated No, Length Less Shaft 11 9/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G5747901 | 1 | 1 | 1 | 1 @ $918.99 |
| 184TCDW7047-MARA | 1 | 1 | 1 @ $873.50 | ||
| 184TCDW7047 | 1 | -2 | 1 | 1 @ $1324.34 | |
| AF8LFE | 1 | 1 | 1 @ $1910.29 | ||
| Grainger | 26ZY38 | 1 | 1 | ||
| Z407A | 1 | 1 | 1 @ $0.00 | ||
| 184TCDW7047 | 1 | 10 | 1 | 1 @ $1063.79 | |
| sustainablesupply.com | C2791964 | 1 | Add to Cart | 1 | 1 @ $1549.06 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Marathon,3 HP Close-Coupled Pump Motor, 1 Phase, 1800 RPM, 115/230 V, 184JM Frame, ODP
Brand: Marathon
Details
- NEMA JM pump shaft dimensions Mechanically locked on shaft end Capacitor start design for high starting torque F1 mounting only, cannot reassemble to F2 Continuous duty
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | ELECTRONIC_COMPONENT |
| Model | 184TCDW7047 |
| Part number | 184TCDW7047 |
| Items per pack | 1 |
| Label | Regal Beloit |
| Manufacturer | Regal Beloit |
Catalog
| Feature | Technical Specification Item Close-Coupled Pump Motor Motor Application Pump Motor Sub |
|---|---|
| Category | Tools & Home Improvement |
| MPN | 184TCDW7047 |
| Product group | BISS |
| Product type | MECHANICAL_COMPONENTS |
| Manufacturer | Marathon Electric / Regal Beloit |
Marathon Motors 3 HP Close-Coupled Pump Motor,Capacitor-Start,1747 Nameplate RPM,115/230 Voltage,184JM
Brand: CAI - MARATHON MOTORS
The Marathon Motors close-coupled pump motor is a 3-phase continuous-duty motor for use in commercial and industrial pumping applications. This TEFC motor is suitable for use in dirty, dusty, and nonhazardous applications. JM threaded Open dripproof Capacitor-start<br /><br /> Item: Close-Coupled Pump Motor<br /> Motor Application: Pump<br /> Motor Sub Application: Close-Coupled Pump<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 3<br /> Nameplate RPM: 1747<br /> Frame: 184JM<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 115/230<br /> Full Load Amps: 33.5/16.8<br /> Phase: 1<br /> Hz: 60<br /> Motor Mounting Type: Face/Base<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 7/8"<br /> Shaft Length: 4-1/4"<br /> Motor Shaft Design: JM Threaded<br /> Length Less Shaft: 11-9/16"<br /> Overall Length: 15-13/16"<br /> Ins. Class: F<br /> RPM Range: 1701-1800<br /> Duty: Continuous<br /> Nominal Efficiency: 90.2%<br /> Motor Efficiency Group: NEMA Premium Efficient<br /> Inverter Rated: No<br /> Standards: UL Recognized (E49747), CSA Certified (LR2025)<br />
