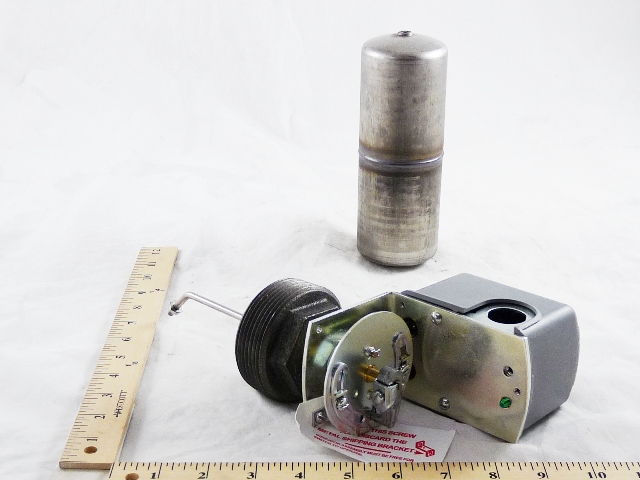

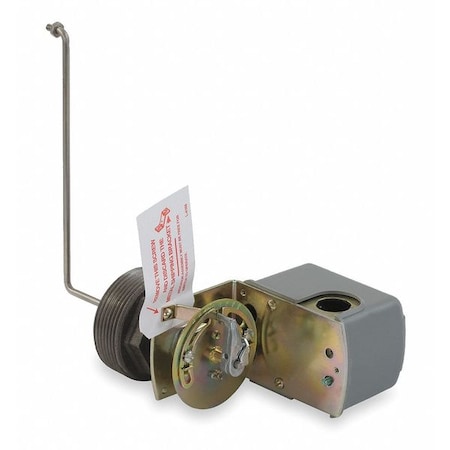

<p>Telemecanique 9037HG32Z20 Float Switch</p><p>Square D Float Switch, 2-Pole Type H, Series: 9037, 575 VAC, Screw Clamp Connection, NEMA 1 Enclosure, -22 to 220 deg F Operating, Screw-In Bushing Mounting</p><p><strong>Additional Description:</strong> TELE-9037HG32Z20 FLOAT SWITCH 575VAC 2HP H +OPTIONS</p><p><strong>Catalog Description:</strong> Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2NC DPST DB contacts</p>

<p><b>Description</b><ul><li>Close On Rise Mounting: Side Float Position: Left Float Rod Angle: 90 Degrees Float Travel: 4-1/2" Tank Connection Size: 2-1/2" MNPT NEMA Rating: 1 Contact Form: DPST Operating Temp. Range: 250 Degrees F Max Max. Pressure: 50 psi Overall Length: 16.06" Float Material: Stainless Steel Float Length: 7.13" Float Dia: .2.58" Stem Material: Stainless Steel Stem Length: 4.37" Height: 5.98" Width: 2.88" Max. Current: 600A Max. Voltage: 600 HP @ 1 Phase - 120V: 2 HP @ 1 Phase - 240V: 3 HP @ 3 Phase - 240V: 5 Body Material: Steel Conduit Size: 3-1/2" Electrical Connections: Screw Clamp Features: Viton Packing, Suitable for Applications Up To 250 Deg Includes: Viton Packing - Rod and Float</li><li> Switch Action: Close on Rise </li><li> Connection Type: Threaded </li><li> Max Pressure (PSI): 50 </li><li> Max Voltage: 600 </li><li> Poles: 2 </li><li> Amperage: 10 </li><li> Tank Connection: 2-1/2" MNPT</li></ul></p>

This liquid level switch mounts horizontally. It is designed to automatically control the liquid level in closed tanks.<br /><br /> Item: Tank Liquid Level Switch<br /> Switch Function: Close On Rise<br /> Mounting: Side<br /> Float Position: Left<br /> Float Rod Angle: 90 Degrees<br /> Float Travel: 4-1/2"<br /> Tank Connection Size: 2-1/2" MNPT<br /> NEMA Rating: 1<br /> Contact Form: DPST<br /> Operating Temp. Range: 250 Degrees F Max<br /> Max. Pressure: 50 psi<br /> Overall Length: 16.06"<br /> Float Material: Stainless Steel<br /> Float Length: 7.13"<br /> Float Dia.: 2.58"<br /> Stem Material: Stainless Steel<br /> Stem Length: 4.37"<br /> Height: 5.98"<br /> Width: 2.88"<br /> Max. Current: 600A<br /> Max. Voltage: 600<br /> HP @ 1 Phase - 120V: 2<br /> HP @ 1 Phase - 240V: 3<br /> HP @ 3 Phase - 240V: 5<br /> Body Material: Steel<br /> Conduit Size: 3-1/2"<br /> Electrical Connections: Screw Clamp<br /> Features: Viton Packing, Suitable for Applications Up To 250 Deg<br /> Includes: Viton Packing - Rod and Float<br />

<p><ul><li>Close On Rise</li><li>Mounting: Side</li><li>Float Position: Left Float</li><li>Rod Angle: 90 Degrees</li><li>Float Travel: 4-1/2"</li><li>Tank Connection Size: 2-1/2" MNPT</li><li>NEMA Rating: 1</li><li>Contact Form: DPST</li><li>Operating Temp. Range: 250 Degrees F Max</li><li>Max. Pressure: 50 psi</li><li>Overall Length: 16.06"</li><li>Float Material: Stainless Steel</li><li>Float Length: 7.13"</li><li>Float Dia: .2.58"</li><li>Stem Material: Stainless Steel</li><li>Stem Length: 4.37"</li><li>Height: 5.98"</li><li>Width: 2.88"</li><li>Max. Current: 600A</li><li>Max. Voltage: 600</li><li>HP 1 Phase - 120V: 2</li><li>HP 1 Phase - 240V: 3</li><li>HP 3 Phase - 240V: 5</li><li>Body Material: Steel</li><li>Conduit Size: 3-1/2"</li><li>Electrical Connections: Screw Clamp</li><li>Features: Viton Packing, Suitable for Applications Up To 250 Deg</li><li>Includes: Viton Packing - Rod and Float</li></ul></p><p><b>Specifications: </b><ul><li>Switch Action: Close on Rise</li><li>Connection Type: Threaded</li><li>Max Pressure (PSI): 50</li><li>Max Voltage: 600</li><li>Poles: 2</li><li>Amperage: 10</li><li>Tank Connection: 2-1/2" MNPT</li></ul></p>
