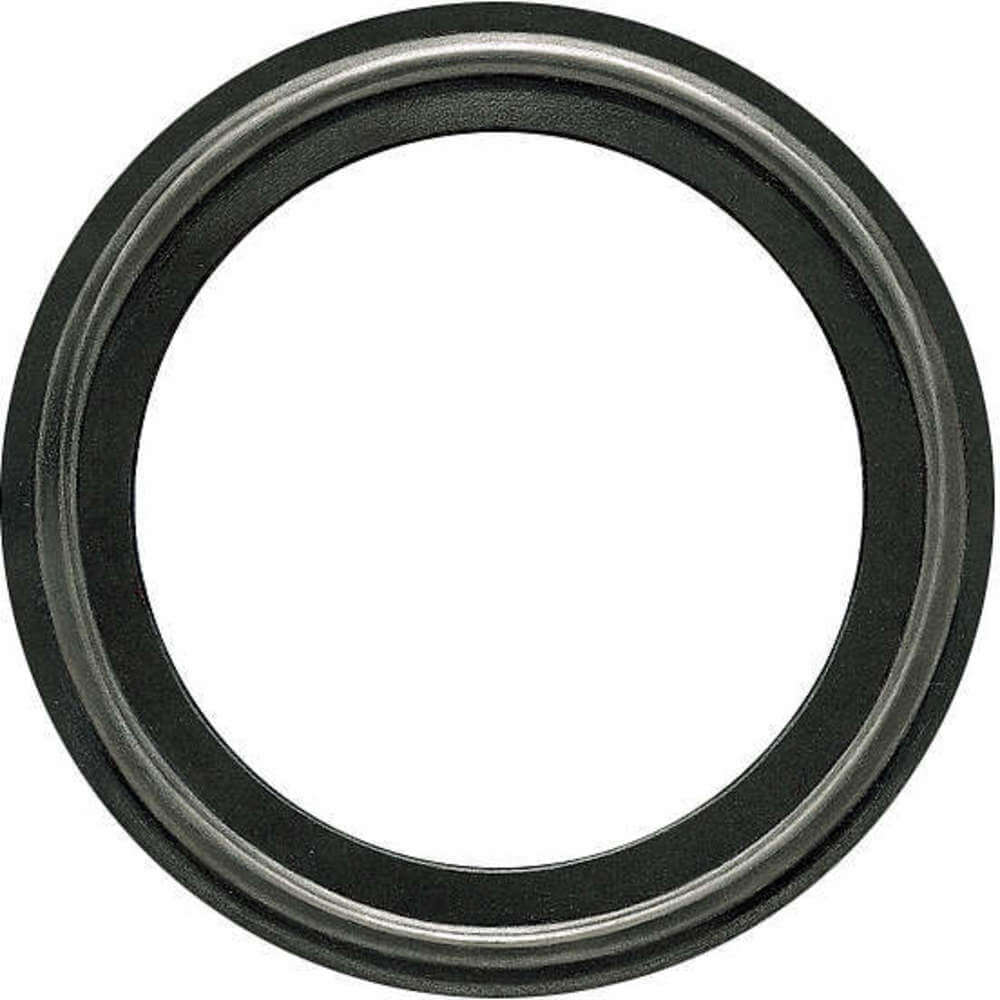

40MPSFY-400 - Type I Tri-Clamp Gasket - FKM - Rubber Fab

'Gasket, Tube Size 4 In, Tri-Clamp Connection, Material of Construction FKM, Temp. Range -30F to 400F, Standards FDA, CLASS VI'

FKM Tri-Clamp Gaskets are specified by many process equipment manufacturers and are generally suitable for these applications, however service life must be considered and a preventative maintenance program must be in place to mitigate degradation. While acceptable, we do not recommend FKM Gaskets for continuous use in SIP (steam in place) procedures. With that said, FKM Gaskets have excellent compatibility with strong acids and maintain a broad range of operating temperatures from -30 deg F to 400 deg F.<br><br>Storing FKM Gaskets:<br>- Shelf Life: 10 Years from cure date<br>- Store in original packaging in clean and dry warehouse<br>- Do not expose to direct sunlight<br>- Keep more than 6' away from electric motors<br>- Maintain temperature between 65 deg F and 85 deg F<br><br>FKM Gasket Standards Compliance:<br>- CFR 21, 177.2600<br>- U.S. Pharmacopeia Class VI Certification<br>- USDA Hazard Analysis and Critical Control Points<br>- Cytotoxicity Criteria<br>- USDA and 3A Standards<br>- ASME-BPE Standards for Type I and Type II<br>- ADI Free (Animal Derived Ingredient Free)<br>- Current Good Manufacturing Practices (CGMP)<br><br>FKM Tri-Clamp Gasket Features:<br>- Color Code: one white dot, one yellow dot<br>- -30 deg F to 400 deg F Temperature Range<br>- Acceptable for steam applications<br><br>FKM Material is also available in:<br>- Type II Flanged Tri-ClampGasket<br>- Screen Gaskets<br>- Sock Gaskets<br>- Orifice Plate Gaskets<br>- Gauge Guards<br>- O-Rings<br>- Mini Steam Trap Orifice Plates<br>- ANSI 150# Flange Gasket<br>- ANSI 300# Flange Gasket<br>- Bevel Seat Gaskets<br>- I-Line Gaskets<br>- John Perry Gaskets<br>- Q-Line Gaskets<br>- DIN/ISO<br>- X-Ray Detectable<br>- Sheets<br>- Custom Gaskets, Profiles, Cord, Scrapers
