ELK ERPB28RAK @ KSCdirect Page 1

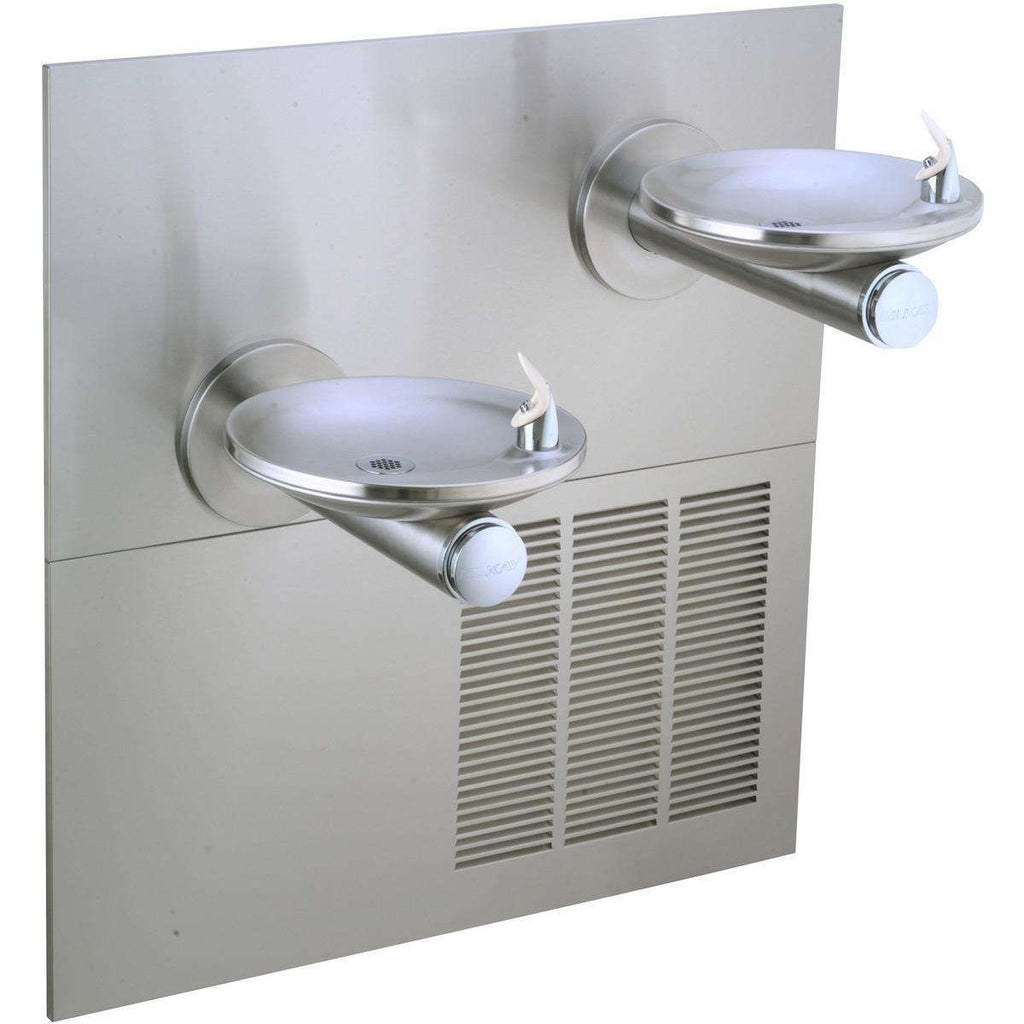

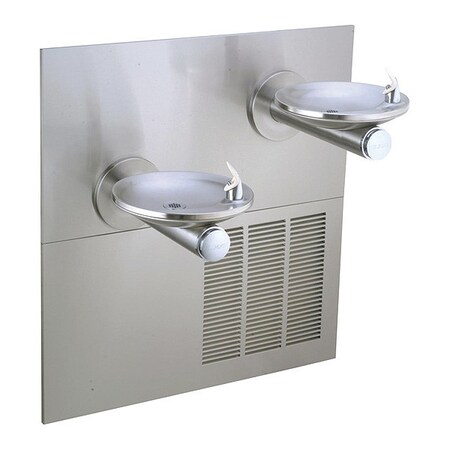

Product Features: Covered under Elkay's 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components Bi-Level drinking fountain with self contained ADA cooler Electric refrigeration is a combination tube-tank running single phase Capacity of 50℉ drinking water, based upon 80℉ inlet water and 90℉ ambient Integrated Silver Ion Protection in key areas Vandal-resistant, easy to operate front push-button control Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure Construction: #18 gauge, 300 series nickel bearing stainless steel basin polished to a lustrous satin finish Contoured basin offers large area to minimize splashing when in use Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position Stainless Steel Basin - One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners Frame furnished to allow flush mounting to finished wall - mounting frame ordered separately Removable louvered ventilating encloses refrigeration unit and plumbing grill encloses refrigeration unit and plumbing Cooling System: Motor Compressor - Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug Condenser - Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated Cooling Unit - Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material) Refrigerant Control - Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance Temperature Control - Enclosed adjustable thermostat is factory preset
