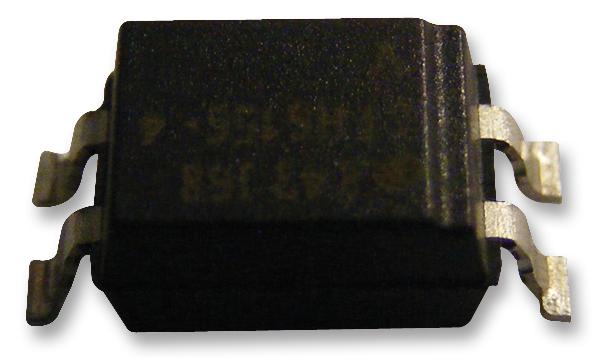

Vishay Optocoupler, Transistor, 4.42Kv, Smdip-4 Rohs Compliant: Yes - SFH6156-1T
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 69AH2289 | 1 | 1068 | 1 | 1 @ $0.89, 10 @ $0.59, 25 @ $0.52, 50 @ $0.45, 100 @ $0.39 |
| SFH6156-1T | 1000 | 3000 | 1000 | 1000 @ $0.18, 3000 @ $0.16 | |
| Allied Electronics | R1083209 | 1 | 1 | ||
 Radwell | SFH6156-1T | 1 | 1 | ||
| Digi-Key | 1731621 | 1 | 1 | 1 @ $0.77, 10 @ $0.68, 100 @ $0.52, 500 @ $0.41, 1000 @ $0.33, 2000 @ $0.30, 5000 @ $0.29 | |
| SFH6156-1T | 1 | 307 | 1 | 1 @ $0.80, 10 @ $0.64, 100 @ $0.43, 1000 @ $0.34, 10000 @ $0.34 | |
| 699-8219 | 10 | 10 | 10 @ $0.69, 50 @ $0.60, 100 @ $0.52, 250 @ $0.46, 500 @ $0.40 | ||
| Hotenda | H2745913 | 1 | 1 | 1 @ $0.29 | |
| Win Source | SFH6156-1T | 1 | 54 | 1 | |
| Future Electronics | 7510399 | 1000 | 5000 | 1000 | 1000 @ $0.11, 6000 @ $0.11 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Transistor Output Optocouplers Phototransistor Out Single CTR 40-80% (1 piece)
Brand: Vishay Semiconductors
Catalog
| Feature | Manufacturer: Vishay Product Category: Optocouplers RoHS: Input Type: DC Maximum Collector Emitter Voltage: 70 V Maximum Collector Emitter Saturation Voltage: 0.4 V Isolation Voltage: 5300 Vrms Current Transfer Ratio: 80 % Maximum Forward Diode Voltage: 1.65 V Maximum Input Diode Current: 60 mA Maximum Collector Current: 100 mA Maximum Power Dissipation: 150 mW Maximum Operating Temperature: + 100 C |
|---|---|
| Category | Industrial & Scientific |
| MPN | SFH6156-1T |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | Vishay Semiconductors |
SFH6156-1T, Optocoupler DC-in 1-CH Transistor DC-Out 4-Pin PDIP SMD T/R (100 Items)
Brand: Vishay
EU RoHS: Compliant ECCN (US): EAR99 Part Status: Active HTS: 8541.40.80.00 Automotive: No PPAP: No Output Type: DC Input Type: DC Output Device: Transistor Number of Channels per Chip: 1 Minimum Isolation Voltage (Vrms): 5300 Minimum Operating Temperature (°C): -55 Maximum Operating Temperature (°C): 100 Maximum Forward Voltage (V): 1.65 Maximum Collector-Emitter Voltage (V): 70 Maximum Current Transfer Ratio (%): 80 Standard: BSI|CSA|cUL|FIMKO|IEC|UL Maximum Collector Current (mA): 100 Maximum Collector-Emitter Saturation Voltage (mV): 400 Maximum Power Dissipation (mW): 150 Maximum Reverse Voltage (V): 6 Typical Forward Voltage (V): 1.25 Maximum Forward Current (mA): 60 Packaging: Tape and Reel Minimum Current Transfer Ratio (%): 40 Current Transfer Ratio Test Current (mA): 10 Typical Rise Time (us): 2 Typical Fall Time (us): 2 Standard Package Name: DIP Pin Count: 4 Supplier Package: PDIP SMD Mounting: Surface Mount Package Height: 3.81(Max) Package Length: 4.83(Max) Package Width: 6.81(Max) PCB changed: 4 Lead Shape: Gull-wing
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Model | SFH6156-1T |
| Part number | SFH6156-1T |
| Items per pack | 100 |
| Label | Vishay |
| Manufacturer | Vishay |
