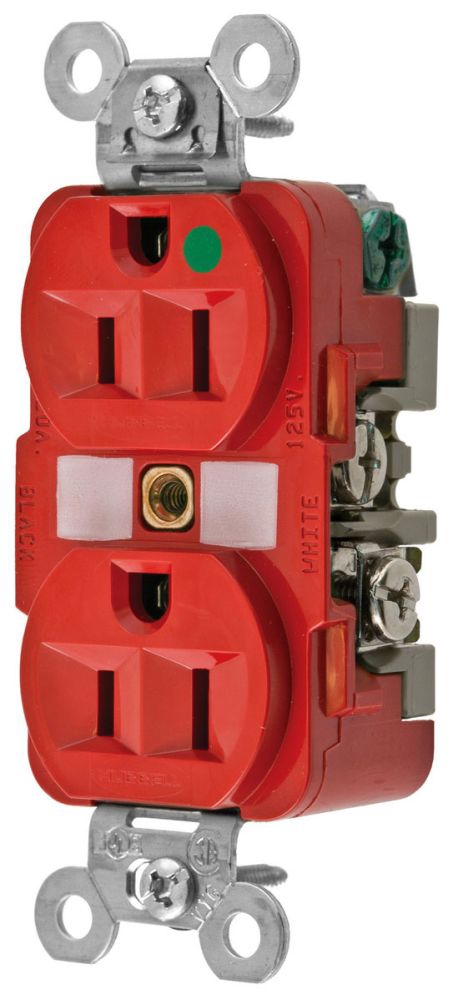

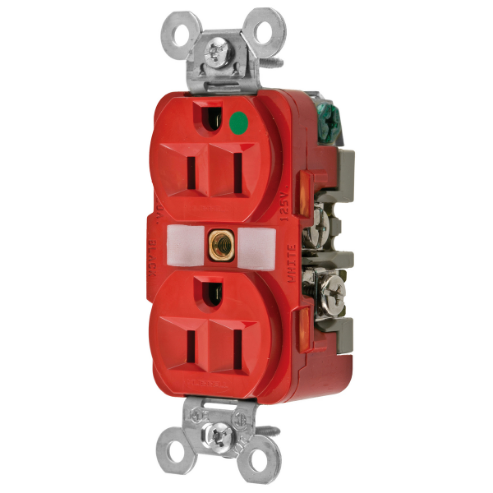

Hubbell Wiring Devices Dup Rcpt, Hg, 15A 125V, 5-15R, Rd - HBL8200RED

'Receptacle, Heavy Use Hospital Grade Application Environment, 15 Amps, 5-15R NEMA Configuration, Voltage 125VAC, Number of Poles 2, Number of Wires 3, Tamper Resistant No, Weather Resistant No, Surge Suppression No, Outlet Type Duplex, Mounting Type Flush, Phase 1, HP 0.5, Color Red, Material Thermoplastic Polyester, Wiring Method Back and Side, IP Rating 20, Power Indicator No, Standards UL Listed, CSA Certified, Number of Gangs 1'

This hospital grade receptacle is designed to withstand the severe conditions of abuse that are unique to hospital environments. Built with nickel-plated bypass contacts that increase contact pressure and help lower operating temperature. The four-point grounding system provides redundant grounding for low resistance ground continuity, and thermoplastic polyester (RTP) back is tough and heat-resistant. To quality for the hospital grade designation and use of the green dot symbol, UL requires product performance to specific levels. These levels form an established baseline below which no manufacturer can fall and still carry a green dot.<br /><br /> Item: Receptacle<br /> Type - Plugs and Receptacles: Straight Blade<br /> Application Environment: Heavy Use Hospital Grade<br /> Amps - Plugs and Receptacles: 15<br /> NEMA Receptacle Configuration - Plugs and Receptacles: 5-15R<br /> Voltage - Plugs and Receptacles: 125VAC<br /> Number of Poles: 2<br /> Number of Wires: 3<br /> Tamper Resistant: No<br /> Weather Resistant - Plugs and Receptacles: No<br /> Outlet Type - Plugs and Receptacles: Standard Duplex<br /> Mounting Type - Plugs and Receptacles: Flush<br /> Color - Plugs and Receptacles: Red<br /> Item - Plugs and Receptacles: Receptacle<br /> Wiring Method - Plugs and Receptacles: Back and Side<br /> Surge Suppression: No<br /> Material: Thermoplastic Polyester<br /> Phase: 1<br /> HP: 0.5<br /> IP Rating: 20<br /> Power Indicator: No<br /> Corrosion Resistant: No<br /> Number of Gangs: 1<br />
