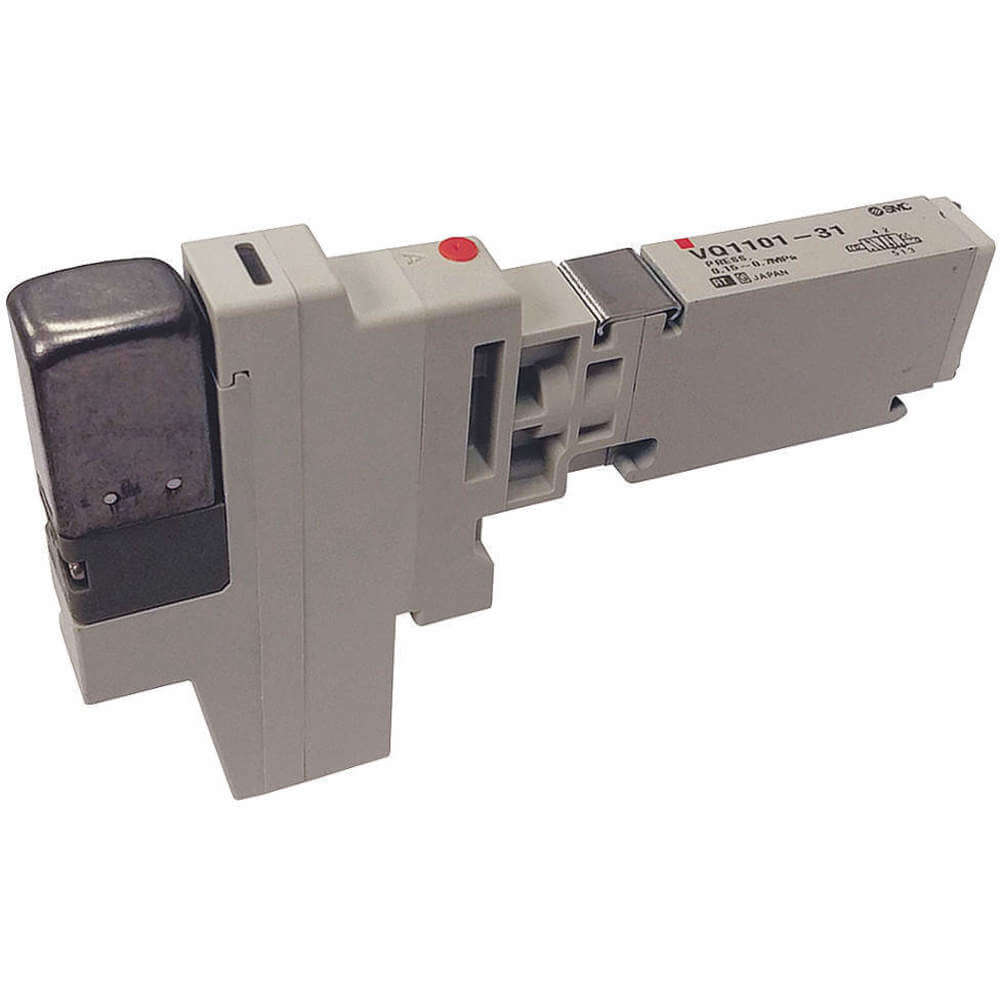

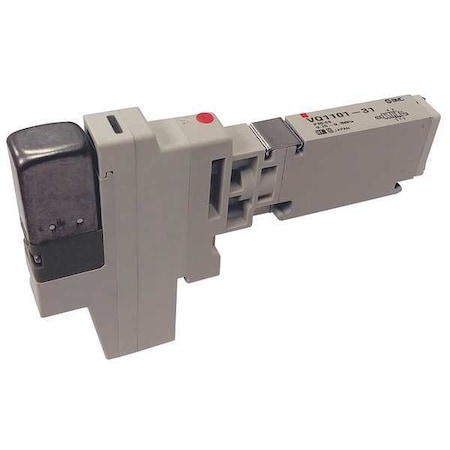

SMC VQ1101-31 4/5 Port Solenoid Valve

Technical Specification Item Solenoid Air Control Valve Valve Ways and Positions 5-Way/2-Position Voltage 110VAC Center Position Open Valve Actuator / Return Solenoid / Spring Max. CFM - Valves 7 Operational Pressure Range 15 to 105 psi Normally Open / Normally Closed Normally Open/Normally Closed Body Style Base Mounted Pilot Pressure 15 Coefficient of Volume 0.25 Electrical Connections Plug-In Shifting Technology Solenoid/Spring Power Consumption 1.3VA Ambient Temp. Range 14 Degrees to 122 Degrees F Override Non-Locking Push Overall Height 1-7/8 Overall Length 3-11/16 Overall Width 25/64 Pneumatic Valves Product Group Solenoid Air Control Valve This listing is for each. Body Style : Base Mounted Air Valve Type : 5-Way, 2-Position Valve Ways and Positions : 5-Way/2-Position Actuator/Return : Solenoid/Spring Power Consumption : 1.3 VA Overall Height : 1 7/8 in Overall Length : 3 11/16 in Pressure Range : 15 to 105 psi Normally Open / Normally Closed : Normally Open/Normally Closed Valve Actuator / Return : Solenoid / Spring Max. CFM - Valves : 7.0 CFM : 7 Override : Non-Locking Push Ambient Temp. Range : 14 Degrees to 122 Degrees F Shifting Technology : Solenoid/Spring Center Position : Open Voltage : 110V AC Item : Solenoid Air Control Valve Pilot Pressure : 15 Electrical Connections : Plug-In Overall Width : 25/64 in Operational Pressure Range : 15 to 105 psi Coefficient of Volume : 0.25 Standards : Center Line Pipe Center Size : Pipe Size : Seat Material : Valve Port Size : Includes : Valve Vacuum Range : Max. Operating Pressure Differential : Function : Length (In.) : ISO Class : Number of Valve Stations : Body Material : Number of Stations : Valve Configuration : Gasket Material : NPT Port (In.) : Pilot Port Size : Width (In.) : Height (In.) : NEMA Classification : For Use With : Orifice Dia. : Series : Cv : Air Inlet : Max. Fluid Temp. : Inlet Pressure : Min. Operating Pressure Differential : Vacuum Range : Valve Design : Country of Origin
