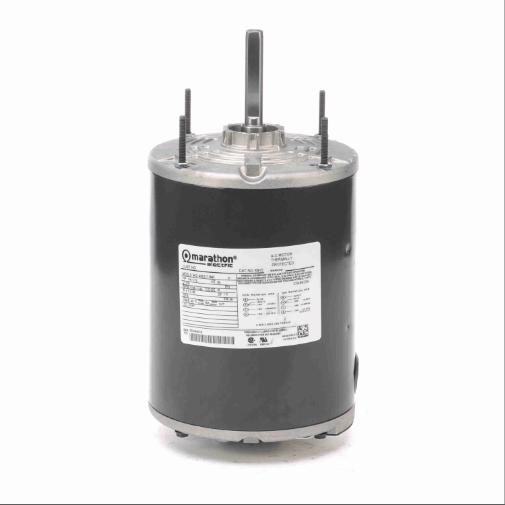

Marathon Motors 048S17T366 | Farm Duty Motor Split Phase Teao 1/4 Hp 1725 Rpm | 24TM12 | Raptor Supplies Worldwide

Help keep air moving through your poultry barn with this poultry fan motor. It features a totally enclosed air-over enclosure design, which remains dust-tight during operation to resist the ingress of dirt or airborne contaminants. It mounts within the airflow of the fan to stay cool. It also offers durability and long service life with ball bearings and a rolled steel frame.<br /><br /> Item - Farm Duty Motors: Agricultural Fan Motor<br /> Motor Application: Farm Duty<br /> Motor Sub Application: Poultry/Livestock Direct Drive Fan<br /> Motor Design: Split-Phase<br /> Motor Enclosure Design: Totally Enclosed Air-Over<br /> HP: 1/4, 1/12<br /> Nameplate RPM: 1725/1140<br /> Frame: 48<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 115<br /> Full Load Amps: 4.1 / 2.5<br /> Phase: 1<br /> Hz: 60<br /> Motor Mounting Type: Stud<br /> Motor Mounting Position: Horizontal<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Finish: Gray<br /> Motor Thermal Protection: Auto<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temperature: 40 Degrees C<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 2-9/16"<br /> Motor Shaft Design: Flat<br /> Length Less Shaft: 8-1/2"<br /> Overall Length: 11-1/16"<br /> Ins. Class: B<br /> RPM Range: 1701-1800<br /> Duty: Continuous<br /> Nominal Efficiency: 62%<br /> Motor Efficiency Group: Standard Efficient<br /> Standards: UL Recognized (E6312), CSA Certified(LR2025)<br /> Item: Agricultural Fan Motor<br />
