Tycon Systems
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G100717034 | 1 | 1 | 1 @ $36.00 | |
| Digi-Key | 13922040 | 1 | 9 | 1 | 1 @ $47.06, 5 @ $46.26, 10 @ $44.94, 25 @ $41.64, 50 @ $40.98, 100 @ $39.65, 250 @ $37.01, 500 @ $35.69 |
 unbeatablesale.com | SYBA311966 | 1 | -2 | 1 | 1 @ $31.66 |
 PCNation | 7730AY | 1 | In Stock | 1 | 1 @ $30.95 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

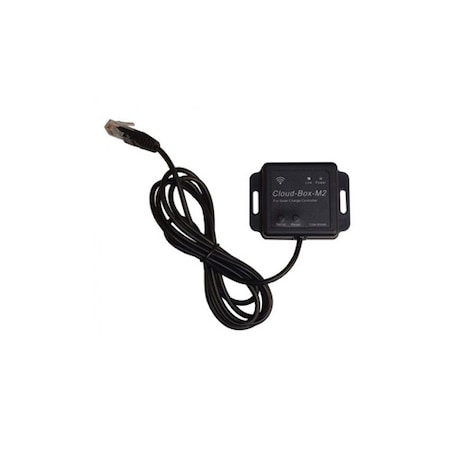

Tycon Power Systems TP-SC-WiFi WiFi Adapter for 30N, 60N & 60P MPPT Solar Controllers
Brand: Tycon Power Systems
<p><strong>SKU: TP-SC-WIFI</strong></p> <p> </p> <p>The Tycon Solar TP-SC-WiFi wireless adapters are compatible with the following Tycon® MPPT solar controllers: TP-SC24-30N-MPPT, TP-SC-24-60N-MPPT and TP-SC48-60P-MPPT. They connect to either of the two RS485 modbus serial ports included on the MPPT solar controllers. They are powered by the RS485 port so no external power supply is required.<br>Using a mobile phone with our free Android or IOS Mobile App, a technician can access current and historical readings as well as configure the MPPT solar controllers and control the load on/off manually.<br><br>The TP-SC-WiFi must be connected to the same 2.4GHz WiFi access point as the mobile phone in order to make an initial connection. After the initial setup, as long as both the Cloud-Box-M2 and mobile phone have internet access, the status can be monitored remotely.</p> <p> </p> <p><strong>Features</strong><br>• Provides Connectivity up to 100m range<br>• Designed for Select Tycon TP-SC MPPT Solar Charge Controllers<br>• No External Power Source Required<br>• Water Resistant, Industrial Temperature Range<br><br><strong>Applications</strong><br>• Tycon TP-SC24-30N-MPPT, TP-SC24-60N-MPPT & TP-SC48- 60P-MPPT Solar Charge Controllers<br>• Remote monitoring and control</p>
Details
- The Tycon Solar TP-SC-WiFi wireless adapters are compatible with the following Tycon MPPT solar controllers: TP-SC24-30N-MPPT, TP-SC-24-60N-MPPT and TP-SC48-60P-MPPT.
- They connect to either of the two RS485 modbus serial ports included on the MPPT solar controllers.
- They are powered by the RS485 port so no external power supply is required.
- Using a mobile phone with our free Android or IOS Mobile App, a technician can access current and historical readings as well as configure the MPPT solar controllers and control the load on/off manually.
- The TP-SC-WiFi must be connected to the same 2.4GHz WiFi access point as the mobile phone in order to make an initial connection.
Listing
| Product group | Home |
|---|---|
| Product type | CONTROLLER |
| Part number | TP-SC-WIFI |
| Items per pack | 1 |
| Label | Tycon Power Systems |
| Manufacturer | Tycon Power Systems |

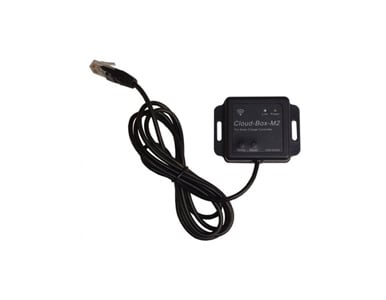

TP-SC-WiFi - WiFi Adapter for TP-SC24-30N-MPPT, TP-SC24-60N-MPPT, TP-SC48-60P-MPPT Controllers.
Brand: Tycon Solar
WiFi Adapter for 30N, 60N & 60P MPPT Solar Controllers. Remote Monitoring/Control. Free mobile app
Details
- Wifi Interface for Tycon TP-SC-MPPT Solar Controllers
- Communication Distance up to 300feet
- Interconnection Cable Length 18"
- Enables wireless remote monitoring/control of MPPT solar controller
- Industrial Strength
