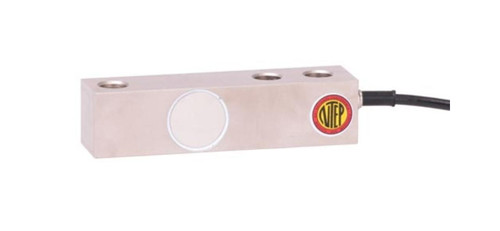

CAS 23LW3-1AK 1500 lb Stainless Steel Single Ended Beam Load Cell, Welded Seal - Scales Plus

CAS . CAS-23LW3-1AK

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute00CAS
Attribute01, MPN, SKUCAS-23LW3-1AK
Attribute021500 lb
Attribute03150% capacity
Attribute045.12"
Attribute05, Attribute061.25"
Attribute071/2 - 20 UNF
Attribute08Stainless steel
Attribute09Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
Attribute1010V AC/DC (20V Max)
Attribute113 mV/V
Attribute12385 +/- 10 ohms
Attribute13350 +/- 3 ohms
Attribute14-10?C to 40?C
Attribute15-20?C to 60?C
Attribute16Welded Seal
Attribute17IP67
Attribute1820 ft
AttributeKey00Manufacturer
AttributeKey01Model
AttributeKey02Capacity
AttributeKey03Safe Overload
AttributeKey04, length_AttribLength
AttributeKey05, width_AttribWidth
AttributeKey06, height_AttribHeight
AttributeKey07Thread Size
AttributeKey08Construction / Finish
AttributeKey09Cable Color Code
AttributeKey10Rated Excitation
AttributeKey11Full Scale Output
AttributeKey12Input Impedance
AttributeKey13Output Impedance
AttributeKey14Compensated Temperature Range
AttributeKey15Operating Temperature Range
AttributeKey16Seal Type
AttributeKey17IP Rating
AttributeKey18Cable Length
DimensionUnitinch
Extra Product NameCAS 23LW3-1AK 1500 lb Stainless Steel Single Ended Beam Load Cell, Welded Seal - Scales Plus
height, width1.25
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length5.12
moq, multiple, tierMinQty11
qtyInStock0
snippetBuy CAS CAS-23LW3-1AK from the experts that offer free product support for life!
tierPrice1330

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.comCAS-23LW3-1AK111 @ $330.00
dscbalances.comCAS-23LW3-1AK1-211 @ $24495.00
