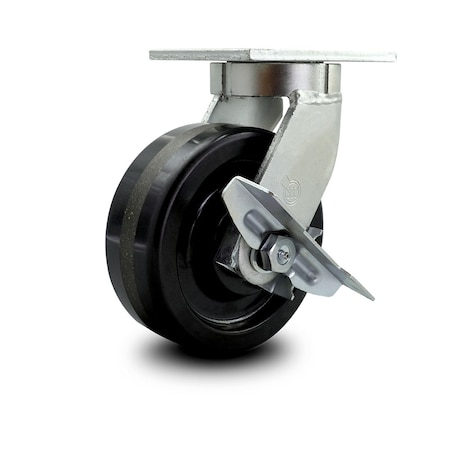

8 Inch Extra Heavy Duty Phenolic Wheel Swivel Caster with Brake

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, atoms8
Attribute013
Attribute025-1/4" x 7-1/4"
Attribute0310-1/2"
Attribute041/2" (hardware not included)
Attribute058" x 3"
Attribute06Top Plate
Attribute07-50 degrees F to 250 degrees F
Attribute08, Attribute14Side lock brake
Attribute09, Model, ModelNumber, Model_numberSeries #92
Attribute1090D
Attribute11Swivel caster w/side lock brake
Attribute12Bright Zinc Plated Finish
Attribute13, Material, MaterialTypePhenolic
Attribute153-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Attribute16, Load_capacity2500
Attribute17Roller Bearing
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Plate Size
AttributeKey03, height_AttribMounting Height
AttributeKey04Bolt Size
AttributeKey05Size
AttributeKey06Caster Mounting Type
AttributeKey07Caster Temp. Range
AttributeKey08Caster Swivel Lock Type
AttributeKey09Series
AttributeKey10Durometer
AttributeKey11Type
AttributeKey12Finish
AttributeKey13Material
AttributeKey14Features
AttributeKey15Plate Caster Bolt Hole Pattern
AttributeKey16Capacity (Lb.)
AttributeKey17Bearing Type
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
Extra Product Name8 Inch Extra Heavy Duty Phenolic Wheel Swivel Caster with Brake
UPC670533881164
WeightUnitlbs
diameter, length, Decimal_value8.0
extendedLead26
extendedQty-2
height10.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, PartNumber, Part_numberSCC-KP92S830-PHR-SLB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG105439771
tierPrice1314.00
urlhttps://www.zoro.com/service-caster-8-inch-extra-heavy-duty-phenolic-wheel-swivel-caster-with-brake-scc-kp92s830-phr-slb/i/G105439771/
width3.0
ASINB07L4ZC9QM B089LRPKYM
AdultProduct, Autographed, Batteries_included, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB07L4ZC9QM
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. The Kingpinless Series 92 phenolic casters offer various wheel sizes and mounting heights – 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height) and are made of a phenolic material that is highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, are also spark proof. Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on. Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”.
ClassificationId383663011 511228
ColorSwivel - Side Lock Brake - Black
Compatible_with_vehicle_typeTruck
Currency, CurrencyCodeUSD
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0670533881164 670533881164
FetchTime1698430597 1704987580
Height, Width1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameExtra Heavy Duty Kingpinless 8” x 3” Phenolic Swivel Caster with Brake - 2,500 lbs/Caster - Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-KP92S1030-PHR-SLB
Linkhttps://m.media-amazon.com/images/I/31ujrG3qqsL._SL75_.jpg https://m.media-amazon.com/images/I/31ujrG3qqsL.jpg https://m.media-amazon.com/images/I/4152iWL0YdL._SL75_.jpg https://m.media-amazon.com/images/I/4152iWL0YdL.jpg https://m.media-amazon.com/images/I/41ycrktcC2L._SL75_.jpg https://m.media-amazon.com/images/I/41ycrktcC2L.jpg https://m.media-amazon.com/images/I/51WatA9PaGL._SL75_.jpg https://m.media-amazon.com/images/I/51WatA9PaGL.jpg https://m.media-amazon.com/images/I/51ZV0KWFFmL.jpg https://m.media-amazon.com/images/I/51eBsvS6VCL._SL75_.jpg https://m.media-amazon.com/images/I/51eBsvS6VCL.jpg https://m.media-amazon.com/images/I/51wdsXMeO8L.jpg https://m.media-amazon.com/images/I/61DduPQaypL.jpg https://m.media-amazon.com/images/I/61cP2VNd-NL.jpg https://m.media-amazon.com/images/I/719gLDCzywL.jpg https://www.amazon.com/gp/bestsellers/hi/511228 https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383663011
List_price0.0
Marketplace_idATVPDKIKX0DER
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB089LRPKYM
ProductCategoryId383663011 511228 biss_display_on_website
ProductGroupBISS Basic
ProductTypeWHEEL
ProductTypeNameINDUSTRIAL_CASTERS
Product_descriptionListing is for one (1) Service Caster Series #92 swivel caster with a 8" diameter, 3" wide black phenolic wheel fitted with a side locking brake. Supports 2500 pounds (lbs) per caster.When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate phenolic casters. The Service Caster Series #92 is ideal for material handling, carts, equipment, and shop projects. The phenolic wheels roll easier and quieter than comparable steel wheels, and are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Additionally, they are resistant to water, oil, grease, and are non-metallic, providing spark proof protection. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features ½” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Product_site_launch_date2018-12-05T19:53:10.003Z
Rank1176 202416 327316 3668 731853 94376
Size8" Wheel 8.0
Supplier_declared_dg_hz_regulationnot_applicable
TitleExtra Heavy Duty Kingpinless 8” x 3” Phenolic Swivel Caster with Brake - 2,500 lbs/Caster - Service Caster Brand Hardware Industrial & Scientific Plate Casters
TypeCount VARIATION ean upc
URLhttps://m.media-amazon.com/images/I/31ujrG3qqsL._SL75_.jpg
Unitinches pound pounds
Unit_count1.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04
VariationThemecolor size
WebsiteDisplayGroupautomotive_display_on_website biss_display_on_website
WebsiteDisplayGroupNameAutomotive Parts and Accessories
Website_shipping_weight23.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG105439771111 @ $314.00

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Extra Heavy Duty Kingpinless 8” x 3” Phenolic Swivel Caster with Brake - 2,500 lbs/Caster - Service Caster Brand
Brand: Service Caster
Listing is for one (1) Service Caster Series #92 swivel caster with a 8" diameter, 3" wide black phenolic wheel fitted with a side locking brake. Supports 2500 pounds (lbs) per caster.When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate phenolic casters. The Service Caster Series #92 is ideal for material handling, carts, equipment, and shop projects. The phenolic wheels roll easier and quieter than comparable steel wheels, and are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Additionally, they are resistant to water, oil, grease, and are non-metallic, providing spark proof protection. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features ½” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Details
  • The Kingpinless Series 92 phenolic casters offer various wheel sizes and mounting heights – 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height) and are made of a phenolic material that is highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, are also spark proof.
  • Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”.
  • Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeINDUSTRIAL_CASTERS
ModelSeries #92
Part numberSCC-KP92S830-PHR-SLB
Items per pack1
LabelService Caster
ManufacturerService Caster
