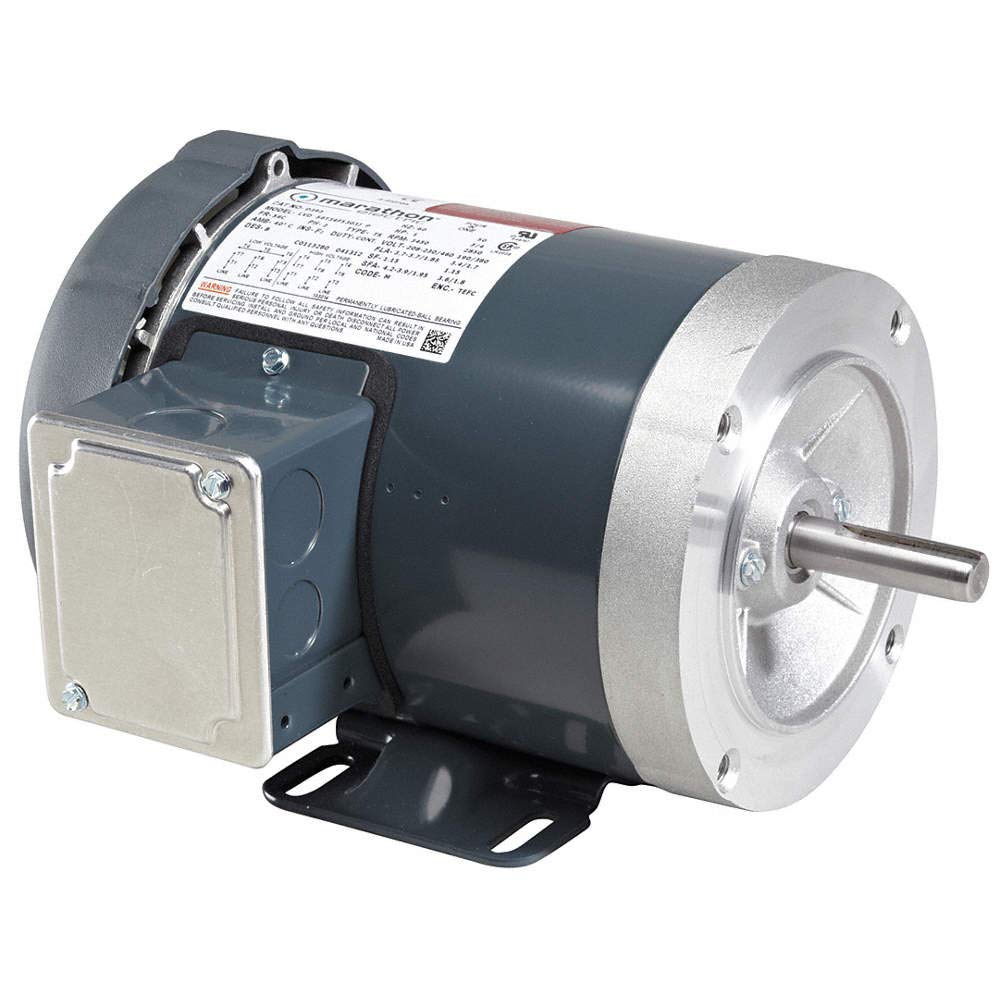

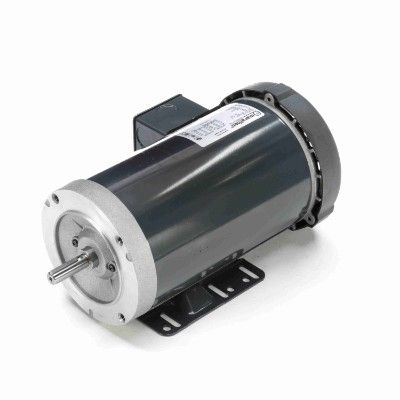

Marathon 056T11F15521, General Purpose Motor, 1 HP, 230/460 Volts, 1.9 Amps, 3 Phase, 1140 RPM, 60 Hz, TEFC Enclosure, 56HC Frame, Bolt-on Base, Foot Mounted, Rolled Steel Frame, Catalog No: K701A

<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 1<br /> Nameplate RPM: 1140<br /> Frame: 56C<br /> Voltage: 230/460<br /> Hz: 60/50<br /> Phase: 3<br /> Full Load Amps: 3.8/1.9<br /> No. of Speeds: 1<br /> Motor Mounting Type: Face/Base<br /> Motor Mounting Position: Horizontal<br /> Motor Thermal Protection: None<br /> Ins. Class: F<br /> Motor Service Factor: 1.15<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Length Less Shaft: 13-1/4"<br /> Overall Length: 14-1/8"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 0-1000<br /> Standards: UL (E49747), CSA (LR2025), CE Approved<br /> Duty: Continuous<br /> Motor Efficiency Group: NEMA Premium Efficient<br /> Nominal Efficiency: 85.5%<br /> CC Number: CC003A<br /> Inverter Rated: No<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: Under 1000<br />
