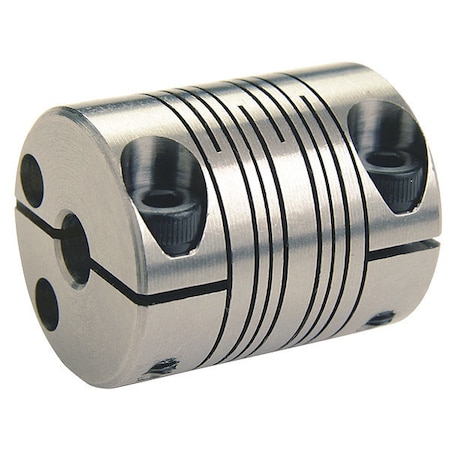

MWC30-12-11-SS, 12mm x 11mm Four Beam Coupling, Stainless | Ruland

Ruland . MWC30-12-11-SS

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRuland
Attribute0012 mm
Attribute0111 mm
Attribute02, Attribute0318.2 mm
Attribute0430.0 mm
Attribute05+0.025 mm / -0.000 mm
Attribute0638.0 mm
Attribute07+0.000 mm / -0.013 mm
Attribute08M4
Attribute09Alloy Steel
Attribute103.0 mm
Attribute11Black Oxide
Attribute124.6 Nm
Attribute132 ea
Attribute142.50 Nm
Attribute153.0°
Attribute165.00 Nm
Attribute170.38 mm
Attribute1810.00 Nm
Attribute190.25 mm
Attribute200.46 Deg/Nm
Attribute2120.920 x10
Attribute226,000 RPM
Attribute23, Attribute24, Attribute25Yes
Attribute28Type 303 Austenitic, Non-Magnetic Bar
Attribute29-40°F to 350°F (-40°C to 176°C)
Attribute30Bright, No Plating
Attribute31Ruland Manufacturing
Attribute32USA
Attribute33, Weight0.321500
Attribute34634529122709
Attribute358483.60.8000
Attribute3631163003
Attribute37Torque ratings are at maximum misalignment.
Attribute38Performance ratings are for guidance only. The user must determine suitability for a particular application.
Attribute39Torque ratings for the couplings are based on the physical limitations/failure point of the machined beams. Under normal/typical conditions the hubs are capable of holding up to the rated torque of the machined beams. In some cases, especially when the smallest standard bores are used or where shafts are undersized, slippage on the shaft is possible below the rated torque of the machined beams. Please consult technical support for more assistance.
AttributeKey00Bore (B1)
AttributeKey01Small Bore (B2)
AttributeKey02B1 Max Shaft Penetration
AttributeKey03B2 Max Shaft Penetration
AttributeKey04, height_Attrib, width_AttribOuter Diameter (OD)
AttributeKey05Bore Tolerance
AttributeKey06, length_AttribLength (L)
AttributeKey07Recommended Shaft Tolerance
AttributeKey08Cap Screw
AttributeKey09Screw Material
AttributeKey10Hex Wrench Size
AttributeKey11Screw Finish
AttributeKey12Seating Torque
AttributeKey13Number of Screws
AttributeKey14Dynamic Torque Reversing
AttributeKey15Angular Misalignment
AttributeKey16Dynamic Torque Non-Reversing
AttributeKey17Parallel Misalignment
AttributeKey18Static Torque
AttributeKey19Axial Motion
AttributeKey20Torsional Stiffness
AttributeKey21Moment of Inertia
AttributeKey22Maximum Speed
AttributeKey23Full Bearing Support Required?
AttributeKey24Zero-Backlash?
AttributeKey25Balanced Design
AttributeKey26Torque Wrench
AttributeKey27Recommended Hex Key
AttributeKey28Material Specification
AttributeKey29Temperature
AttributeKey30Finish Specification
AttributeKey31Manufacturer
AttributeKey32Country of Origin
AttributeKey33, Weight_AttribWeight (lbs)
AttributeKey34UPC
AttributeKey35Tariff Code
AttributeKey36UNSPC
AttributeKey37Note 1
AttributeKey38Note 2
AttributeKey39Note 3
AttributeKey40Prop 65
DimensionUnitmm
Extra Product NameMWC30-12-11-SS, 12mm x 11mm Four Beam Coupling, Stainless | Ruland
WeightUnitlbs
diameter, height, width30.0
keywordsMWC30-12-11-SS, Beam Coupling, Four Beam Coupling
length38.0
moq, multiple, tierMinQty11
MPN, SKUMWC30-12-11-SS
qtyInStock-2
qtySourceFieldMap
snippetRuland part number MWC30-12-11-SS is a 303 stainless steel four beam coupling with 12mm x 11mm bores. Download a 2D/3D CAD file or purchase the MWC30-12-11-SS directly from the manufacturer.
tierMinQty210
tierMinQty325
tierMinQty450
tierPrice1183.06
tierPrice2166.43
tierPrice3138.69
tierPrice4124.82

Distributor offers

SellerSKUMOQIn stockMultiplePrices
RulandMWC30-12-11-SS1-211 @ $183.06, 10 @ $166.43, 25 @ $138.69, 50 @ $124.82
cbtcompany.comMWC30-12-11-SS11
ZoroG7086788111 @ $144.57
Digi-Key1361570611011 @ $231.12
motionindustries.com06260190111 @ $227.46
