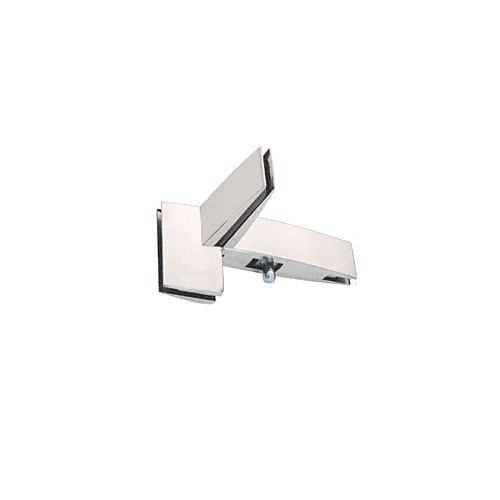

CRL ALUM-CPF41RPS-VCP-1 Polished Stainless Curved Right Hand Sidelite Transom Patch With Support Fin Bracket and 1NT300 Insert

CRL-USALUM . ALUM-CPF41RPS-VCP-1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCRL-USALUM
Attribute003/8" or 1/2" (10 or 12 mm)
Attribute01Polished Stainless
Attribute023/8, 1/2
Attribute03Polished Stainless Steel
Attribute04Sidelite
Attribute05Right Hand
AttributeKey00Glass Thickness
AttributeKey01Finish
AttributeKey02Glazing Thickness
AttributeKey03Finish/Color
AttributeKey04Mounting Type
AttributeKey05Handing
CategoryIdL3Commercial Patch Fitting Hardware
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
Extra Product NameCRL ALUM-CPF41RPS-VCP-1 Polished Stainless Curved Right Hand Sidelite Transom Patch With Support Fin Bracket and 1NT300 Insert
atoms, moq, multiple, tierMinQty11
extendedQty, qtyInStock0
MPNALUM-CPF41RPS-VCP-1
qtySourceupdateFromUrlEntry
snippet<br/> The <b>CRL Curved Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket</b> is used to support a transom from a sidelite glass panel. It comes with a <a href="/search?keyword=1NT300">INT300</a> Insert for mounting a door with a CRL <a href="/search?keyword=PH20CAA">PH20A</a> or <a href="/search?keyword=PH21ASBA">PH21A</a> Top Door Patch Fitting. For single doors, the insert can be removed on the non-hinged side allowing for a double swinging door. A <a href="/search?keyword=1NT306">INT306</a> Transom Patch Door Stop Insert can be used to create a one way door. Also, a <a href="/search?keyword=1NT305L">INT305</a> Transom Patch Keeper Insert can be installed for use with an <a href="/search?keyword=AMR205A">AMR205</a> Lock when used for a top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturers Manual) and secured to the ceiling with a <a href="/search?keyword=A10D">Ceiling Mounted Support Fin Bracket.</a><br/><b>GLASS FABRICATION REQUIRED:</b><br/> Five 3/4" (19 mm) Diameter<br/> Holes and Two Corner Notches<br/><b>COMES WITH:</b><br/> Template and Instructions<br/><b>Product Warning:</b><br/>If the weight of the transom exceeds 100 lbs. (45.4 kgs) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.<br/><p>.</p><b>Stainless Steel Advisory:</b> Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
tierPrice1193.46

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareALUM-CPF41RPS-VCP-1111 @ $193.46
