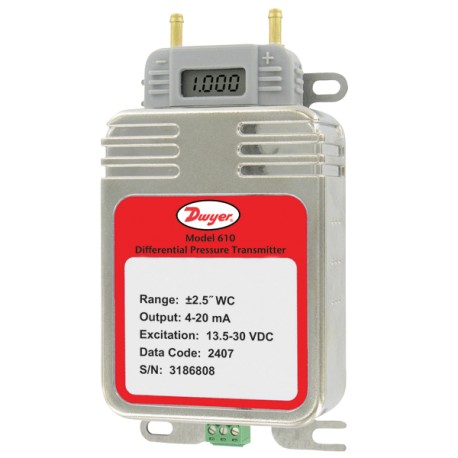

Order 610-25A-BNE by Dwyer Precision Low Differential Pressure Transmitter - US Mega Store

Dwyer . 610-25A-BNE

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute21Air or similar non-conducting gases
Attribute01, Attribute220 to 2.5" w.c.
Attribute02, Attribute23Base Mount
Attribute03, Attribute24No
Attribute04, Attribute25±0.5 F.S
Attribute05, Attribute26±0.5%/yr
Attribute06, Attribute27-20 to 160°F
Attribute07, Attribute282 psi
Attribute08, Attribute290.5% FS
Attribute09, Attribute3013.5 to 30 VDC
Attribute10, Attribute314 to 20 mA
Attribute11, Attribute32800 ohms max
Attribute12, Attribute3325 mA
Attribute13, Attribute34External security key pendant
Attribute14, Attribute350.02 to 0.04 seconds
Attribute15, Attribute36Detachable screw terminal connector
Attribute16, Attribute373/16" O.D. barbed brass fittings on removable process head
Attribute17, Attribute38Fire retardant ABS
Attribute18, Attribute39Vertical
Attribute19, Attribute409 oz
Attribute20, Attribute41CE
AttributeKey00, AttributeKey21Service
AttributeKey01, AttributeKey22Range
AttributeKey02, AttributeKey23Mounting
AttributeKey03, AttributeKey24Display
AttributeKey04, AttributeKey25Accuracy
AttributeKey05, AttributeKey26Stability
AttributeKey06, AttributeKey27Temperature Limits
AttributeKey07, AttributeKey28Pressure Limits
AttributeKey08, AttributeKey29Thermal Effect
AttributeKey09, AttributeKey30Power Requirements
AttributeKey10, AttributeKey31Output
AttributeKey11, AttributeKey32Loop Resistance
AttributeKey12, AttributeKey33Current Consumption
AttributeKey13, AttributeKey34Zero and Span Adjustments
AttributeKey14, AttributeKey35Response Time
AttributeKey15, AttributeKey36Electrical Connections
AttributeKey16, AttributeKey37Process Connections
AttributeKey17, AttributeKey38Enclosure Rating
AttributeKey18, AttributeKey39Mounting Orientation
AttributeKey19, AttributeKey40, Weight_AttribWeight
AttributeKey20, AttributeKey41Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Pressure
CategoryL4Dwyer 610-25A-BNE
ConditionNEW
Extra Product NameOrder 610-25A-BNE by Dwyer Precision Low Differential Pressure Transmitter - US Mega Store
Weight9
WeightUnitoz
moq, multiple, tierMinQty11
MPN, SKU610-25A-BNE
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Series 610 Precision Low Differential Pressure Transmitter, Range 0 to 2.5" w.c., Base Mount, 0.50% Accuracy, Without Display </strong> </p> <p> <a rel="nofollow" target="_blank" href="https://www.dwyer-inst.com/PDF_files/610_CE.pdf"> <img src="//usmegastore.com/assets_images/depiction/parsed_images/CE.jpg" > </a> </p> <p>Ideal for Clean Rooms, Easy to Field Calibrate with Security Key </p> <p><strong>The Series 610 Low Differential Pressure Transmitter </strong> is capable of measuring the pressures and flow of air or non-conducting gases at high resolutions. Designed specifically for clean rooms, isolation rooms, and other critical environments, the Series 610 is ideal for situations when accurate and reliable pressure monitoring is essential. Easy access pressure ports and electrical connections, removable process heads, and detachable terminal blocks make for fast and easy installation. </p> <p><strong>Features </strong> </p> <ul><li>Removable process head for simplified installation </li> <li> Secure operation ensured with calibration only possible via separate calibration key </li> </ul>
tierPrice11007

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com610-25A-BNE1-211 @ $1007.00
blackhawksupply.com610-25A-BNE1-211 @ $1227.59
Megadepot610-25A-BNE111 @ $973.00
heavydutydepot.com610-25A-BNE1-211 @ $973.00
Galco610-25A-BNE-DWYR111 @ $1092.94
PemroDWI-222211
cappusa.com4124785111 @ $0.00
industrialzone.com610-25A-BNE1-211 @ $1122.00
alliedcontrols.com610-25A-BNE1Factory Stock11 @ $1137.50
Transcat610-25A-BNE111 @ $910.00
Radwell610-25A-BNE11
