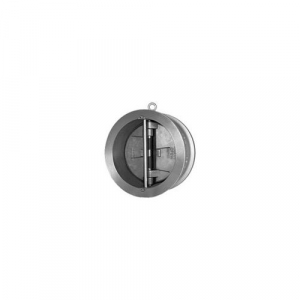

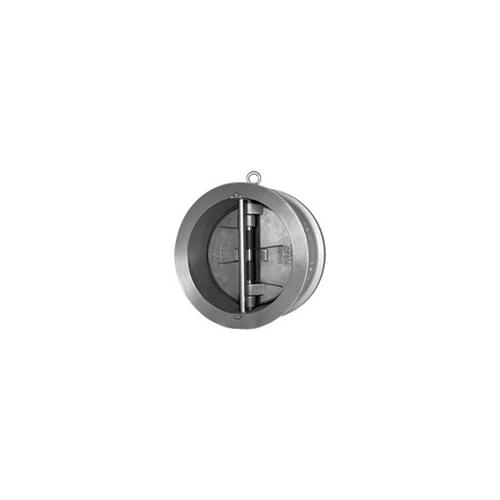

Order CV44CSB0600 by Titan CV44-CS 6" CS Dual Disc Wafer Check Valve, Buna-N - US Mega Store

Titan . CV44CSB0600

Gallery

Attributes

Brand name, Manufacturer nameTitan
ManufacturerTitan Titan Flow Control
CategoryL1Plumbing
CategoryL2, DisplayNameValves
CategoryL3Check
CategoryL4Titan CV44CSB0600
ConditionNEW
Extra Product NameOrder CV44CSB0600 by Titan CV44-CS 6" CS Dual Disc Wafer Check Valve, Buna-N - US Mega Store
moq, multiple, tierMinQty1, Case, NumberOfItems, Number_of_items1
MPN, SKU, Part Number, PartNumber, Part_numberCV44CSB0600
qtyInStockContact Us
snippet<p><strong>CV44-CS 6" Carbon Steel 300# Dual Disc Wafer Type Check Valve Stainless Steel Disc and Shaft, Inconel Spring, Buna-N Seat </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Cost efficient design. Low weight and short laying length produce savings in initial cost, space requirements, and installation when compared to full-body, swing-type check valves. </li> <li>Minimal head loss. Contour of body provides a short and straight flow path that generates very little turbulence. Additionally, the spring-loaded discs are designed with very low cracking pressure which reduces the amount of energy required to open the valve. </li> <li>Quick closure to reduce water hammer. Shut-off is achieved via the fully automatic, spring-assisted discs that close near zero flow velocity. The lightweight, split disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum. </li> <li>Designed for long service life. The spring and discs are designed to allow the discs to lift linearly before pivoting to avoid the disc heal from scrubbing the sealing surface. Also, discs are equipped with cast-in shock bumpers that help to reduce wear and tear on internal components. </li> <li>Fugitive emission design. The retainer-less body design eliminates potential leak paths to the environment so there are no body emissions. </li> </ul>
tierPrice1829
Product GroupBISS
ASIN, AsinB01E9N3GWC
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
Brand, Label, Man, Publisher, StudioTitan Flow Control
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 3021479011
ClassificationId383615011
FetchTime1568272308 1649930176 1682486243 1704690467
Height, Width300 75
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleTitan 6.0 CV44-CS-S-S-1-X Dual Disc Wafer Check Valve, 6", Flanged, Carbon Steel
Item_type_keywordindustrial-valves
Linkhttps://m.media-amazon.com/images/I/21HIF2Y5XrL._SL75_.jpg https://m.media-amazon.com/images/I/21HIF2Y5XrL.jpg
Marketplace_idATVPDKIKX0DER
ProductGroupBISS BISS Basic
ProductType, ProductTypeNameLAB_SUPPLY
Product_descriptionTitan CV 44-CS series dual disc wafer check valve with 6" flanged connection has 740 psi pressure rating and is made of carbon steel Brand Name|Titan#MFR Part Number|6.0 CV44-CS-S-S-1-X#Interchanges with|Mueller 6.0 74-DHH-3-X#UNSPSC|40141637#Item|Check Valve#Type|Dual Disc, Wafer#Series|CV 44-CS#Nominal Size|6 Inch#End Style|Flanged#Pressure Class|ANSI Class 300#Pressure Rating|740 psi WOG#Inside Diameter|6 Inch#Outside Diameter|6-1/2 Inch#Coefficient of Volume|850 Cv#Cracking Pressure|0.25 psi#Media|Water, Oil, Gas#Body Material|Carbon Steel#Material Specifications|ASTM A216 Grade WCB#Seat Material|Buna-N#Disc Material|ASTM A351 Grade CF8M Stainless Steel#Stem Material|ASTM A276 Grade 316 Stainless Steel#Spring Material|Inconel X-750#Temperature Rating|100 deg F#Dimensions|3.88 Inch Width#Finish|Epoxy Painted#Application|Water and Waste Water, Pulp and Paper, Chemical and Petrochemical, Power, Petroleum, Oil and Gas#Standard/Approvals|ANSI/API 594, ANSI/ASME 16.5, API 598
Product_site_launch_date2016-04-14T23:28:35.373Z
URLhttp://ecx.images-amazon.com/images/I/21HIF2Y5XrL._SL75_.jpg https://m.media-amazon.com/images/I/21HIF2Y5XrL._SL75_.jpg
Unitspixels
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comCV44CSB06001Contact Us11 @ $829.00
cooneybrothers.com251311111 @ $899.52
blackhawksupply.comCV44CSB06001Get a Quote1
MegadepotCV44CSB0600111 @ $805.00

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Titan 6.0 CV44-CS-S-S-1-X Dual Disc Wafer Check Valve, 6", Flanged, Carbon Steel
Brand: Titan Flow Control
Titan CV 44-CS series dual disc wafer check valve with 6" flanged connection has 740 psi pressure rating and is made of carbon steel Brand Name|Titan#MFR Part Number|6.0 CV44-CS-S-S-1-X#Interchanges with|Mueller 6.0 74-DHH-3-X#UNSPSC|40141637#Item|Check Valve#Type|Dual Disc, Wafer#Series|CV 44-CS#Nominal Size|6 Inch#End Style|Flanged#Pressure Class|ANSI Class 300#Pressure Rating|740 psi WOG#Inside Diameter|6 Inch#Outside Diameter|6-1/2 Inch#Coefficient of Volume|850 Cv#Cracking Pressure|0.25 psi#Media|Water, Oil, Gas#Body Material|Carbon Steel#Material Specifications|ASTM A216 Grade WCB#Seat Material|Buna-N#Disc Material|ASTM A351 Grade CF8M Stainless Steel#Stem Material|ASTM A276 Grade 316 Stainless Steel#Spring Material|Inconel X-750#Temperature Rating|100 deg F#Dimensions|3.88 Inch Width#Finish|Epoxy Painted#Application|Water and Waste Water, Pulp and Paper, Chemical and Petrochemical, Power, Petroleum, Oil and Gas#Standard/Approvals|ANSI/API 594, ANSI/ASME 16.5, API 598
