Order SA1113E-S5-K1 by Mercoid Series SA1100 Operated Pressure Switch - US Mega Store

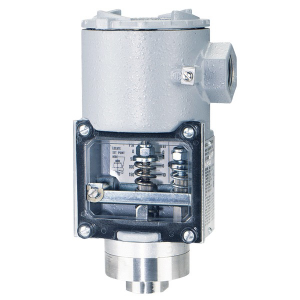

Mercoid . SA1113E-S5-K1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMercoid
Attribute00, Attribute14Pressure Chamber - 316SS, Diaphragm - Fluorocarbon, Seal Material - Fluorocarbon
Attribute01, Attribute15-30 to 180°F (-35 to 82°C) standard. ATEX compliant at Ambient Temperature -4 to 167°F (-20 to 75°C); Process Temperature -4 to 167°F (-20 to 75°C)
Attribute02, Attribute161200 psig (82.6 bar)
Attribute03, Attribute17Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Gorups B, C and D; Class II Groups E, F and G. ATEX Compliant CE 0344 Ex II 2 G EEx d IIC T6 Process Temperature 75°C. Weatherproof UL Rated Type 4. Meets NEMA 4X
Attribute04, Attribute18Snap Action Switch
Attribute05, Attribute19SPDT or DPDT contacts rated 15A @ 125/250/480 VAC (V~),1/8 HP @ 125 VAC (V~), 1/4 HP @ 250 VAC (V~), 1/2A @ 125 VDC (V ) resistive,1/4A @ 250 VDC (V ) resistive
Attribute06, Attribute20Screw terminal
Attribute07, Attribute213/4" female NPT
Attribute08, Attribute221/4" Female NPT
Attribute09, Attribute23Within 20° of vertical
Attribute10, Attribute24Internal 7/16" hex nuts
Attribute11, Attribute253.5 lb (1.6 kg)
Attribute12, Attribute26max.300 psig
Attribute13, Attribute27ATEX, CE, CSA, IECEx, UL
AttributeKey00, AttributeKey14Wetted Materials
AttributeKey01, AttributeKey15Temperature Limits
AttributeKey02, AttributeKey16Pressure Limit
AttributeKey03, AttributeKey17Enclosure Rating
AttributeKey04, AttributeKey18Switch Type
AttributeKey05, AttributeKey19Electrical Rating
AttributeKey06, AttributeKey20Electrical Connections
AttributeKey07, AttributeKey21Conduit Connection
AttributeKey08, AttributeKey22Process Connection
AttributeKey09, AttributeKey23Mounting Orientation
AttributeKey10, AttributeKey24Set Point Adjustment
AttributeKey11, AttributeKey25, Weight_AttribWeight
AttributeKey12, AttributeKey26Deadband
AttributeKey13, AttributeKey27Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Switches
CategoryL3Pressure
CategoryL4Mercoid SA1113E-S5-K1
ConditionNEW
Extra Product NameOrder SA1113E-S5-K1 by Mercoid Series SA1100 Operated Pressure Switch - US Mega Store
Weight3.5
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKUSA1113E-S5-K1
qtyInStock2 Weeks Factory Lead Time
snippet<p><strong>Mercoid, SA1113E-S5-K1, Series SA1100 Diaphragm Operated Pressure Switch, 30-500 psig, 1/4" FNPT, 316SS Chamber </strong> </p> <p>Series SA1100 Diaphragm Operated Pressure Switch, , 30 - 500 psig, Snap Action Switch, Pressure Chamber - 316SS, Diaphragm - Fluorocarbon, Seal Material - Fluorocarbon, SPDT Switch & 1/4" Female NPT </p> <p>Visible Setpoint, Adjustable Deadband, Hermetically Sealed Snap Switch, Weatherproof and Explosion-proof </p> <p><strong>Weatherproof and Explosion-Proof in One Economical Enclosure </strong> Extremely rugged construction assures excellent reliability in chemical, petroleum and industrial plants. The rolling diaphragm design maintains a constant effective area to minimize friction. This results in a minimum deadband as low as 5% of full scale. Since many applications require higher deadbands, the SA1100 includes a separate adjustment of this when necessary. A pump being used to control liquid level in a tank would be a typical situation where this feature would be important. Both setpoint and deadband adjustments are protected, yet clearly visible behind a clear polycarbonate window and are fully isolated from the electrical components for additional safety. A 7/16" open-end wrench is the only tool required to change settings. Terminal blocks are provided for switch wiring connections and both internal and external ground screws are included. Standard housing is weatherproof to NEMA standards 1 through 4X and 13; explosion-proof to NEMA 7, Class I, Groups B, C & D; NEMA 9, Class II, Groups E, F & G. Chemical, petroleum, food and drug processing industries. Used indoor, outdoor or in explosion-proof area. </p> <p><strong>Approvals </strong> </p> <ul><li>ATEX Approval </li> <li>ATEX QAN </li> <li>CE Approval (not ATEX) </li> <li>CE Approval (ATEX) </li> <li>CSA Approval </li> <li>IECEx Certificate </li> <li>UL-Switches-Hazardous Locations-US </li> </ul>
tierPrice1544

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comSA1113E-S5-K112 Weeks Factory Lead Time11 @ $544.00
MegadepotSA1113E-S5-K1111 @ $527.00
