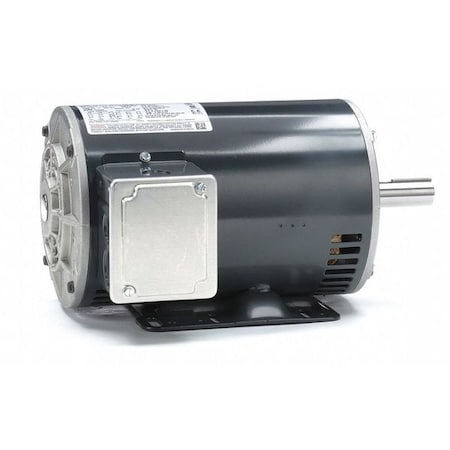

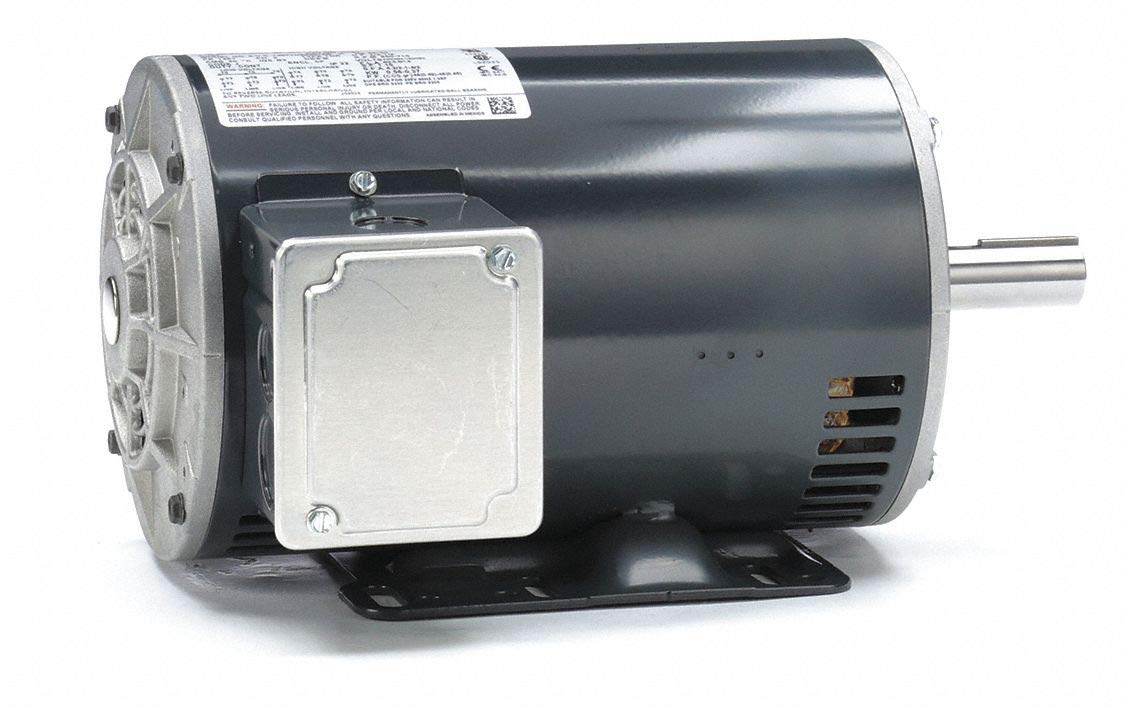

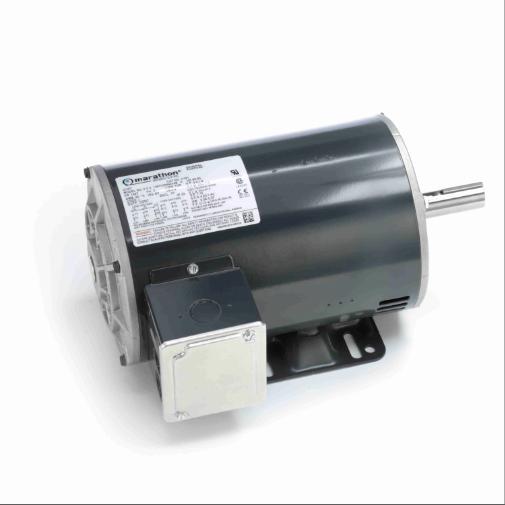

Marathon 145TTDR5401, General Purpose Motor, 3/4 HP, 230/460 Volts, 2.0 Amps, 3 Phase, 850 RPM, 60 Hz, ODP Enclosure, 145T Frame, Rigid base, Footless Mounted, Rolled Steel Frame, Catalog No: H181

'General Purpose Motor, 3-Phase, Open Dripproof, 3/4 HP, Nameplate RPM 850, 145T Frame, Voltage 208-230/460, 60/50 Hz, 3 Phase, 3.8-4.0/2.0 Full Load Amps, No. of Speeds 1, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Thermal Protection None, Ins. Class B, 1.15 Motor Service Factor, Ball Motor Bearings, Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 13 In., Motor Shaft Design Keyed'

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: 3-Phase<br /> HP: 3/4<br /> Nameplate RPM: 850<br /> Voltage: 208-230/460<br /> Phase: 3<br /> No. of Speeds: 1<br /> Motor Mounting Position: Horizontal<br /> Ins. Class: B<br /> Motor Bearings: Ball<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 7/8"<br /> Length Less Shaft: 10-11/16"<br /> Motor Shaft Design: Keyed<br /> Standards: UL (E49747), CSA (LR2025)<br /> Motor Efficiency Group: Standard Efficient<br /> Inverter Rated: Yes<br /> RPM Group: Under 1000
