Kyocera

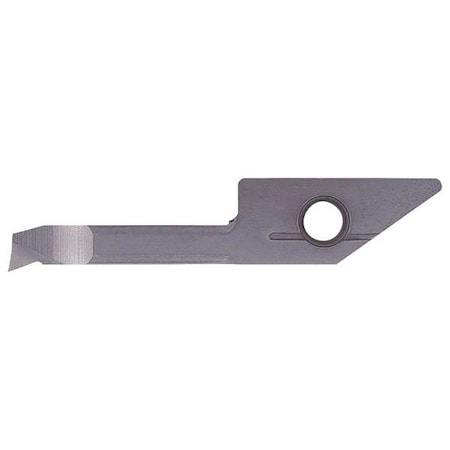

<ul><li>Swiss IQ Bar for micro boring applications</li><li>With chipbreaker</li><li>Compatible with SVNR…, SVNSR…, S…SVNR… style holders</li></ul><p>Product Details</p><li>Bar Style: VNB</li><li>Insert Grade: PR930</li><li>Material: Carbide</li><li>Material Grade: Super Micrograin</li><li>Coating Process: PVD</li><li>Coating / Composition: TiCN</li><li>Hand of Bar: Right-Hand</li><li>Rake Angle (Degree): 18</li><li>Lead Angle (Degree): 100</li><li>Series: Swiss IQ Bar</li><li>[DMIN] Minimum Bore Diameter (Decimal Inch): 0.1969</li><li>[DMIN] Minimum Bore Diameter (mm): 5.00</li><li>[H] Shank Flat Width (Decimal Inch): 0.1535</li><li>[H] Shank Flat Width (mm): 3.90</li><li>[LF] Functional Length (Decimal Inch): 1.2126</li><li>[LF] Functional Length (mm): 30.80</li><li>[LU] Usable Length (Decimal Inch): 0.4331</li><li>[LU] Usable Length (mm): 11.00</li><li>[WF] Cutting Edge Distance (Decimal Inch): 0.1772</li><li>[WF] Cutting Edge Distance (mm): 4.50</li><li>[WF2] Cutting Edge Distance Secondary (Decimal Inch): 0.0276</li><li>[WF2] Cutting Edge Distance Secondary (mm): 0.70</li><li>[LBB] Cutting Edge Width (Decimal Inch): 0.1181</li><li>[LBB] Cutting Edge Width (mm): 3.00</li><li>[RE] Corner Radius (Decimal Inch): 0.0039</li><li>[RE] Corner Radius (mm): 0.10</li><li>Insert Holding Method: Screw</li><li>Hole: Yes</li><li>Primary Workpiece Material: Steel</li><li>Secondary Workpiece Material: Stainless Steel</li><li>Application: Boring</li><li>Unit of Measure: Metric</li><li>Compatible Holder (Partial): SVNR…, SVNSR…, S…SVNR…</li>
