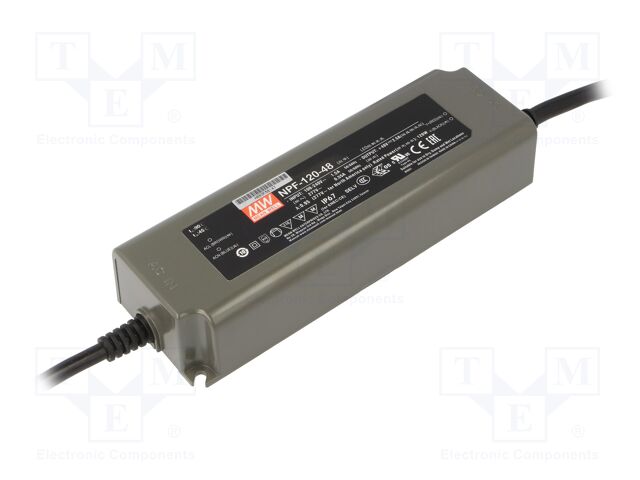

Mean Well Led Driver/psu, Constant Current/voltage Rohs Compliant: Yes - NPF-120-48

<b>Features</b>:<br>Universal AC input (up to 305VAC) / Full rang e<br>Built-in active PFC function<br>High efficiency up to 90%<br>No load power consumption <0.15W (<0.5W for D-Type)<br>Protections:Short circuit / Over current / Over voltage / Over temperature<br>Cooling by free air convection<br>Fully isolated plastic case with IP67 level<br>Class 2 power unit [except for NPF-90(D)-12/15 & NPF-120(D)]<br>Isolation class II, no F.G.<br>Built-in 3 in 1 dimming function(0~10VDC, PWM signal or resistance) for D type<br>BE-Type: Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance) and 12V/200mA auxiliary output<br>Suitable for dry, damp, and wet location<br>5 years warranty

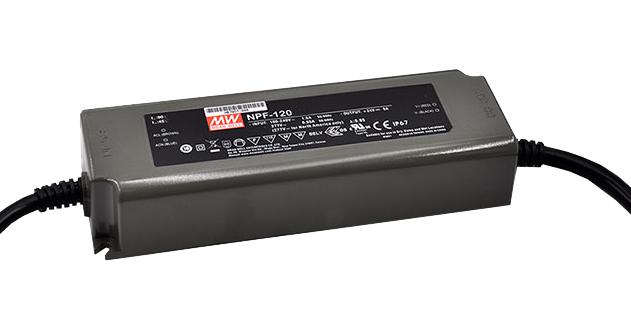

NPF-120 series is a 120W AC/DC LED driver featuring the dual modes constant voltage andconstant current output. NPF-120 operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the hign efficiency up to 90.5%, withthe fanless design, the entire series is able to operate for -40°C～+90°C case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitableto work for a variety of applications at dry, damp or wet locations. Features: Constant Voltage+ Constant Current mode output | Plastic housing with Class II design | Built-in active PFC function | No load power consumption <0.15W | IP67 rating for indoor or outdoor installations | Typical lifetime>50000 hours | 5 years warranty
