Order BYDS-06-2 by Dwyer BYDS Bypass Damper Switch - US Mega Store

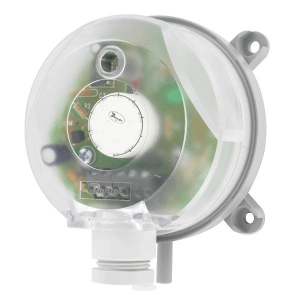

Dwyer . BYDS-06-2

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute12Air and non-combustible, compatible gases
Attribute01, Attribute13Diaphragm Material: silicone; Housing Material: switch body: PA 6.6 and POM; Cover: polystyrene
Attribute02, Attribute14Process and ambient temperature from 32 to 122 °F (0 to 50 °C)
Attribute03, Attribute15Max. Operating Pressure: 40" w.c. (10 kPa) for all pressure ranges
Attribute04, Attribute16Single-pole double-throw (SPDT)
Attribute05, Attribute171A @ 24 VAC
Attribute06, Attribute185/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing
Attribute07, Attribute19NEMA 13 (IP54)
Attribute08, Attribute20Vertically, with pressure connections pointing downwards
Attribute09, Attribute21Over 106 switching operations
Attribute10, Attribute225.6 oz (160 g)
Attribute11, Attribute23CE, RoHS
AttributeKey00, AttributeKey12Service
AttributeKey01, AttributeKey13Materials
AttributeKey02, AttributeKey14Temperature Limits
AttributeKey03, AttributeKey15Pressure Limits
AttributeKey04, AttributeKey16Switch Type
AttributeKey05, AttributeKey17Electrical Rating
AttributeKey06, AttributeKey18Process Connections
AttributeKey07, AttributeKey19Enclosure Rating
AttributeKey08, AttributeKey20Mounting Orientation
AttributeKey09, AttributeKey21Mechanical Working Life
AttributeKey10, AttributeKey22, Weight_AttribWeight
AttributeKey11, AttributeKey23Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Switches
CategoryL3Float
CategoryL4Dwyer BYDS-06-2
ConditionNEW
Extra Product NameOrder BYDS-06-2 by Dwyer BYDS Bypass Damper Switch - US Mega Store
Weight5.6
WeightUnitoz
moq, multiple, tierMinQty11
MPN, SKUBYDS-06-2
qtyInStockContact Us
snippet<p><strong>Dwyer, BYDS-06-2, Series BYDS Bypass Damper Switch, 2.00-10.00" w.c., M20 </strong> </p> <p>Controls Zone Static by Modulating Motorized Damper </p> <p><strong>Includes: </strong> </p> <p>2 plastic static pressure tips and 7 ft. (2.1 m) of PVC tubing. </p> <p><strong>The Series BYDS Bypass Damper Switch </strong> is designed to control motorized bypass dampers. As individual zone dampers open and close, the system static pressure will rise and fall. In order to maintain proper airflow and static pressure through the HVAC system, a bypass system incorporating a floating type motorized damper and a static pressure control should be incorporated. A typical on/off pressure switch cannot operate in this application due to the high cycle rate that would result, eventually causing contact burnout. The BYDS static pressure control is equipped with a solid-state switching and timing circuit to enhance operation and improve long-term reliability in this demanding application. </p> <p><strong>Control Operation </strong> The BYDS Bypass Damper Switch is designed for use with a three wire floating point damper actuator used to control the static pressure on zone control systems requiring motorized bypass dampers. A bypass damper, bypasses air from the discharge air side of the HVAC unit back in the return air side. The air flow is modulated in order to maintain a constant static pressure in the system as individual zone dampers open and close. The static pressure control is equipped with solid-state switching which dramatically increases the life of the control. On an increase in static pressure the BYDS will send 24 volts out and start the actuator to drive open. When the static pressure reaches set-point the actuator will stop. After a ten second delay the actuator will start to drive the damper closed if there has not been an increase in static pressure. A green LED indicates when the damper is in the open position or being driven open. A 24 VAC transformer is required to power the BYDS control and damper actuator. </p> <p><strong>Approvals </strong> </p> <ul><li>RoHS Approval </li> <li>CE Approval </li> </ul>
tierPrice176.69

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comBYDS-06-21Contact Us11 @ $76.69
heavydutydepot.comBYDS-06-2211 @ $76.67
MegadepotBYDS-06-211
KeleBYDS-06-2111 @ $81.56
industrialzone.comBYDS-06-24-211 @ $62.00
us.rs-online.com72198290111 @ $80.56, 3 @ $76.90
RadwellBYDS-06-211
Allied Electronics7219829011
