Dorian ADWLNL-16-4D | Turning Toolholder Wnmg Adwlnl-16-4d Lh | 41T894 | Raptor Supplies Worldwide
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AD4MGE | 1 | 1 | 1 @ $233.50 | ||
 Zoro | G8291866 | 1 | 1 | 1 @ $172.34 | |
| sustainablesupply.com | C3020613 | 1 | -2 | 1 | 1 @ $224.65 |
 AmazonTP | B01IWIAEO8 | 1 | 1 | 1 @ $239.72 | |
 Grainger | 41T894 | 1 | 1 | 1 @ $203.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

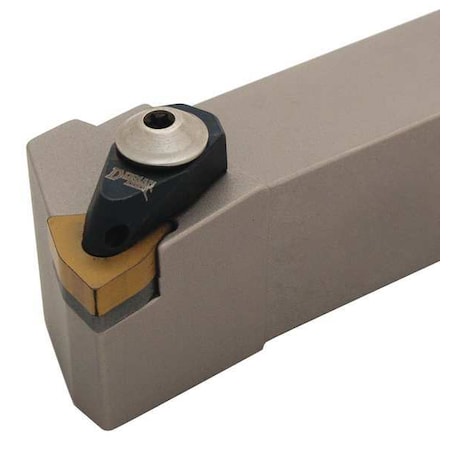

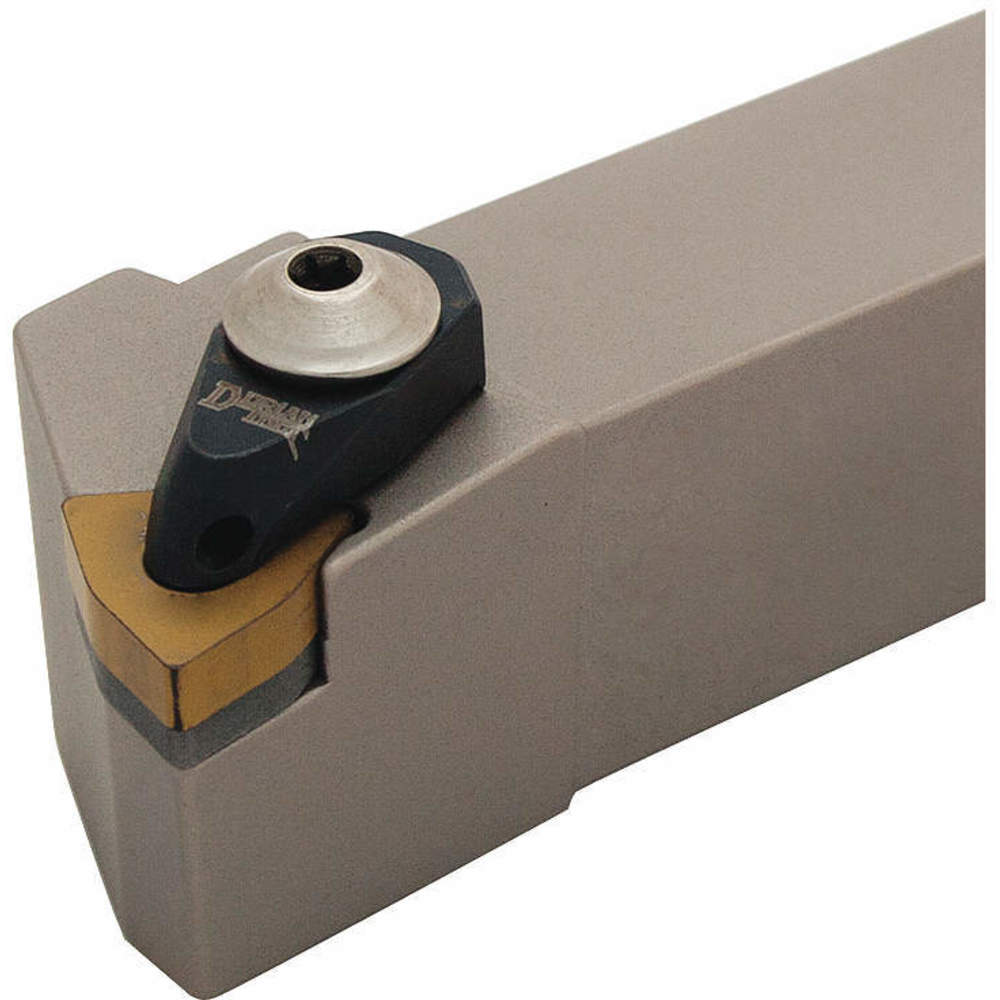

Dorian Tool ADWLN Jet-Stream Square Shank Chromium Molybdenum Alloy Steel Thru-Coolant Turning Holder, Left-Hand Cut, 1" Shank Width, 1" Shank Height, 6" Overall Length, 1/2" Insert
Brand: Dorian Tool
Details
- Coolant shoots directly over the cutting edge of the insert
- Double coolant inlet simplifies the coolant connection to the machine
- Lock and release the insert quickly and powerfully with the new patented Dor Lock clamping system
- Patented thru coolant and locking clamp in 1 system
- Left-hand cut
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS |
| Product type | CUTTING_TOOLS |
| Model | 73310153100 |
| Part number | ADWLNL-16-4D |
| Items per pack | 1 |
| Label | Dorian Tool |
| Manufacturer | Dorian Tool |
Dorian Tool - 73310153100 - Indexable Turning Toolholder, ADWLN, Insert Style WNM., Overall Length 6
Brand: Dorian Tool
Technical Specification Item Indexable Turning Toolholder Toolholder Style ADWLN Insert Style WNM. Insert Shape Trigon Overall Length 6 Shank Width 1 Coolant Fed Coolant Through Cutting Direction Left Hand Rake Negative ANSI Code ADWLNL164D Cutting Application Turning Cutting Height 1 Features Through-Coolant Top Clamp Head Length 1-1/4 Insert Clearance Angle 0 Degrees Insert Holding Type Top Clamp Insert Inscribed Circle 1/2 Insert Size 432 ISO Number ADWLNL164D Shank Height 1 Side Cutting Edge Angle -5 Degrees This listing is for each. Type : WNMG Holder Shank : Square Clamp : JSLC-HPCTW4L Shim Screw : SM-M4 Rake : Negative Item : Indexable Turning Toolholder Clamp Screw : JSCS-04 Insert Shape : Trigon Shim : S8008P Style : ADWLNL-16-4D Insert Size : 432 Cutting Direction : Left Hand Overall Length : 6 in Insert Clearance Angle : 0 Degrees ISO Number : ADWLNL164D Insert Holding Type : Top Clamp Cutting Height : 1 in Coolant Fed : Coolant Through ANSI Code : ADWLNL164D Insert Style : WNM. Side Cutting Edge Angle : -5 Degrees Shank Width : 1 in Cutting Application : Turning Head Length : 1-1/4 in Insert Inscribed Circle : 1/2 in Toolholder Style : ADWLN Shank Height : 1 in Features : Through-Coolant Top Clamp Country of Origin (subject to change) : United States
Details
- Technical Specification Item Indexable Turning Toolholder Toolholder Style ADWLN Insert Style WNM
Listing
| Product group | BISS Basic |
|---|---|
| Product type | RAW_MATERIALS |
| Part number | 73310153100 |
| Items per pack | 1 |
| Label | Dorian Tool |
| Manufacturer | Dorian Tool |
Catalog
| Feature | This turning toolholder features through-coolant locking clamps to direct high-pressure, |
|---|---|
| Category | Industrial & Scientific |
| MPN | 73310153100 |
| Product group | Single Detail Page Misc |
| Product type | MISC_OTHER |
| Manufacturer | Dorian Tool |
