Kyocera

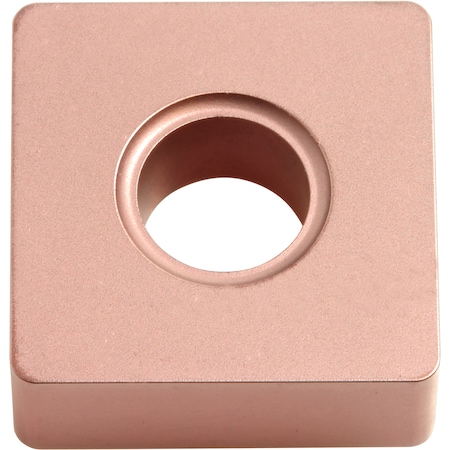

<ul><li>Insert for External Turning, Facing, Chamfering, Boring</li><li>8 Cutting Edges</li><li>Turning grade for high-speed continuous machining and improved tool life through the deposition of a thickened alumina coating layer</li><li>First choice for finishing to roughing of gray cast iron</li></ul><p>Product Details:</p><ul><li>Insert Style: SNMA</li><li>Insert Size: 435</li><li>Insert Grade: CA310</li><li>Material: Carbide</li><li>Material Grade: Micro Columnar</li><li>Coating Process: CVD</li><li>Coating / Composition: TiCn/al2O3/Ti</li><li>[IC] Inscribed Circle (Decimal Inch): 0.5000</li><li>[IC] Inscribed Circle (mm): 12.70</li><li>[S] Thickness (Decimal Inch): 0.1875</li><li>[S] Thickness (mm): 4.76</li><li>[RE] Corner Radius (Decimal Inch): 0.0781</li><li>[RE] Corner Radius (mm): 1.98</li><li>[D1] Hole Diameter (Decimal Inch): 0.2031</li><li>[D1] Hole Diameter (mm): 5.16</li><li>Rake: Negative</li><li>[AN] Relief Angle (Degree): 0</li><li>Included Angle (Degree): 90</li><li>Primary Workpiece Material: Cast Iron</li><li>Shape: Square</li><li>Insert Hand: Neutral</li><li>Insert Holding Method: Screw</li><li>Number of Cutting Edges: 8</li><li>Series: CA3-Series</li><li>Application: External Turning, Facing, Chamfering, Boring</li><li>Usage Classification: Continuous</li><li>Hole (Yes/No): Yes</li><li>Cutting Range: Finishing-Medium</li><li>Compatible Holders (Partial): DSBNR...-12, DSBNL...-12, MSSNR...-4…, MSSNL...-4…, PSBNR…-12, PSBNL…-12, PSKNR…-12, PSKNL…-12, PSSNR…-12, PSSNL…-12, PSDNN…-12, HSRNR...-4D, HSRNL...-4D, HSDNN...-4D, ...DSKNR12..., ...DSKNL12...</li></ul><p ><b>CA3 Series<br>Brochure</b></p>
