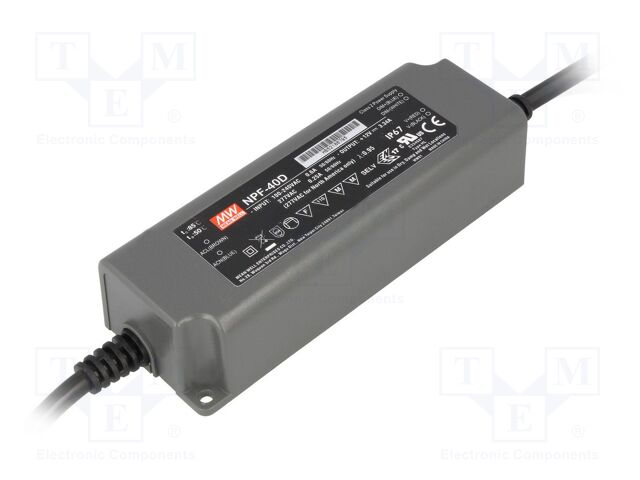

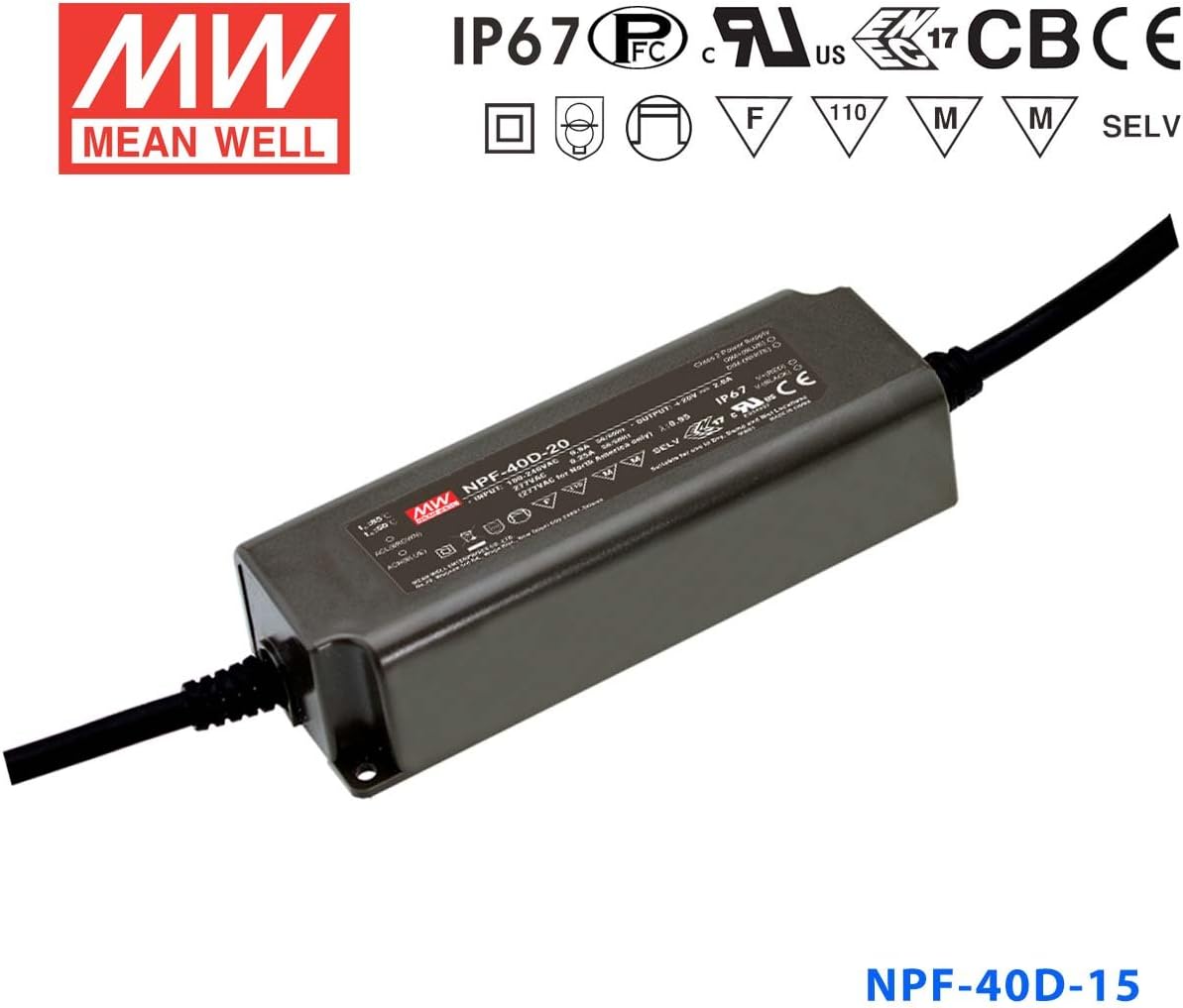

Mean Well Led Driver, Constant Current, 40.08W Rohs Compliant: Yes - NPF-40D-15

<b>Features</b>:<br>Universal AC input (up to 305VAC) / Full rang e<br>Built-in active PFC function<br>High efficiency up to 90%<br>No load power consumption <0.15W (<0.5W for D-Type)<br>Protections:Short circuit / Over current / Over voltage / Over temperature<br>Cooling by free air convection<br>Fully isolated plastic case with IP67 level<br>Class 2 power unit [except for NPF-90(D)-12/15 & NPF-120(D)]<br>Isolation class II, no F.G.<br>Built-in 3 in 1 dimming function(0~10VDC, PWM signal or resistance) for D type<br>BE-Type: Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance) and 12V/200mA auxiliary output<br>Suitable for dry, damp, and wet location<br>5 years warranty

<b>Features</b>:<br>Universal AC input (up to 305VAC) / Full rang e<br>Built-in active PFC function<br>High efficiency up to 90%<br>No load power consumption <0.15W (<0.5W for D-Type)<br>Protections:Short circuit / Over current / Over voltage / Over temperature<br>Cooling by free air convection<br>Fully isolated plastic case with IP67 level<br>Class 2 power unit [except for NPF-90(D)-12/15 & NPF-120(D)]<br>Isolation class II, no F.G.<br>Built-in 3 in 1 dimming function(0~10VDC, PWM signal or resistance) for D type<br>BE-Type: Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance) and 12V/200mA auxiliary output<br>Suitable for dry, damp, and wet location<br>5 years warranty

NPF-40D series is a 40W AC/DC LED driver featuring the constant current mode output. NPF-40D operates from 90~305VAC and offers models with different rated voltage rangingbetween 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, theentire series is able to operate for -40°C~+85°C case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a varietyof applications at dry, damp or wet locations. NPF-40D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system. Features: Plastic housing with class II design | Built-in active PFC function | Class 2 power unit | Standby power consumption <0.5W | IP67 rating for indoor or outdoor installations | Function: 3 in 1 dimming (dim-to-off) | Typical lifetime >50000 hours | 5 years warranty

<b>Features</b>:<br>Plastic housing with class II design<br>Built-in active PFC function<br>Function:3 in 1 dimming(dim-to-off)<br>Standby power consumption <0.5W <br>IP67 rating for indoor or outdoor installation<br>Class 2 power unit<br>Typical lifetime >50000 hours<br>5 years warranty
