Lantronix Serial Device Servers Rohs Compliant: Yes - UD11000P0-01

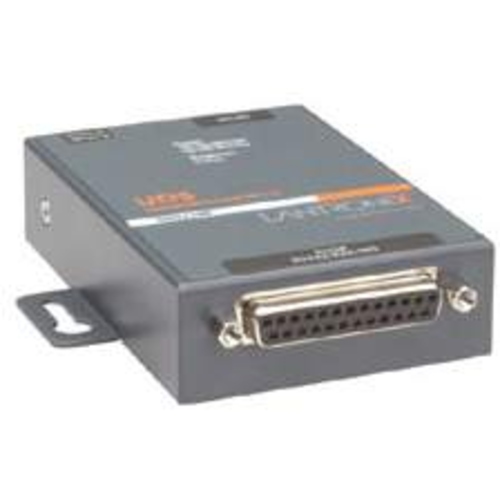

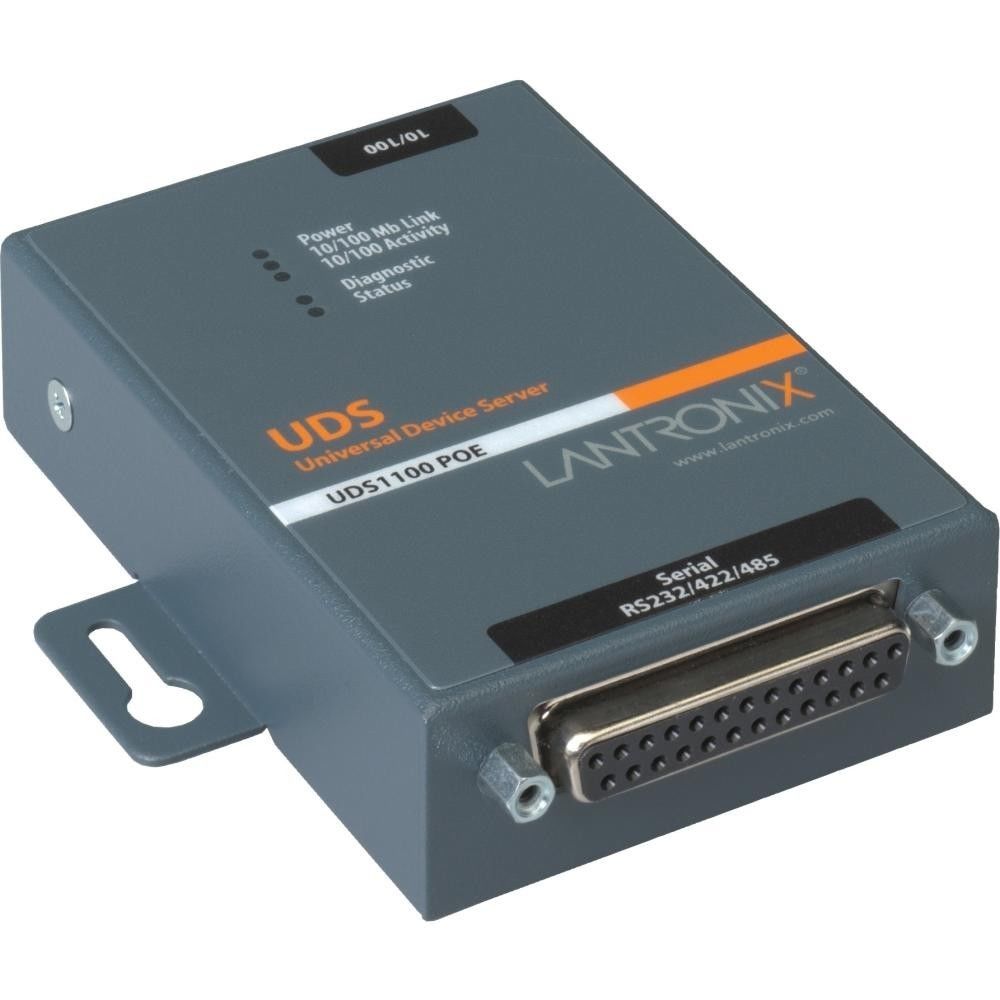

Latronix Device Server with PoE - Simplicity and Speed The UDS1100 Device Server with PoE enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet. Ports: 1 x RJ 45, 1 x DB 25. Dimensions: 3 1/2"(H) x 2 1/2"(W) x 0.9"(D). Compatibility: PC. Form factor: Wall mountable, Processor speed: 48 MHz. Ethernet technology: Fast ethernet, Data link protocol: Ethernet, fast ethernet, RS 232, RS 422, RS 485. Interface/ports: 1 x serial - RS 232/422/485 - 25 pin D Sub (DB 25), 1 x network / power - Ethernet 10base T/100Base TX - RJ 45. Connectivity technology: Wired. Status indicators: Link activity, power, status. Standard memory: 256 KB, Memory technology: SRAM, Flash Memory installed (Max): 2 MB. Operating temperature: 41 - 122 deg F. Input voltage: 30 VDC. Software selectable RS232, RS422 or RS485, flow control, DHCP support, ARP support, half duplex mode, full duplex mode. Network protocols: TCP/IP, UDP/IP, ICMP/IP, Remote management protocol: SNMP, Telnet, HTTP. Certificate and standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, UL, CSA, FCC, CE, TUV, C Tick, C Tick. Weight: 7.05 oz. Warranty: 2 years limited. This external device server with PoE from Latronix allows you to quickly network, monitor, control, and access any device with a serial port over an Ethernet connection. Featuring one port and a small size, this device allows you to replace your dedicated PCs and modem lines with a product that will outperform, and it is wall mountable so it won't get in the way. Install this Latronix device server to control your network equipment with ease.

The UDS1100 Device Server with PoE enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet.With the UDS1100, virtually any piece of equipment can be added to an Ethernet network in a matter of minutes. This single-port device server is a quick, simple and inexpensive way to bring the advantages of remote management to equipment not currently connected to a network. Product Type: Device Server Product Type: Device Server Input Voltage: 30 V DC Manufacturer Part Number: UD11000P0-01 Limited Warranty: 2 Year Standard Memory: 256 KB Weight (Approximate): 7.05 oz Form Factor: Wall Mountable Form Factor: Wall Mountable Manufacturer: Lantronix, Inc Product Model: UDS1100 Product Name: UDS1100 Device Server with PoE Power Consumption: 1.50 W Processor Speed: 48 MHz Brand Name: Lantronix Product Series: UDS Brand Name: Lantronix Memory Technology: SRAM Height: 3.5 Width: 2.5 Depth: 0.9 Ethernet Technology: Fast Ethernet Number of Network (RJ-45) Ports: 1 Serial Port: Yes Product Family: UDS Number of Serial Ports: 1 Processor Manufacturer: Lantronix Ethernet Technology: Fast Ethernet Number of Network (RJ-45) Ports: 1 Network (RJ-45): Yes Serial Port: Yes Number of Serial Ports: 1

Lantronix UD11000P0-01 UDS1100 POWER OVER ETHERNET SINGLE PORT

Lantronix UD11000P0-01 UDS1100 POWER OVER ETHERNET SINGLE PORT

<p>The UDS1100 Device Server with PoE enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet.With the UDS1100, virtually any piece of equipment can be added to an Ethernet network in a matter of minutes! This single-port device server is a quick, simple and inexpensive way to bring the advantages of remote management to equipment not currently connected to a network.</p>
