2940404SS - Dixon - 2940404SS | Wilson Company

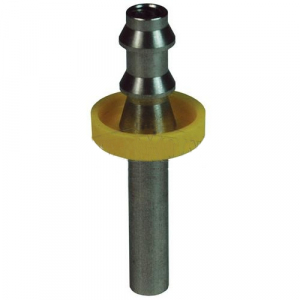

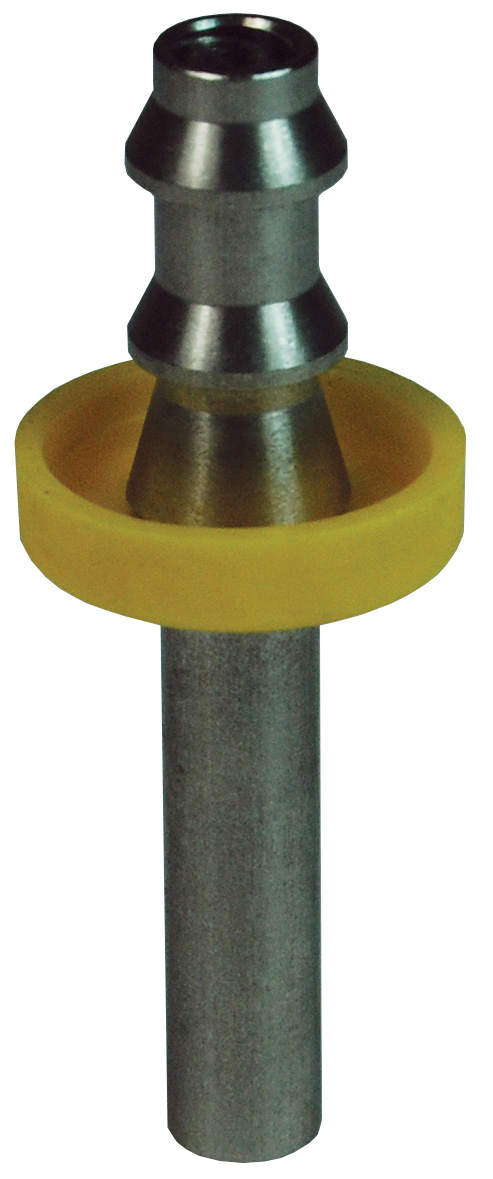

<p><strong>2940404SS, 1/4" Hose ID Rigid Tube x Push-on Hose Barb</p></strong><strong>Barb Specifications</strong><ul><li>Tube Length:1.06"</li><li>Number of Barbs: 2</li><li>Barb Length:.77"</li></ul><strong>Installation</strong><ul><li><strong>Assembly Instructions:</strong><ul><li>1. Trim hose end with smooth square cut.</li><li>2. Lubricate either push-on fitting, hose or both.</li><li>3. Insert push-on fitting into hose until first barb is in hose.</li><li>4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.</li></ul></li></ul><strong>Instructions</strong><ul><li><strong>Disassembly instructions:</strong><ul><li>1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.</li><li>2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.</li></ul></li></ul><strong>Note</strong><ul><li>No hose clamps or ferrules are needed</li></ul><strong>Safety Notes</strong><ul><li>Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.</li><li>Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.</li></ul>
