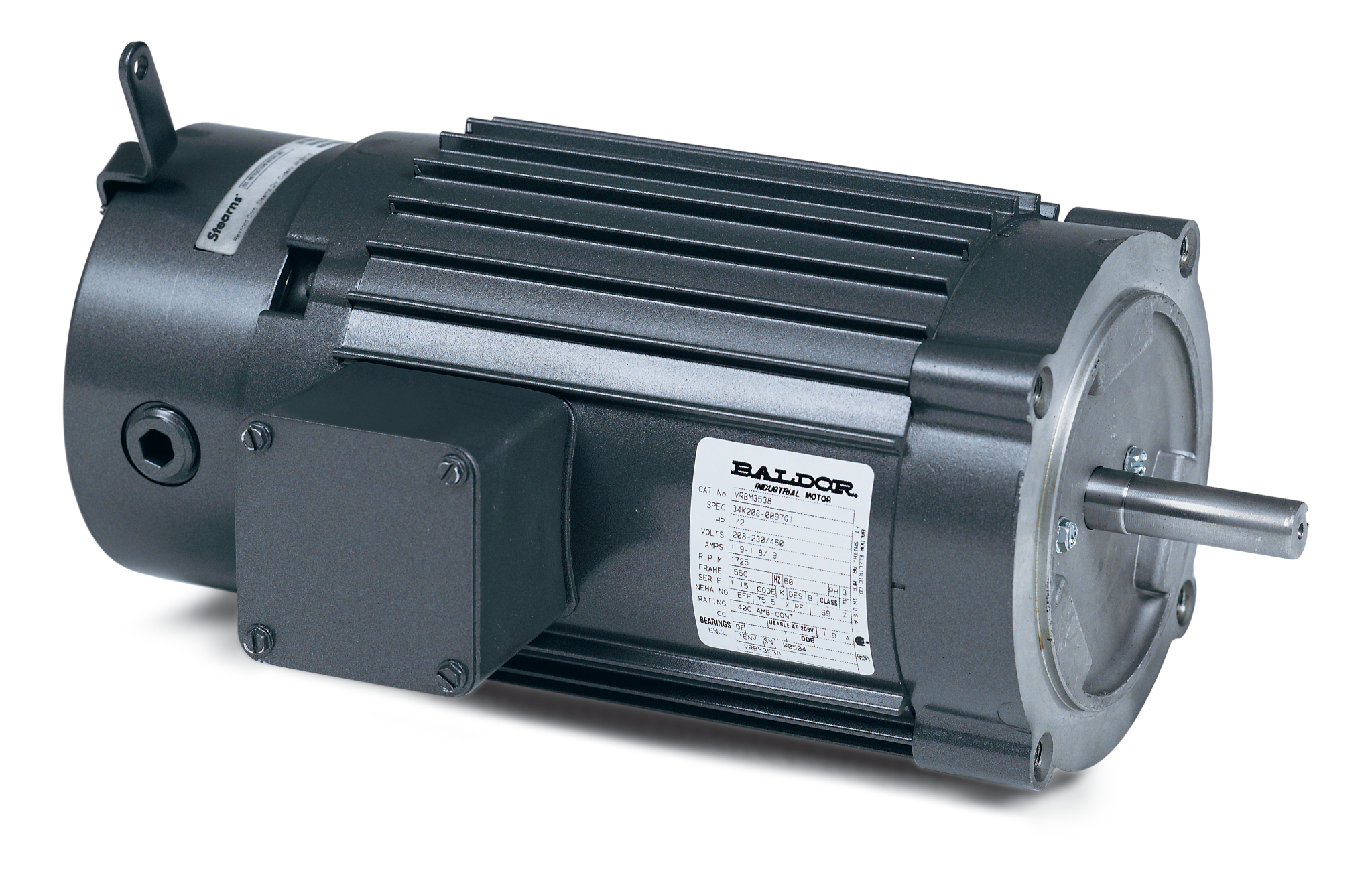

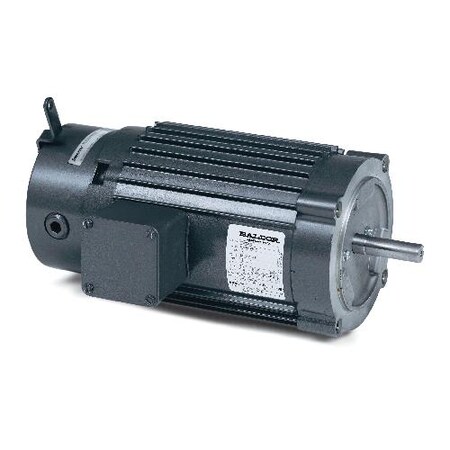

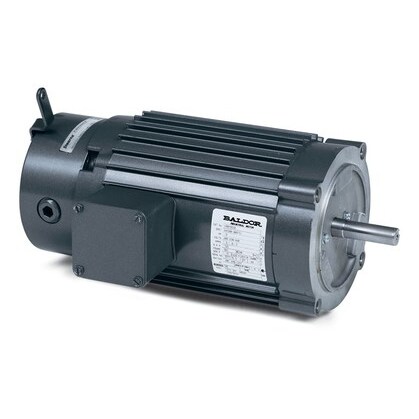

Baldor VRBM3558T Three Phase Unit Handling High Cycle Brakemotor

THIS LISTING IS FOR (1) PIECE: VRBM3558T 2HP,1700RPM,3PH,60HZ,145TC,7536M,TEFC,F1 ABB - BALDOR UPC- 781568405215 - FACTORY NEW!

Baldor Electric, VRBM3558T, 2HP, 1700RPM, 3PH, 460V;230V, 145TC Frame, C-Face Flange, Footless, TEFC, High Cycle Brake Motor

Baldor VRBM3558T2HP 1725RPM 3PH 60HZ 145TC BRAKE7535M

<p><b>Specifications: </b><ul><li>Motor Category:-High Cycle Brake Motor </li><li> Motor Phase:-3 ph </li><li> Motor Horsepower:-2.00 hp, 2 hp </li><li> Synchronous RPM:-1800 rpm </li><li> Motor Supply Voltage:-230/460 V </li><li> Frame Size:-145TC </li><li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) </li><li> Frequency Rating:-60 Hz </li><li> Duty / Condition Type:-Continuous Duty </li><li> Mounting Type:-Footless/C-Face Flange </li><li> Full Load Current:-2.90 A </li><li> Full Load Efficiency:-84.00 % </li><li> Amps @ Voltage:-2.9 A @ 460 V; 5.8 A @ 230 V </li><li> Volts @ Frequency:-230 V @ 60 Hz; 460 V @ 60 Hz </li><li> Shaft Diameter:-0.88 in </li><li> Overall Length (C-Dimension):-17.68 in </li><li> Service Factor:-1.15 </li><li> Frame Material:-Aluminum </li><li> Insulation Class:-F </li><li> Standards Met:-UR, CSA </li><li> Harmonization Code:-8501.52.4000 </li><li> Weight:-70.00 lbs </li><li> Applications:-Unit and baggage handling, conveyors and other applications requiring frequent starting and stopping. </li><li> Additional Details:-UL/CSA recognized and CE certified. Low inertia high efficiency motor with cast aluminum footless frame for increased thermal dissipation specific to this application. A DC brake with integral rectifier provides for faster action than traditional spring-set brakes. Not suitable for use with inverters; Dodge brake on 1.5 thru 3 Hp has TEFC enclosure. </li></ul></p>
