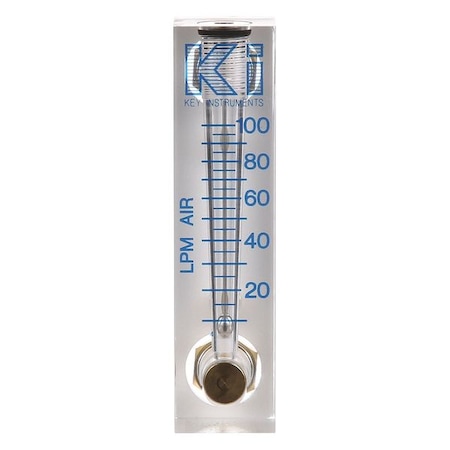

Mechanical Flowmeter, Mechanical Flowmeter, For Pipe Size 1/8 in to 1 in, Connection Size 1/8 in, Connection Type FNPT, Fluid Temp. Range 40 Degrees to 150 Degrees F, Wetted Materials Brass, Buna, Clear Acrylic, Stainless Steel, Max. Pressure 100 psi, Flow Range 11 to 100 lpm, Max. Viscosity 79.8 SUS, Flow Material Air, Variable Area, Width 1 in, Height 4 in, Housing Material Acrylic, Fitting Brass, Seal Material Buna N

'Flowmeter, Variable Area, Max. Pressure 100 PSI, Connection Size 1/8 In FNPT, Acrylic Housing Material, Buna-n Seal Material, Brass Fitting, Accuracy +/-5.0 , Flow Material Air, Flow Range 10 to 100 LPM, Max. Temp. 150 F, Width 1 In., Height 4 In., Includes Flowmeter Only'

<p>Brooks Instrument 2510 Series Acrylic Purge Meters are precision-machined acrylic flow meters for liquids and gases [specified by the part number and description], with direct reading air or water scales and are available in either English or metric scales. These variable area flow meters are made from a single piece of high strength, crystal clear acrylic with easy to read scales. They come standard with a stable easy view float.</p> <ul> <li>Treaded Inserts for panel mounting type configurations </li> <li>Easy disassembly/assembly for maintenance</li> <li>rod-guided float</li> <li>Large Scales for quick reference</li> </ul>
