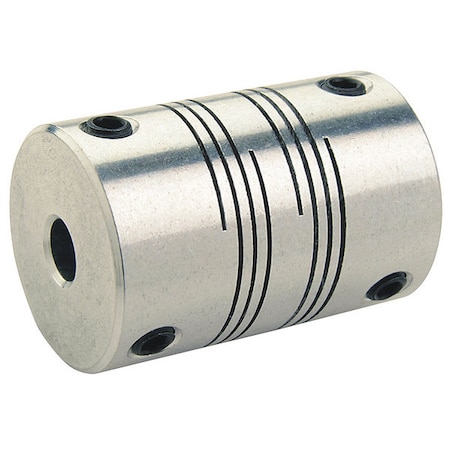

Beam Coupling,6 Beam,5/16 In.x6mm,Aluminum

Ruland . FSR16-5/16"-6MM-A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRuland
Attribute000.313 in x 6 mm
Attribute011.000 in (25.4 mm)
Attribute021.500 in (38.1 mm)
Attribute03Metric
Attribute04M5
Attribute056000 RPM
Attribute06Beam Coupling,6 Beam,5/16"x6mm,Aluminum
Attribute070.093 Deg/lb-in (0.82 Deg/Nm)
Attribute083 deg
Attribute09-40?F to 225?F (-40?C to 107?C)
Attribute10Set Screw
Attribute110.015 in (0.38 mm)
Attribute12Aluminum
Attribute130.720 in
Attribute14+0.0000 in / -0.0005 in (+0.000 mm / -0.013 mm)
Attribute15Alloy Steel
Attribute1616.5 lb-in (1.86 Nm)
Attribute17Inch/Metric
Attribute1833 lb-in (3.73 Nm)
Attribute190.010 in (0.25 mm)
Attribute200.0139 lb-in<sup>2</sup>, 4.120 x10<sup>-6</sup> kg-m<sup>2</sup>
Attribute218.25 lb-in (0.93 Nm)
Attribute224 ea
Attribute234 Nm
AttributeKey00Bore Dia.
AttributeKey01Outside Dia.
AttributeKey02Overall Length
AttributeKey03Fastening Dimensions
AttributeKey04Set Screw Size
AttributeKey05Max. RPM
AttributeKey06Item
AttributeKey07Torsional Stiffness (Deg./In.-Lbs.)
AttributeKey08Max. Angular Misalignment
AttributeKey09Max. Temp. Range (F)
AttributeKey10Style
AttributeKey11Max. Parallel Misalignment (In.)
AttributeKey12Material
AttributeKey13B1 Shaft Penetration
AttributeKey14Recommended Shaft Tolerance
AttributeKey15Screw Material
AttributeKey16Dynamic Torque Non-Reversing
AttributeKey17Measurement Type
AttributeKey18Static Torque
AttributeKey19Axial Motion
AttributeKey20Moment of Inertia
AttributeKey21Dynamic Torque Reversing
AttributeKey22Number of Screws
AttributeKey23Screw Seating Torque
CategoryId, CategoryIdL37481
CategoryIdL131
CategoryIdL24596
CategoryL1Power Transmission
CategoryL2Bearings, V-belts & Power Transmission Equipment
CategoryL3Couplings, Collars, & Adapters
CategoryL4Motion Control Couplings
DimensionUnitinch
GraingerSku, MPNFSR16-5/16"-6MM-A
UPC634529194003
UnitOfMeasureEA
Weight0.36
WeightUnitlbs
cali_prop65_messageWARNING: This product can expose you to chemicals including Ethylene thiourea, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario, length7
countryOfOriginUS
height, moq, multiple, tierMinQty11
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG7092449
snippetBeam Coupling,6 Beam,5/16 In.x6mm,Aluminum
tierPrice147.05
urlhttps://www.zoro.com/ruland-motion-control-coupling-6-beam-516x6mm-aluminum-od-1000-l-1500-fsr16-516-6mm-a/i/G7092449/
width4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG7092449111 @ $47.05
cbtcompany.comFSR16-5/16"-6MM-A11
Digi-Key1360488411011 @ $75.09
