Service Caster

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name, Brand, Label, Publisher, StudioService Caster
Attribute005
Attribute012
Attribute026-1/2"
Attribute03Top Plate
Attribute04-40 degrees F to 180 degrees F
Attribute05Rigid caster
Attribute0695A
Attribute07Polyurethane on Cast Iron
Attribute081000
Attribute094-1/2" x 6-1/4"
Attribute10, Model, ModelNumber, Model_numberSeries#35
Attribute112-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Attribute12Bright Zinc Plated Finish
Attribute13, countryOfOriginUnited States
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02, height_AttribMounting Height
AttributeKey03Caster Mounting Type
AttributeKey04Caster Temp. Range
AttributeKey05Type
AttributeKey06Durometer
AttributeKey07Material
AttributeKey08Capacity (Lb.)
AttributeKey09Plate Size
AttributeKey10Series
AttributeKey11Plate Caster Bolt Hole Pattern
AttributeKey12Finish
AttributeKey13Country of Origin (subject to change)
DimensionUnitinch
WeightUnitlbs
diameter, length5.0
extendedLead26
extendedQty-2
height6.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, Keyword, PartNumber, Part_numberSCC-35R520-PUR-RS
qtyInStock0
tierPrice161.8
urlhttps://www.zoro.com/service-caster-5-inch-heavy-duty-red-poly-on-cast-iron-rigid-caster-with-roller-bearing-scc-scc-35r520-pur-rs/i/G905436932/
width2.0
ASINB08WG9P69X B08XN3CQ5W
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08WG9P69X
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #35 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on. Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
ClassificationId511228
ColorRigid - No Brake - Red
Currency, CurrencyCodeUSD
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0011586585270 011586585270
FetchTime1697528076 1704398920
Height, Width1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleHeavy Duty Large Top Plate Polyurethane on Cast Iron Swivel Caster w/5" x 2" Red Wheel - 1000 lbs Capacity/Caster - Service Caster Brand
Item_type_keywordplate-casters
Linkhttps://m.media-amazon.com/images/I/31qTbcFnxoL._SL75_.jpg https://m.media-amazon.com/images/I/31qTbcFnxoL.jpg https://m.media-amazon.com/images/I/4165hKEqk+L._SL75_.jpg https://m.media-amazon.com/images/I/4165hKEqk+L.jpg https://m.media-amazon.com/images/I/41Z+5XPnE4L.jpg https://m.media-amazon.com/images/I/41jYgCecpXL._SL75_.jpg https://m.media-amazon.com/images/I/41jYgCecpXL.jpg https://m.media-amazon.com/images/I/511x+2DTuUL._SL75_.jpg https://m.media-amazon.com/images/I/511x+2DTuUL.jpg https://m.media-amazon.com/images/I/51QBfzgDtbL.jpg https://m.media-amazon.com/images/I/51rmCHzuBkL._SL75_.jpg https://m.media-amazon.com/images/I/51rmCHzuBkL.jpg https://m.media-amazon.com/images/I/51wUySWL3IL.jpg https://m.media-amazon.com/images/I/61s7LcDvY-L.jpg https://m.media-amazon.com/images/I/71igxuTctcL.jpg
List_price0.0
Marketplace_idATVPDKIKX0DER
Material, MaterialTypePolyurethane Tread on Semi Steel Cast Iron Core
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB08XN3CQ5W
ProductCategoryId383663011 511228 biss_display_on_website
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for one (1) Service Caster Series #35 rigid caster with a 5" diameter by 2" wide glass filled polyurethane on cast iron wheel capable of supporting 1000 lbs./caster. When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 35 polyurethane on metal wheel casters. The Service Caster Series #35 is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.
Product_site_launch_date2021-02-25T15:38:40.508Z
Rank1438231 562981 6718
Size5" Wheel 5.0
Supplier_declared_dg_hz_regulationnot_applicable
TypeVARIATION ean upc
URLhttps://m.media-amazon.com/images/I/31qTbcFnxoL._SL75_.jpg
Unitinches pounds
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website
Website_shipping_weight6.9

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG905436932111 @ $61.80

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

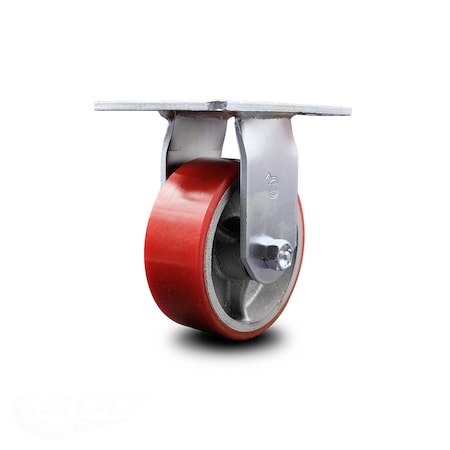

Heavy Duty Large Top Plate Polyurethane on Cast Iron Swivel Caster w/5" x 2" Red Wheel - 1000 lbs Capacity/Caster - Service Caster Brand
Brand: Service Caster
Listing is for one (1) Service Caster Series #35 rigid caster with a 5" diameter by 2" wide glass filled polyurethane on cast iron wheel capable of supporting 1000 lbs./caster. When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 35 polyurethane on metal wheel casters. The Service Caster Series #35 is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.
Details
  • These Service Caster Series #35 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#35
Part numberSCC-35R520-PUR-RS
Items per pack1
LabelService Caster
ManufacturerService Caster
